OPTIBELT POWER TRANSMISSION

AT10 (width 25 mm)

ชื่อรุ่น :

AT10 (width 25 mm)

แบรนด์

Optibelt

รายละเอียด :

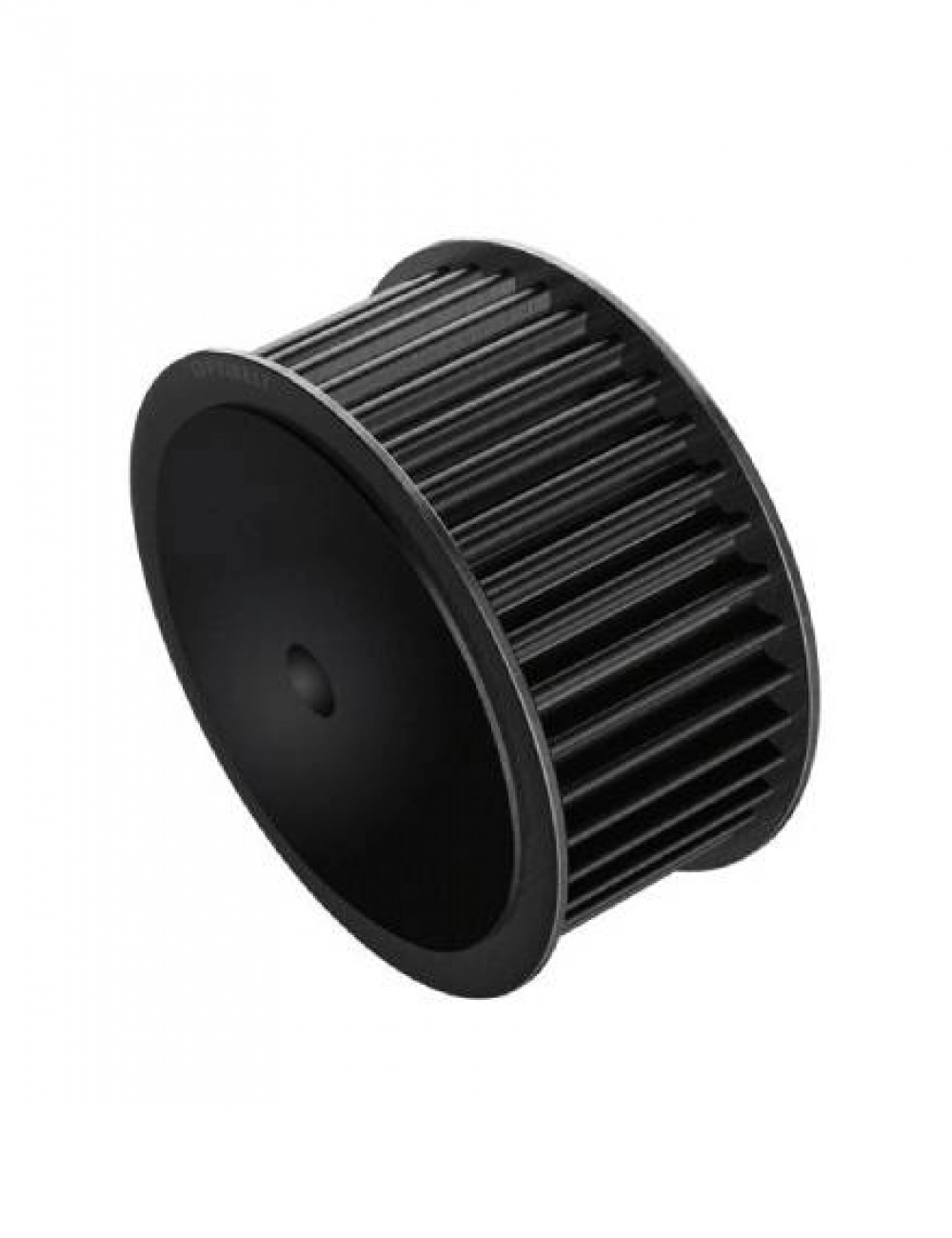

optibelt ZRS METRIC ( AT10 ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับรูเพลามาตราฐาน - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 47.75 - 190.98 มม. - ระยะ Pitch 10 mm - ความกว้างของสายพาน = 25 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
40 AT10 / 15-2
Model description

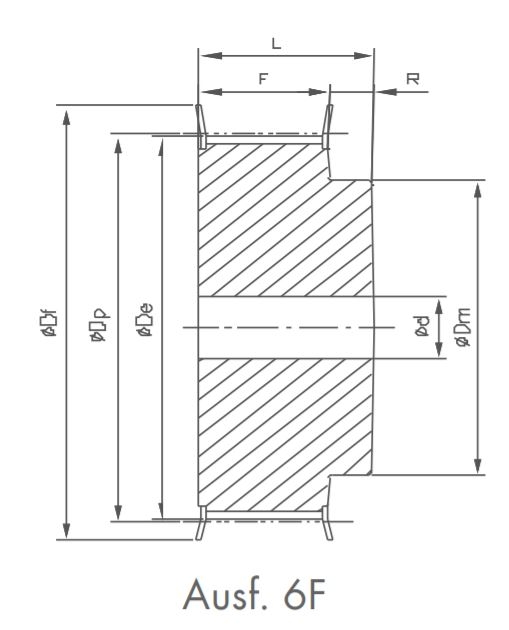

Number of teeth = 15 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 18 mm DIMENSIONS : Dp = 47.75 mm , De = 45.90 mm, Df = 51 mm, F = 30 mm, Dm = 31 mm
Price
Call
Model
40 AT10 / 16-2
Model description
Number of teeth = 16 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 20 mm DIMENSIONS : Dp = 50.93 mm , De = 49.05 mm, Df = 54 mm, F = 30 mm, Dm = 35 mm
Price
Call
Model
40 AT10 / 18-2
Model description
Number of teeth = 18 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 22 mm DIMENSIONS : Dp = 57.29 mm , De = 55.45 mm, Df = 60 mm, F = 30 mm, Dm = 40 mm
Price
Call
Model
40 AT10 / 19-2
Model description
Number of teeth = 19 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 22 mm DIMENSIONS : Dp = 60.48 mm , De = 58.60 mm, Df = 66.5 mm, F = 30 mm, Dm = 44 mm
Price
Call
Model
40 AT10 / 20-2
Model description
Number of teeth = 20 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 24 mm DIMENSIONS : Dp = 63.66 mm , De = 61.80 mm, Df = 66.5 mm, F = 30 mm, Dm = 46 mm
Price
Call
Model
40 AT10 / 22-2
Model description
Number of teeth = 22 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 28 mm DIMENSIONS : Dp = 70.03 mm , De = 68.15 mm, Df = 75 mm, F = 30 mm, Dm = 52 mm
Price
Call
Model
40 AT10 / 24-2
Model description
Number of teeth = 24 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 76.39 mm , De = 74.55 mm, Df = 83 mm, F = 30 mm, Dm = 58 mm
Price
Call
Model
40 AT10 / 25-2
Model description
Number of teeth = 25 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 79.58 mm , De = 77.70 mm, Df = 83 mm, F = 30 mm, Dm = 60 mm
Price
Call
Model
40 AT10 / 26-2
Model description
Number of teeth = 26 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 82.76 mm , De = 80.90 mm, Df = 87 mm, F = 30 mm, Dm = 60 mm
Price
Call
Model
40 AT10 / 27-2
Model description
Number of teeth = 27 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 85.95 mm , De = 84.10 mm, Df = 91 mm, F = 30 mm, Dm = 60 mm
Price
Call
Model
40 AT10 / 28-2
Model description
Number of teeth = 28 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 89.13 mm , De = 87.25 mm, Df = 93 mm, F = 30 mm, Dm = 60 mm
Price
Call
Model
40 AT10 / 30-2
Model description
Number of teeth = 30 , Type = 6F Pilot bore = 8 mm , Finished bore hole dmax. = 30 mm DIMENSIONS : Dp = 95.49 mm , De = 93.65 mm, Df = 97 mm, F = 30 mm, Dm = 60 mm
Price
Call
Model
40 AT10 / 32-2
Model description
Number of teeth = 32 , Type = 6F Pilot bore = 10 mm , Finished bore hole dmax. = 32 mm DIMENSIONS : Dp = 101.86 mm , De = 100.0 mm, Df = 106 mm, F = 30 mm, Dm = 65 mm
Price
Call
Model
40 AT10 / 36-2
Model description
Number of teeth = 36 , Type = 6F Pilot bore = 10 mm , Finished bore hole dmax. = 35 mm DIMENSIONS : Dp = 114.59 mm , De = 112.75 mm, Df = 119 mm, F = 30 mm, Dm = 70 mm
Price
Call
Model
40 AT10 / 40-2
Model description
Number of teeth = 40 , Type = 6F Pilot bore = 10 mm , Finished bore hole dmax. = 40 mm DIMENSIONS : Dp = 127.32 mm , De = 125.45 mm, Df = 131 mm, F = 30 mm, Dm = 80 mm
Price
Call
Model
40 AT10 / 44-0
Model description
Number of teeth = 44 , Type = 6 Pilot bore = 10 mm , Finished bore hole dmax. = 46 mm DIMENSIONS : Dp = 140.06 mm , De = 138.20 mm, Df = - mm, F = 30 mm, Dm = 88 mm
Price
Call
Model
40 AT10 / 48-0
Model description
Number of teeth = 48 , Type = 6 Pilot bore = 16 mm , Finished bore hole dmax. = 48 mm DIMENSIONS : Dp = 152.78 mm , De = 150.95 mm, Df = - mm, F = 30 mm, Dm = 95 mm
Price
Call
Model
40 AT10 / 60-0
Model description
Number of teeth = 60 , Type = 6 Pilot bore = 16 mm , Finished bore hole dmax. = 60 mm DIMENSIONS : Dp = 190.98 mm , De = 189.10 mm, Df = - mm, F = 30 mm, Dm = 110 mm
Price
Call
