หมวดสินค้า

สายพาน มู่เล่ย์
OPTIBELT POWER TRANSMISSION

8MDC TB

ชื่อรุ่น :

8MDC TB

แบรนด์

Optibelt

รายละเอียด :

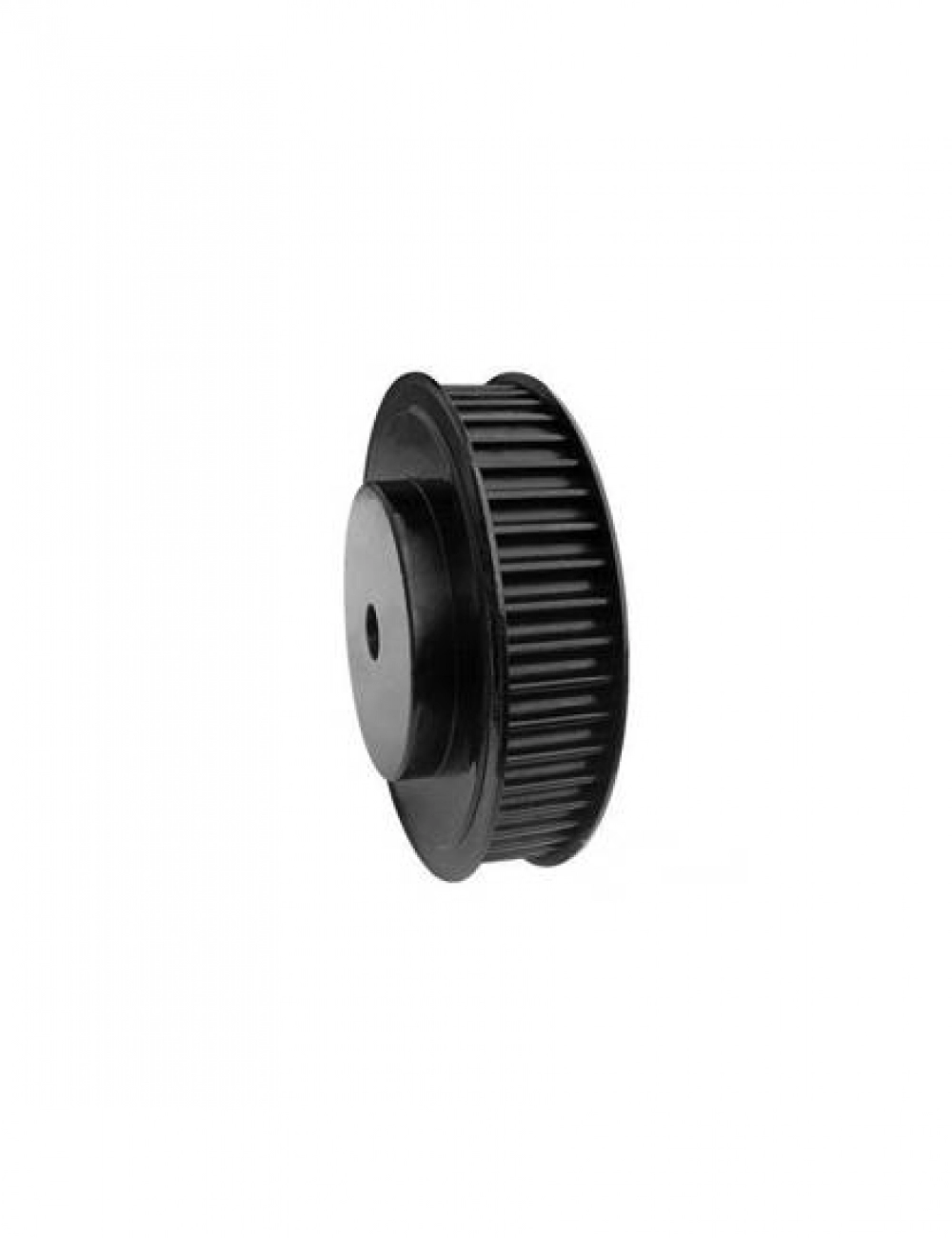

optibelt ZRS DELTA CHAIN ( 8MDC ) มู่เล่ย์สายพานไทม์มิ่ง สำหรับล็อคเพลาด้วยเทอเปอร์บู๊ธ - ขนาดเส้นผ่าศูนย์กลางของมู่เล่ย์ มีตั้งแต่ 63.66 - 488.92 มม.

ติดต่อเราได้ที่ :

Model

Model description

Price

Model
8MDC 12 TB 25
Model description
Number of teeth = 25 , Type = 2F Taper bushing = 1108 , Bore max. = 10-28 mm DIMENSIONS : dd = 63.66 mm , DB = 70.0 mm, B= 22.0 mm, N= 22.0 mm
Price
Call
Model
8MDC 12 TB 28
Model description
Number of teeth = 28 , Type = 2F Taper bushing = 1108 , Bore max. = 10-28 mm DIMENSIONS : dd = 71.30 mm , DB = 79.0 mm, B= 22.0 mm, N= 22.0 mm
Price
Call
Model
8MDC 12 TB 30
Model description
Number of teeth = 30 , Type = 2F Taper bushing = 1210 , Bore max. = 11-32 mm DIMENSIONS : dd = 76.39 mm , DB = 86.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 32
Model description
Number of teeth = 32 , Type = 2F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 81.49 mm , DB = 90.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 34
Model description
Number of teeth = 34 , Type = 2F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 86.58 mm , DB = 95.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 36
Model description
Number of teeth = 36 , Type = 2F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 91.67 mm , DB = 98.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 38
Model description
Number of teeth = 38 , Type = 2F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 96.77 mm , DB = 106.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 40
Model description
Number of teeth = 40 , Type = 2F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 101.86 mm , DB = 111.0 mm, B= 25.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 12 TB 45
Model description
Number of teeth = 45 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 114.59 mm , DB = 119.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 48
Model description
Number of teeth = 48 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 122.23 mm , DB = 135.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 50
Model description
Number of teeth = 50 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd =127.32 mm , DB = 135.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 56
Model description
Number of teeth = 56 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 142.60 mm , DB = 151.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 60
Model description
Number of teeth = 60 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 152.79 mm , DB = 159.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 64
Model description
Number of teeth = 64 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd =162.97 mm , DB = 168.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 75
Model description
Number of teeth = 75 , Type = 2 Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 190.99 mm , DB = - mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 80
Model description
Number of teeth = 80 , Type = 2 Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 203.72 mm , DB = - mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 12 TB 90
Model description
Number of teeth = 90 , Type = 2 Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 229.18 mm , DB = - mm, B= - mm, N= - mm
Price
Call
Model
8MDC 21 TB 25
Model description
Number of teeth = 25 , Type = 3F Taper bushing = 1108 , Bore max. = 10-28 mm DIMENSIONS : dd = 63.66 mm , DB = 70.0 mm, B= 30.0 mm, N= 22.0 mm
Price
Call
Model
8MDC 21 TB 28
Model description
Number of teeth = 21 , Type = 3F Taper bushing = 1210 , Bore max. = 11-32 mm DIMENSIONS : dd = 71.30 mm , DB = 79.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 30
Model description
Number of teeth = 30 , Type = 3F Taper bushing = 1210 , Bore max. = 11-32 mm DIMENSIONS : dd = 76.39 mm , DB = 86.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 32
Model description
Number of teeth = 32 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 81.49 mm , DB = 90.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 34
Model description
Number of teeth = 34 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 86.58 mm , DB = 91.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 36
Model description
Number of teeth = 36 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 91.67 mm , DB = 98.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 38
Model description
Number of teeth = 38 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 96.77 mm , DB = 106.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 40
Model description
Number of teeth = 40 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 101.86 mm , DB = 111.0 mm, B= 30.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 21 TB 45
Model description
Number of teeth = 45 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 114.59 mm , DB = 119.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 21 TB 48
Model description
Number of teeth = 48 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 122.23 mm , DB = 135 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 21 TB 50
Model description
Number of teeth = 50 , Type = 2F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 127.32 mm , DB = 135.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 21 TB 56
Model description
Number of teeth = 56 , Type = 2F Taper bushing = 2012 , Bore max. = 2F mm DIMENSIONS : dd = 142.60 mm , DB = 151.0 mm, B= 32.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 21 TB 60
Model description
Number of teeth = 60 , Type = 2F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 152.79 mm , DB = 159.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 64
Model description
Number of teeth = 64 , Type = 2F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 162.97 mm , DB = 168.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 75
Model description
Number of teeth = 75 , Type = 2 Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 190.99 mm , DB = - mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 80
Model description
Number of teeth = 80 , Type = 2 Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 203.72 mm , DB = - mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 90
Model description
Number of teeth = 90 , Type = 9 Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 229.18 mm , DB = - mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 112
Model description
Number of teeth = 112 , Type = 9 Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 285.21 mm , DB = - mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 21 TB 140
Model description
Number of teeth = 140 , Type = 10 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 356.51 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 28
Model description
Number of teeth = 28 , Type = 3F Taper bushing = 1210 , Bore max. = 11-32 mm DIMENSIONS : dd = 71.30 mm , DB = 79.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 30
Model description
Number of teeth = 30 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd =76.39 mm , DB = 86.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 32
Model description
Number of teeth = 32 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 81.89 mm , DB = 90.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 34
Model description
Number of teeth = 34 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 86.58 mm , DB = 95.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 36
Model description
Number of teeth = 36 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 91.67 mm , DB = 98.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 38
Model description
Number of teeth = 38 , Type = 3F Taper bushing = 1610 , Bore max. = 14-42 mm DIMENSIONS : dd = 96.77 mm , DB = 106.0 mm, B= 45.0 mm, N= 25.0 mm
Price
Call
Model
8MDC 36 TB 40
Model description
Number of teeth = 40 , Type = 3F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 101.86 mm , DB = 111.0 mm, B= 45.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 36 TB 45
Model description
Number of teeth = 45 , Type = 3F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 114.59 mm , DB = 120.0 mm, B= 45.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 36 TB 48
Model description
Number of teeth = 48 , Type = 3F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 122.23 mm , DB = 128.0 mm, B= 45.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 36 TB 50
Model description
Number of teeth = 50 , Type = 3F Taper bushing = 2012 , Bore max. = 14-50 mm DIMENSIONS : dd = 127.32 mm , DB = 128.0 mm, B= 45.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 36 TB 56
Model description
Number of teeth = 56 , Type = 3F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 142.60 mm , DB = 150.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 36 TB 60
Model description
Number of teeth = 60 , Type = 3F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 152.79 mm , DB = 158.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 36 TB 64
Model description
Number of teeth = 64 , Type = 3F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 162.97 mm , DB = 168.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 36 TB 75
Model description
Number of teeth = 75 , Type = 2 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 190.99 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 80
Model description
Number of teeth = 80 , Type = 2 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 203.72 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 90
Model description
Number of teeth = 90 , Type = 9 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 229.18 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 112
Model description
Number of teeth = 112 , Type = 9 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 285.21 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 140
Model description
Number of teeth = 140 , Type = 10 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 356.51 mm , DB = - mm, B= 51.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 36 TB 168
Model description
Number of teeth = 168 , Type = 10 Taper bushing = 3525 , Bore max. = 35-90 mm DIMENSIONS : dd = 427.81 mm , DB = - mm, B= 65.0 mm, N= 65.0 mm
Price
Call
Model
8MDC 36 TB 192
Model description
Number of teeth = 192 , Type = 10 Taper bushing = 3525 , Bore max. = 35-90 mm DIMENSIONS : dd = 488.92 mm , DB = - mm, B= 65.0 mm, N= 65.0 mm
Price
Call
Model
8MDC 62 TB 40
Model description
Number of teeth = 40 , Type = 3F Taper bushing = 2012 , Bore max. = 11-32 mm DIMENSIONS : dd = 101.86 mm , DB = 106.0 mm, B= 72.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 62 TB 45
Model description
Number of teeth = 45 , Type = 3F Taper bushing = 2012 , Bore max. = 11-32 mm DIMENSIONS : dd = 114.59 mm , DB = 120.0 mm, B= 72.0 mm, N= 32.0 mm
Price
Call
Model
8MDC 62 TB 48
Model description
Number of teeth = 48 , Type = 3F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 122.23 mm , DB = 128.0 mm, B= 72.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 62 TB 50
Model description
Number of teeth = 50 , Type = 3F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 127.32 mm , DB = 135.0 mm, B= 72.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 62 TB 56
Model description
Number of teeth = 56 , Type = 6F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 142.60 mm , DB = 149.0 mm, B=45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 62 TB 60
Model description
Number of teeth = 60 , Type = 6F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 152.79 mm , DB = 157.0 mm, B= 45.0 mm, N= 45.0mm
Price
Call
Model
8MDC 62 TB 64
Model description
Number of teeth = 64 , Type = 6F Taper bushing = 2517 , Bore max. = 16-65 mm DIMENSIONS : dd = 162.97 mm , DB = 168.0 mm, B= 45.0 mm, N= 45.0 mm
Price
Call
Model
8MDC 62 TB 75
Model description
Number of teeth = 75 , Type = 6 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 190.99 mm , DB = - mm, B= 72 mm, N= 51.0 mm
Price
Call
Model
8MDC 62 TB 80
Model description
Number of teeth = 80 , Type = 6 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 203.72 mm , DB = - mm, B= 72 mm, N= 51.0 mm
Price
Call
Model
8MDC 62 TB 90
Model description
Number of teeth = 90 , Type = 6 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 229.18 mm , DB =- mm, B= 72 mm, N= 51.0 mm
Price
Call
Model
8MDC 62 TB 112
Model description
Number of teeth = 112 , Type = 7 Taper bushing = 3020 , Bore max. = 25-75 mm DIMENSIONS : dd = 285.21 mm , DB = - mm, B= 72.0 mm, N= 51.0 mm
Price
Call
Model
8MDC 62 TB 140
Model description
Number of teeth = 140 , Type = 7 Taper bushing = 3525 , Bore max. = 35-90 mm DIMENSIONS : dd = 356.51 mm , DB = - mm, B= 72.0 mm, N= 65.0 mm
Price
Call
Model
8MDC 62 TB 168
Model description
Number of teeth = 168 , Type = 8 Taper bushing = 3525 , Bore max. = 35-90 mm DIMENSIONS : dd = 427.81 mm , DB = - mm, B= 72.0 mm, N= 65.0 mm
Price
Call
Model
8MDC 62 TB 192
Model description
Number of teeth = 192 , Type = 8 Taper bushing = 3525 , Bore max. = 35-90 mm DIMENSIONS : dd = 488.92 mm , DB = - mm, B= 72.0 mm, N= 65.0 mm
Price
Call
