PRODUCT
![]()
ชื่อรุ่น :
TB with metric bores
แบรนด์
Optibelt
รายละเอียด :

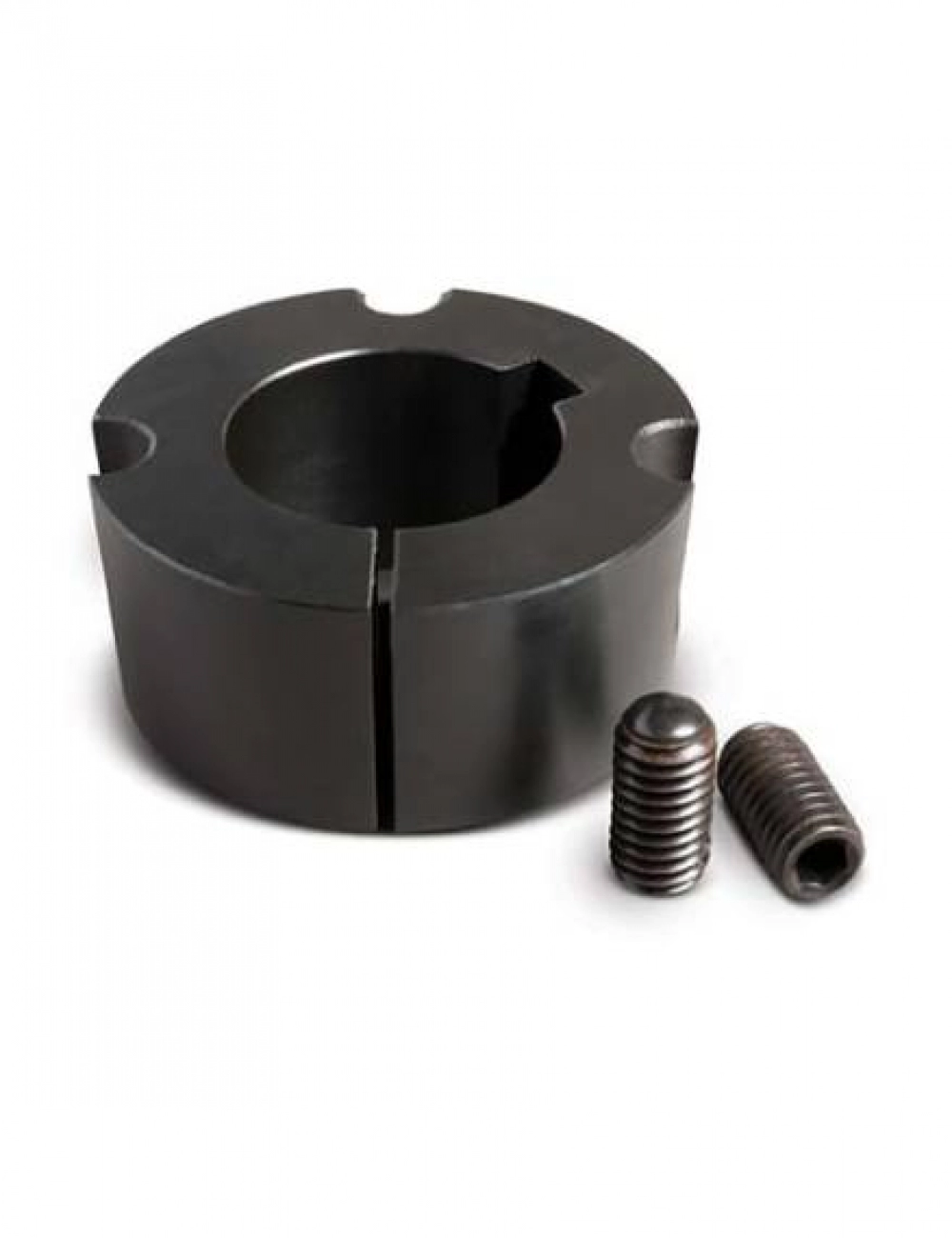

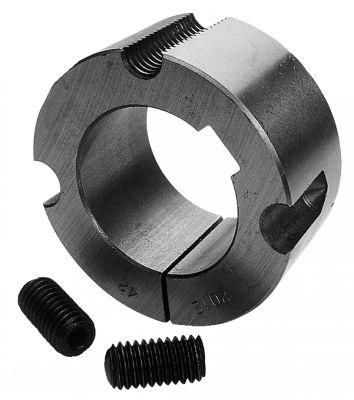

เทเปอร์บู๊ธสำหรับล็อคเพลา ใช้ร่วมกับมู่เล่ย์สายพานร่องวี และสายพานไทม์มิ่ง เพื่อความสะดวก และรวดเร็วในการติดตั้ง
- ขนาดเพลา มีตั้งแต่ 10 - 125 มม.
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TB 1008
Model description
Bore diameter d2 = 10 - 25 mm
Hexagon Socket screws = 1/4 x 1/2 in.
Bushing length = 22 mm
Weight at d2min (≈kg) = 0.12
Price
Model
TB 1108
Model description
Bore diameter d2 = 10 - 28 mm
Hexagon Socket screws = 1/4 x 1/2 in.
Bushing length = 22 mm
Weight at d2min (≈kg) = 0.12
Price
Model
TB 1210
Model description
Bore diameter d2 = 11-32 mm
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 25 mm
Weight at d2min (≈kg) = 0.28
Price
Model
TB 1610
Model description
Bore diameter d2 = 14-42 mm
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 25 mm
Weight at d2min (≈kg) = 0.41
Price
Model
TB 1615
Model description
Bore diameter d2 = 14-42 mm
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 38 mm
Weight at d2min (≈kg) = 0.60
Price
Model
TB 2012
Model description
Bore diameter d2 = 14-50 mm
Hexagon Socket screws = 7/16 x 7/8 in.
Bushing length = 32 mm
Weight at d2min (≈kg) = 0.75
Price
Model
TB 2517
Model description
Bore diameter d2 = 16-65 mm
Hexagon Socket screws = 1/2 x 1 in.
Bushing length = 45 mm
Weight at d2min (≈kg) = 1.06
Price
Model
TB 5020
Model description
Bore diameter d2 = 25-75 mm
Hexagon Socket screws = 5/8 x 1 1/4 in.
Bushing length = 51 mm
Weight at d2min (≈kg) = 2.50
Price
Model
TB 3030
Model description
Bore diameter d2 = 35-75 mm
Hexagon Socket screws = 5/8 x 1 1/4 in.
Bushing length = 76 mm
Weight at d2min (≈kg) = 3.75
Price
Model
TB 3525
Model description
Bore diameter d2 = 35-100 mm
Hexagon Socket screws = 1/2 x 1 1/2 in.
Bushing length = 64 mm
Weight at d2min (≈kg) = 3.90
Price
Model
TB 3535
Model description
Bore diameter d2 = 35-90 mm
Hexagon Socket screws = 1/2 x 1 1/2 in.
Bushing length = 89 mm
Weight at d2min (≈kg) = 5.13
Price
Model
TB 4030
Model description
Bore diameter d2 = 40-115 mm
Hexagon Socket screws = 5/8 x 1 3/4 in.
Bushing length = 76 mm
Weight at d2min (≈kg) = 5.76
Price
Model
TB 4040
Model description
Bore diameter d2 = 40-100 mm
Hexagon Socket screws = 5/8 x 1 3/4 in.
Bushing length = 102 mm
Weight at d2min (≈kg) = 7.68
Price
Model
TB 4535
Model description
Bore diameter d2 = 55-125 mm
Hexagon Socket screws = 3/4 x 2 in.
Bushing length = 89 mm
Weight at d2min (≈kg) = 11.00
Price
Model
TB 4545
Model description
Bore diameter d2 = 55-110 mm
Hexagon Socket screws = 3/4 x 2 in.
Bushing length = 114 mm
Weight at d2min (≈kg) = 12.70
Price
Model
TB 5040
Model description
Bore diameter d2 = 70-125 mm
Hexagon Socket screws = 7/8 x 2 1/4 in.
Bushing length = 102 mm
Weight at d2min (≈kg) = 12.14
Price
Model
TB 5050
Model description
Bore diameter d2 = 70-125 mm
Hexagon Socket screws = 7/8 x 2 1/4 in.
Bushing length = 127 mm
Weight at d2min (≈kg) = 15.17
Price
