PRODUCT
![]()
ชื่อรุ่น :
TB with inch bores
แบรนด์
Optibelt
รายละเอียด :

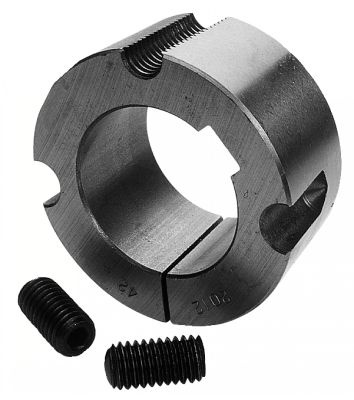

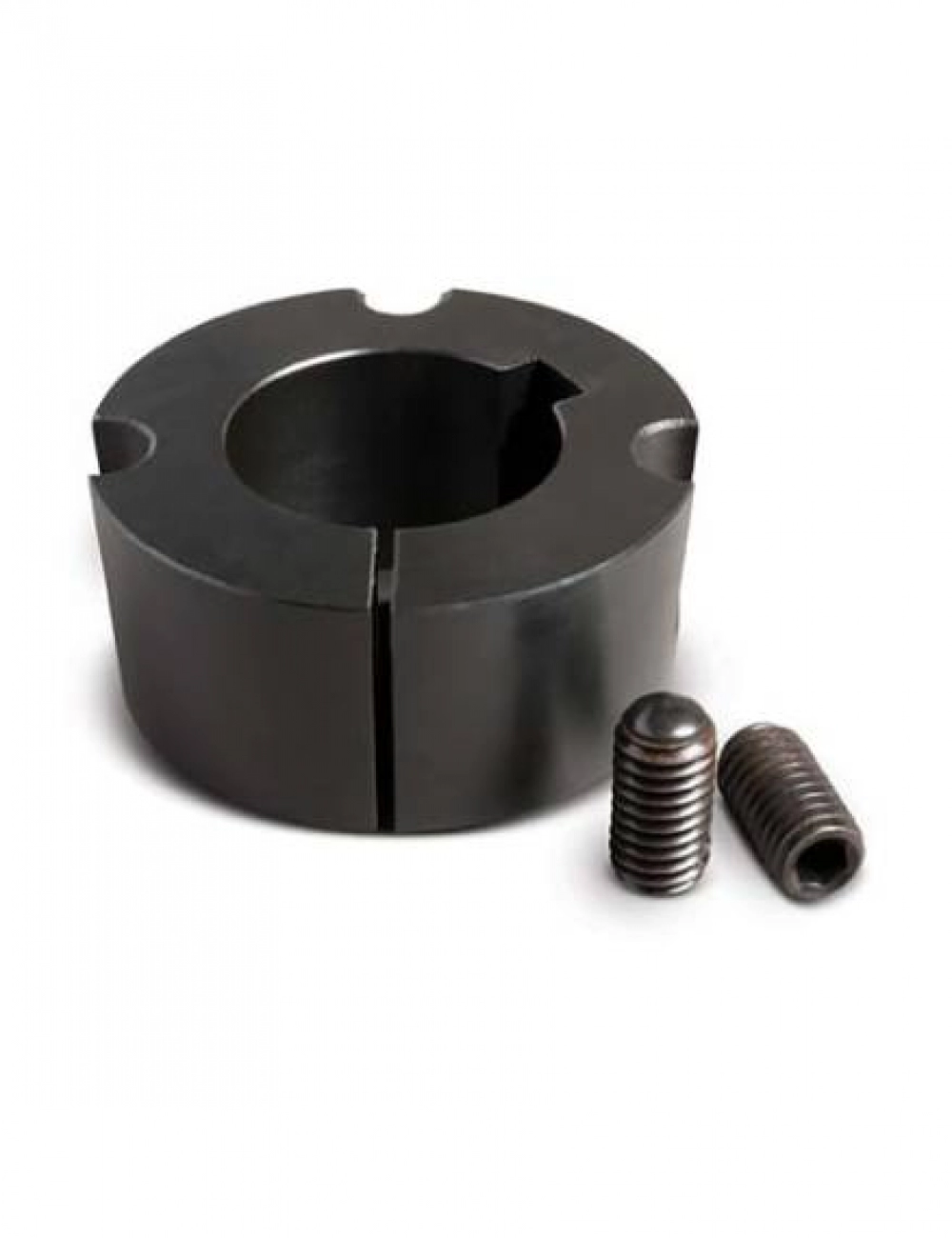

เทเปอร์บู๊ธสำหรับล็อคเพลา ใช้ร่วมกับมู่เล่ย์สายพานร่องวี และสายพานไทม์มิ่ง เพื่อความสะดวก และรวดเร็วในการติดตั้ง
- ขนาดเพลา มีตั้งแต่ 3/8 - 5. in.
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TB 1008
Model description
Bore diameter d2 = 3/8 - 1" in.
Hexagon Socket screws = 1/4 x 1/2 in.
Bushing length = 22 mm
Weight at d2min (≈kg) = 0.12
Price
Model
TB 1108
Model description
Bore diameter d2 = 3/8 - 1. 1/8 in.
Hexagon Socket screws = 1/4 x 1/2 in.
Bushing length = 22 mm
Weight at d2min (≈kg) = 0.16
Price
Model
TB 1210
Model description
Bore diameter d2 = 1/2-1 1/4 in.
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 25 mm
Weight at d2min (≈kg) = 0.28
Price
Model
TB 1610
Model description
Bore diameter d2 = 1/2-1 5/8 in.
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 25 mm
Weight at d2min (≈kg) = 0.41
Price
Model
TB 1615
Model description
Bore diameter d2 = 1/2-1 5/8 in.
Hexagon Socket screws = 3/8 x 5/8 in.
Bushing length = 38 mm
Weight at d2min (≈kg) = 0.60
Price
Model
TB 2012
Model description
Bore diameter d2 = 5/8 - 2 in.
Hexagon Socket screws = 7/16 x 7/8 in.
Bushing length = 32 mm
Weight at d2min (≈kg) = 0.75
Price
Model
TB 2517
Model description
Bore diameter d2 = 3/4 - 2 1/2 in.
Hexagon Socket screws = 1/2 x 1 in.
Bushing length = 45 mm
Weight at d2min (≈kg) = 1.06
Price
Model
TB 3020
Model description
Bore diameter d2 = 1 1/4 - 3 in.
Hexagon Socket screws = 5/8 x 1 1/4 in.
Bushing length = 51 mm
Weight at d2min (≈kg) = 2.50
Price
Model
TB 3030
Model description
Bore diameter d2 = 1 1/4 - 3 in.
Hexagon Socket screws = 5/8 x 1 1/4 in.
Bushing length = 76 mm
Weight at d2min (≈kg) = 3.75
Price
Model
TB 3525
Model description
Bore diameter d2 = 1 1/2 - 3 1/2 in.
Hexagon Socket screws = 1/2 x 1 1/2 in.
Bushing length = mm
Weight at d2min (≈kg) =
Price
Model
TB 3535
Model description
Bore diameter d2 = 1 1/2 - 3 1/2 in.
Hexagon Socket screws = 1/2 x 1 1/2 in.
Bushing length = mm
Weight at d2min (≈kg) =
Price
Model
TB 4040
Model description
Bore diameter d2 = 1 3/4 - 4 in.
Hexagon Socket screws = 5/8 x 1 1/4 in.
Bushing length = 102 mm
Weight at d2min (≈kg) = 7.68
Price
Model
TB 4545
Model description
Bore diameter d2 = 2 1/4 - 4 1/2 in.
Hexagon Socket screws = 3/4 x 2 in.
Bushing length = 114 mm
Weight at d2min (≈kg) = 12.70
Price
Model
TB 5050
Model description
Bore diameter d2 = 3 - 5 in.
Hexagon Socket screws = 7/8 x 2 1/4 in.
Bushing length = 127 mm
Weight at d2min (≈kg) = 15.17
Price
