PRODUCT
![]()
ชื่อรุ่น :
Synchronous motor B5 - 8 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
HC-80M1-8
Model description
Rated output = 0.18 kW
Power factor = 0.61
Rated torque = 2.8 Nm

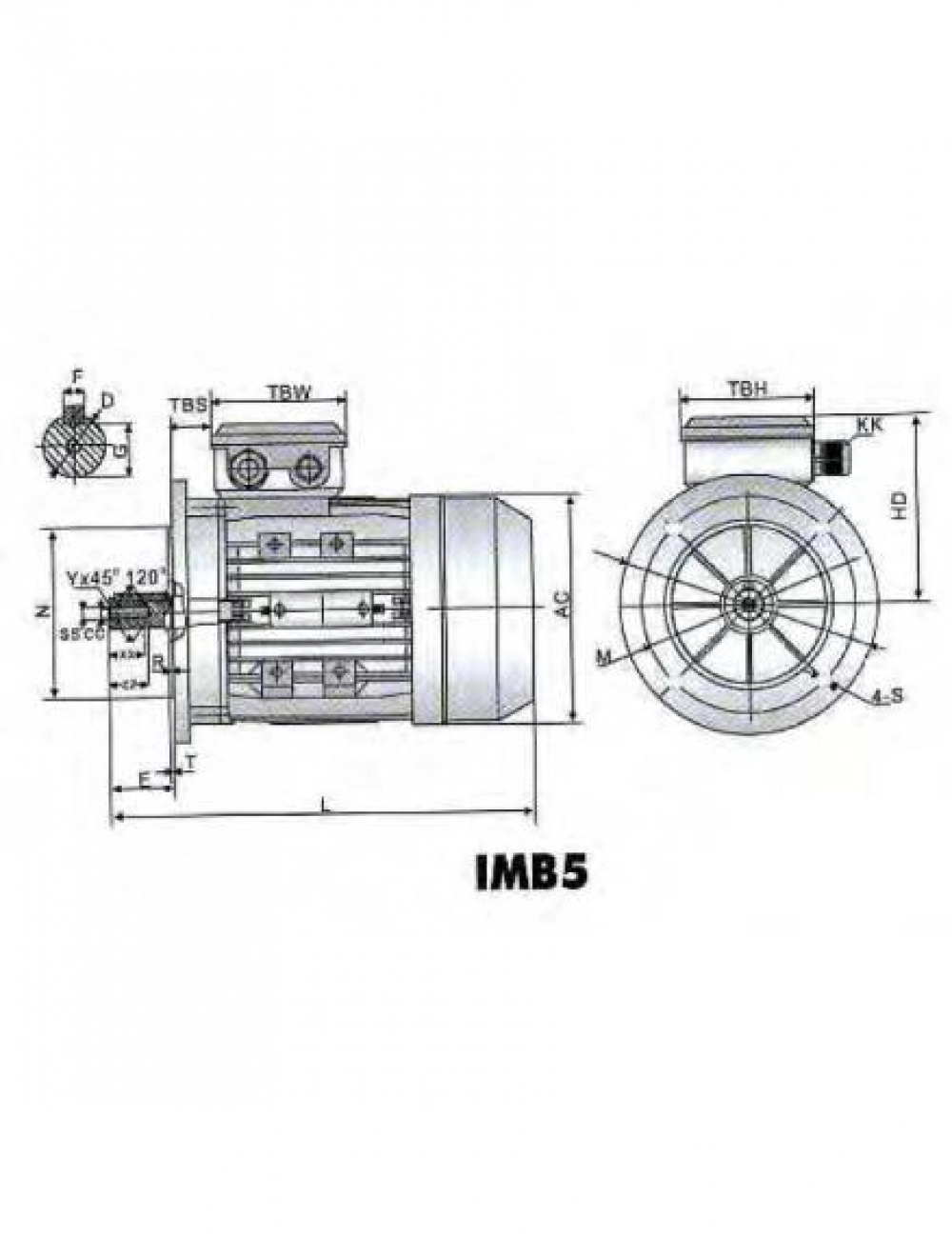

Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-80M2-8
Model description
Rated output = 0.25 kW
Power factor = 0.61
Rated torque = 3.7 Nm
Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-90S-8
Model description
Rated output = 0.37 kW
Power factor = 0.61
Rated torque = 5.4 Nm
Dimensions : AC = 190 mm , AD = 165 mm , D = 24 mm , L = 345 mm ,P = 200 mm
Price
Model
HC-90L-8
Model description
Rated output = 0.55 kW
Power factor = 0.61
Rated torque = 8 Nm
Dimensions : AC = 190 mm , AD = 165 mm , D = 24 mm , L = 345 mm ,P = 200 mm
Price
Model
HC-100L1-8
Model description
Rated output = 0.75 kW
Power factor = 0.67
Rated torque = 10.4 Nm
Dimensions : AC = 215 mm , AD = 170 mm , D = 28 mm , L = 385 mm ,P = 250 mm
Price
Model
HC-100L2-8
Model description
Rated output = 1.1 kW
Power factor = 0.69
Rated torque = 15.2 Nm
Dimensions : AC = 215 mm , AD = 170 mm , D = 28 mm , L = 385 mm ,P = 250 mm
Price
Model
HC-112M-8
Model description
Rated output = 1.5 kW
Power factor = 0.7
Rated torque = 20.8 Nm
Dimensions : AC = 236 mm , AD = 195 mm , D = 28 mm , L = 410 mm ,P = 250 mm
Price
Model
HC-132S-8
Model description
Rated output = 2.2 kW
Power factor = 0.71
Rated torque = 29.6 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 480 mm ,P = 300 mm
Price
Model
HC-132M-8
Model description
Rated output = 3 kW
Power factor = 0.73
Rated torque = 40.4 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 520 mm ,P = 300 mm
Price
Model
HC-160M1-8
Model description
Rated output = 4 kW
Power factor = 0.73
Rated torque = 53.1 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 610 mm ,P = 350 mm
Price
Model
HC-160M2-8
Model description
Rated output = 5.5 kW
Power factor = 0.74
Rated torque = 73 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 610 mm ,P = 350 mm
Price
Model
HC-160L-8
Model description
Rated output = 7.5 kW
Power factor = 0.75
Rated torque = 99.5 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 655 mm ,P = 350 mm
Price
Model
HC-180L-8
Model description
Rated output = 11 kW
Power factor = 0.75
Rated torque = 144 Nm
Dimensions : AC = 380 mm , AD = 280 mm , D = 48 mm , L = 720 mm ,P = 350 mm
Price
Model
HC-200L-8
Model description
Rated output = 15 kW
Power factor = 0.76
Rated torque = 196.3 Nm
Dimensions : AC = 420 mm , AD = 315 mm , D = 55 mm , L = 760 mm ,P = 400 mm
Price
Model
HC-225S-8
Model description
Rated output = 18.5 kW
Power factor = 0.76
Rated torque = 242.1 Nm
Dimensions : AC = 465 mm , AD = 335 mm , D = 60 mm , L = 825 mm ,P = 450 mm
Price
Model
HC-225M-8
Model description
Rated output = 22 kW
Power factor = 0.78
Rated torque = 284 Nm
Dimensions : AC = 465 mm , AD = 335 mm , D = 60 mm , L = 850 mm ,P = 450 mm
Price
Model
HC-250M-8
Model description
Rated output = 30 kW
Power factor = 0.79
Rated torque = 387.3 Nm
Dimensions : AC = 520 mm , AD = 375 mm , D = 65 mm , L = 925 mm ,P = 550 mm
Price
Model
HC-280S-8
Model description
Rated output = 37 kW
Power factor = 0.79
Rated torque = 477.7 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 75 mm , L = 975 mm ,P = 550 mm
Price
Model
HC-280M-8
Model description
Rated output = 45 kW
Power factor = 0.79
Rated torque = 581 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 65 mm , L = 975 mm ,P = 550 mm
Price
Model
HC-315S-8
Model description
Rated output = 55 kW
Power factor = 0.81
Rated torque = 710.1 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1190 mm ,P = 660 mm
Price
Model
HC-315M-8
Model description
Rated output = 75 kW
Power factor = 0.81
Rated torque = 968.3 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-315L1-8
Model description
Rated output = 90 kW
Power factor = 0.82
Rated torque = 1162 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-315L2-8
Model description
Rated output = 110 kW
Power factor = 0.82
Rated torque = 1420 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-355M1-8
Model description
Rated output = 132 kW
Power factor = 0.82
Rated torque = 1704 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 95 mm , L = 1530 mm ,P = 800 mm
Price
Model
HC-355M2-8
Model description
Rated output = 160 kW
Power factor = 0.82
Rated torque = 2066 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 95 mm , L = 1530 mm ,P = 800 mm
Price
Model
HC-355L-8
Model description
Rated output = 200 kW
Power factor = 0.83
Rated torque = 2582 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 95 mm , L = 1530 mm ,P = 800 mm
Price
