ชื่อรุ่น :
Synchronous motor B5 - 6 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
HC-80M1-6
Model description
Rated output = 0.55 kW
Power factor = 0.75
Rated torque = 3.8 Nm

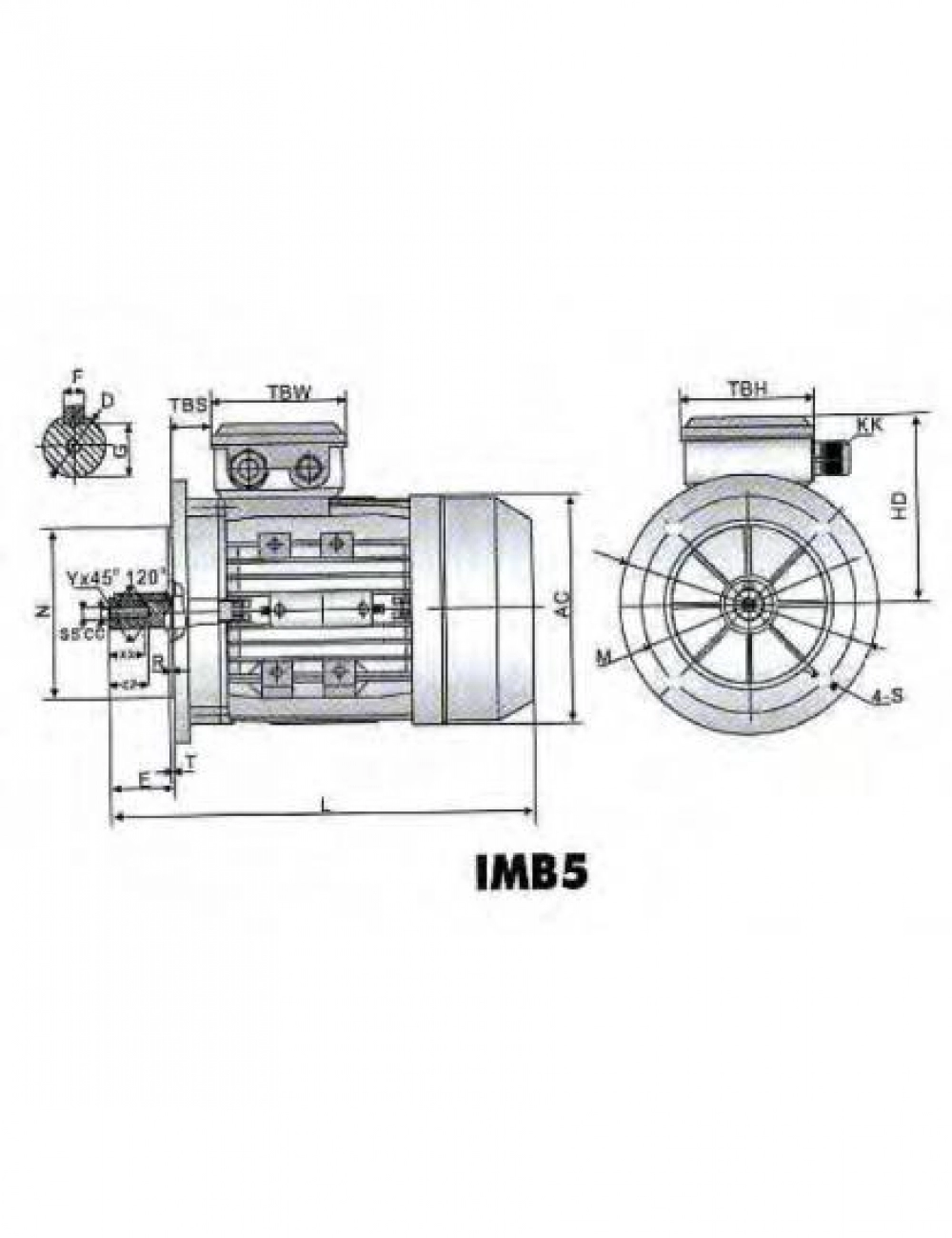

Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-80M2-6
Model description
Rated output = 0.55 kW
Power factor = 0.72
Rated torque = 5.9 Nm
Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-90S-6
Model description
Rated output = 0.75 kW
Power factor = 0.72
Rated torque = 7.9 Nm
Dimensions : AC = 190 mm , AD = 165 mm , D = 24 mm , L = 320 mm ,P = 200 mm
Price
Model
HC-90L-6
Model description
Rated output = 1.1 kW
Power factor = 0.73
Rated torque = 11.5 Nm
Dimensions : AC = 190 mm , AD = 165 mm , D = 24 mm , L = 345 mm ,P = 200 mm
Price
Model
HC-100L-6
Model description
Rated output = 1.5 kW
Power factor = 0.75
Rated torque = 15.6 Nm
Dimensions : AC = 215 mm , AD = 170 mm , D = 28 mm , L = 385 mm ,P = 250 mm
Price
Model
HC-112M-6
Model description
Rated output = 2.2 kW
Power factor = 0.76
Rated torque = 22.4 Nm
Dimensions : AC = 236 mm , AD = 195 mm , D = 28 mm , L = 410 mm ,P = 250 mm
Price
Model
HC-132S-6
Model description
Rated output = 3 kW
Power factor = 0.76
Rated torque = 29.9 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 480 mm ,P = 300 mm
Price
Model
HC-132M1-6
Model description
Rated output = 4 kW
Power factor = 0.76
Rated torque = 39.8 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 520 mm ,P = 300 mm
Price
Model
HC-132M2-6
Model description
Rated output = 5.5 kW
Power factor = 0.77
Rated torque = 54.7 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 520 mm ,P = 300 mm
Price
Model
HC-160M-6
Model description
Rated output = 7.5 kW
Power factor = 73.9
Rated torque = 2 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 610 mm ,P = 350 mm
Price
Model
HC-160L-6
Model description
Rated output = 11 kW
Power factor = 0.78
Rated torque = 108.3 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 655 mm ,P = 350 mm
Price
Model
HC-180L-6
Model description
Rated output = 15 kW
Power factor = 0.81
Rated torque = 147.7 Nm
Dimensions : AC = 380 mm , AD = 280 mm , D = 48 mm , L = 720 mm ,P = 350 mm
Price
Model
HC-200L1-6
Model description
Rated output = 18.5 kW
Power factor = 0.81
Rated torque = 182.2 Nm
Dimensions : AC = 420 mm , AD = 315 mm , D = 55 mm , L = 760 mm ,P = 400 mm
Price
Model
HC-200L2-6
Model description
Rated output = 22 kW
Power factor = 0.83
Rated torque = 216.7 Nm
Dimensions : AC = 420 mm , AD = 315 mm , D = 55 mm , L = 760 mm ,P = 400 mm
Price
Model
HC-225M-6
Model description
Rated output = 30 kW
Power factor = 0.84
Rated torque = 292.5 Nm
Dimensions : AC = 465 mm , AD = 335 mm , D = 60 mm , L = 850 mm ,P = 450 mm
Price
Model
HC-250M-6
Model description
Rated output = 37 kW
Power factor = 92.2
Rated torque = 360.7 Nm
Dimensions : AC = 520 mm , AD = 375 mm , D = 60 mm , L = 925 mm ,P = 550 mm
Price
Model
HC-280S-6
Model description
Rated output = 45 kW
Power factor = 0.86
Rated torque = 438.7 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 75 mm , L = 975 mm ,P = 550 mm
Price
Model
HC-280M1-6
Model description
Rated output = 55 kW
Power factor = 0.86
Rated torque = 536.2 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 75 mm , L = 1015 mm ,P = 550 mm
Price
Model
HC-280M2-6
Model description
Rated output = 75 kW
Power factor = 93.6
Rated torque = 0.87 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 80 mm , L = 1060 mm ,P = 550 mm
Price
Model
HC-315S-6
Model description
Rated output = 75 kW
Power factor = 0.86
Rated torque = 723.8 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1190 mm ,P = 660 mm
Price
Model
HC-315M-6
Model description
Rated output = 90 kW
Power factor = 0.86
Rated torque = 868.6 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-315L1-6
Model description
Rated output = 110 kW
Power factor = 0.86
Rated torque = 1062 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-315L2-6
Model description
Rated output = 132 kW
Power factor = 0.87
Rated torque = 1274 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 660 mm
Price
Model
HC-355M1-6
Model description
Rated output = 160 kW
Power factor = 0.88
Rated torque = 1544 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 80 mm , L = 1300 mm ,P = 600 mm
Price
Model
HC-355M2-6
Model description
Rated output = 200 kW
Power factor = 0.88
Rated torque = 1930 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 95 mm , L = 1530 mm ,P = 800 mm
Price
Model
HC-355L-6
Model description
Rated output = 250 kW
Power factor = 0.88
Rated torque = 2413 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 95 mm , L = 1530 mm ,P = 800 mm
Price
