PRODUCT
![]()
ชื่อรุ่น :
Synchronous motor B5 - 2 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
HC-80 1-2
Model description
Rated output = 0.75 kW
Power factor = 0.83
Rated torque = 2.5 Nm

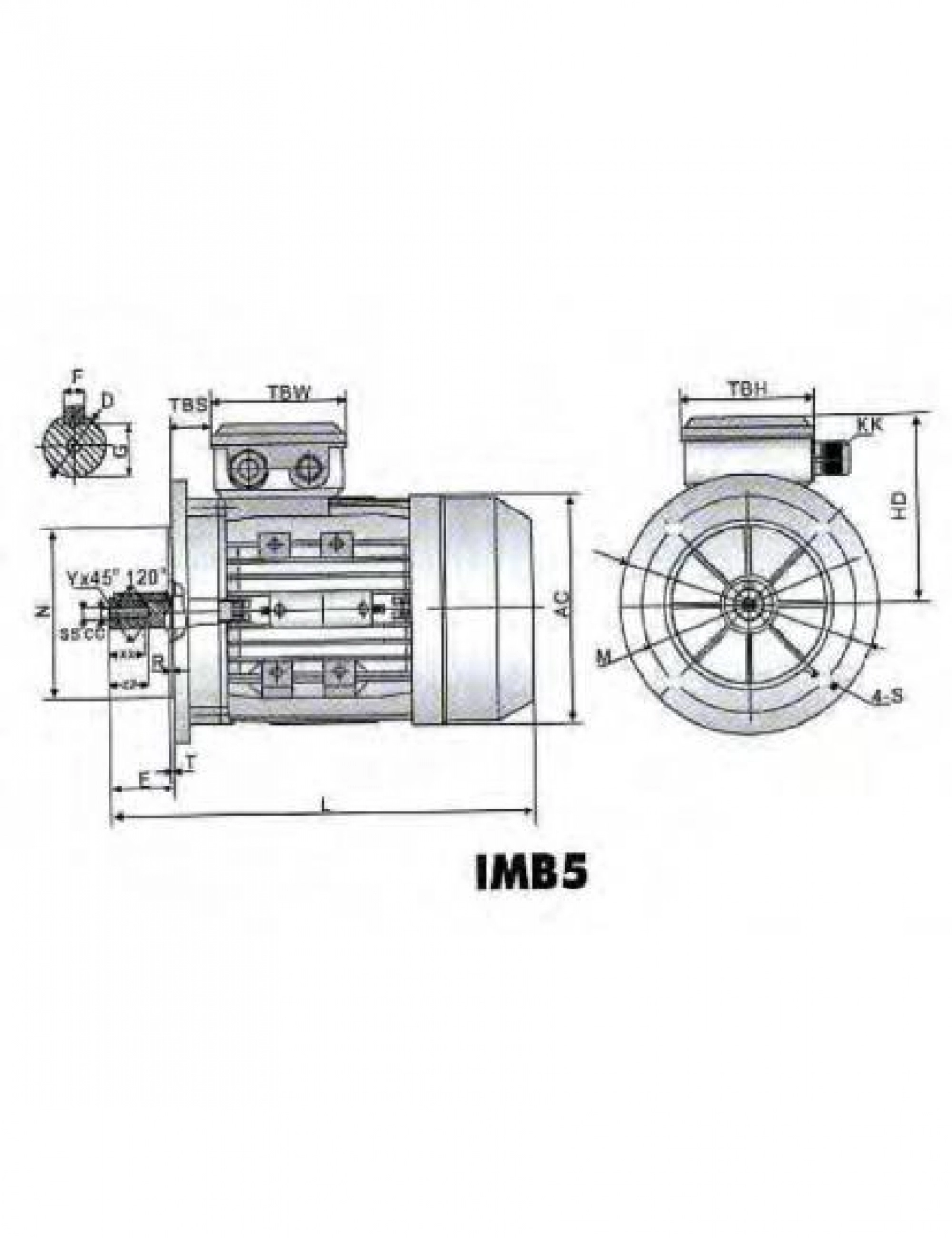

Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-80 2-2
Model description
Rated output = 1.1 kW
Power factor = 0.84
Rated torque = 3.7 Nm
Dimensions : AC = 175 mm , AD = 150 mm , D = 19 mm , L = 295 mm ,P = 200 mm
Price
Model
HC-90S-2
Model description
Rated output = 1.5 kW
Power factor = 0.85
Rated torque = 5 Nm
Dimensions : AC = 190 mm , AD = 160 mm , D = 24 mm , L = 320 mm ,P = 200 mm
Price
Model
HC-90L-2
Model description
Rated output = 2.2 kW
Power factor = 0.85
Rated torque = 7.4 Nm
Dimensions : AC = 190 mm , AD = 160 mm , D = 24 mm , L = 345 mm ,P = 200 mm
Price
Model
HC-100L-2
Model description
Rated output = 3 kW
Power factor = 0.87
Rated torque = 10 Nm
Dimensions : AC = 215 mm , AD = 170 mm , D = 28 mm , L = 385 mm ,P = 250 mm
Price
Model
HC-112M1-2
Model description
Rated output = 4 kW
Power factor = 00.88
Rated torque = 13.3 Nm
Dimensions : AC = 236 mm , AD = 195 mm , D = 28 mm , L = 410 mm ,P = 250 mm
Price
Model
HC-112M2-2
Model description
Rated output = 5.5 kW
Power factor = 8.88
Rated torque = 13.3 Nm
Dimensions : AC = 236 mm , AD = 195 mm , D = 28 mm , L = 410 mm ,P = 250 mm
Price
Model
HC-132S1-2
Model description
Rated output = 5.5 kW
Power factor = 0.88
Rated torque = 18.1 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 480 mm ,P = 300 mm
Price
Model
HC-132S2-2
Model description
Rated output = 7.5 kW
Power factor = 0.88
Rated torque = 24.5 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 480 mm ,P = 300 mm
Price
Model
HC-132M-2
Model description
Rated output = 11 kW
Power factor = 0.88
Rated torque = 36.2 Nm
Dimensions : AC = 275 mm , AD = 215 mm , D = 38 mm , L = 520 mm ,P = 300 mm
Price
Model
HC-160M1-2
Model description
Rated output = 11 kW
Power factor = 0.89
Rated torque = 35.8 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 610 mm ,P = 350 mm
Price
Model
HC-160M2-2
Model description
Rated output = 15 kW
Power factor = 0.89
Rated torque = 48.8 Nm
Dimensions : AC = 330 mm , AD = 265 mm , D = 42 mm , L = 610 mm ,P = 350 mm
Price
Model
HC-160L-2
Model description
Rated output = 18.5 kW
Power factor = 0.90
Rated torque = 60.4 Nm
Dimensions : AC = 330 mm , AD = 330 mm , D = 42 mm , L = 655 mm ,P = 350 mm
Price
Model
HC-180M-2
Model description
Rated output = 22 kW
Power factor = 0.90
Rated torque = 71.4 Nm
Dimensions : AC = 380 mm , AD = 280 mm , D = 48 mm , L = 680 mm ,P = 350 mm
Price
Model
HC-200L1-2
Model description
Rated output = 30 kW
Power factor = 0.90
Rated torque = 97.2 Nm
Dimensions : AC = 420 mm , AD = 315 mm , D = 55 mm , L = 760 mm ,P = 400 mm
Price
Model
HC-200L2-2
Model description
Rated output = 37 kW
Power factor = 0.90
Rated torque = 119.8 Nm
Dimensions : AC = 420 mm , AD = 315 mm , D = 55 mm , L = 760 mm ,P = 400 mm
Price
Model
HC-225M-2
Model description
Rated output = 45 kW
Power factor = 0.90
Rated torque = 144.8 Nm
Dimensions : AC = 465 mm , AD = 335 mm , D = 55 mm , L = 820 mm ,P = 450 mm
Price
Model
HC-250M1-2
Model description
Rated output = 55 kW
Power factor = 0.90
Rated torque = 177 Nm
Dimensions : AC = 520 mm , AD = 375 mm , D = 60 mm , L = 925 mm ,P = 550 mm
Price
Model
HC-250M2-2
Model description
Rated output = 75 kW
Power factor = 0.90
Rated torque = 93.7 Nm
Dimensions : AC = 520 mm , AD = 375 mm , D = 60 mm , L = 925 mm ,P = 550 mm
Price
Model
HC-280S-2
Model description
Rated output = 75 kW
Power factor = 0.90
Rated torque = 93.7 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 65 mm , L = 960 mm ,P = 550 mm
Price
Model
HC-280M1-2
Model description
Rated output = 90 kW
Power factor = 0.91
Rated torque = 289.5 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 65 mm , L = 1000 mm ,P = 550 mm
Price
Model
HC-280M2-2
Model description
Rated output = 110 kW
Power factor = 0.91
Rated torque = 353.9 Nm
Dimensions : AC = 570 mm , AD = 405 mm , D = 80 mm , L = 1060 mm ,P = 550 mm
Price
Model
HC-315S-2
Model description
Rated output = 110 kW
Power factor = 0.91
Rated torque = 352.7 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 65 mm , L = 1160 mm ,P = 660 mm
Price
Model
HC-315M-2
Model description
Rated output = 132 kW
Power factor = 0.91
Rated torque = 423.2 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 65 mm , L = 1270 mm ,P = 660 mm
Price
Model
HC-315L1-2
Model description
Rated output = 160 kW
Power factor = 0.91
Rated torque = 513 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 65 mm , L = 1270 mm ,P = 660 mm
Price
Model
HC-315L2-2
Model description
Rated output = 200 kW
Power factor = 0.92
Rated torque = 641.2 Nm
Dimensions : AC = 650 mm , AD = 500 mm , D = 65 mm , L = 1270 mm ,P = 660 mm
Price
Model
HC-355M-2
Model description
Rated output = 250 kW
Power factor = 0.92
Rated torque = 801.5 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 75 mm , L = 1500 mm ,P = 800 mm
Price
Model
HC-355L-2
Model description
Rated output = 315 kW
Power factor = 0.92
Rated torque = 1010 Nm
Dimensions : AC = 735 mm , AD = 645 mm , D = 75 mm , L = 1500 mm ,P = 800 mm
Price
