PRODUCT
![]()
ชื่อรุ่น :
BN - 4 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
BN 56A 4
Model description
Pn = 0.06 kW
Mn = 0.43 Nm
In = 0.28 A

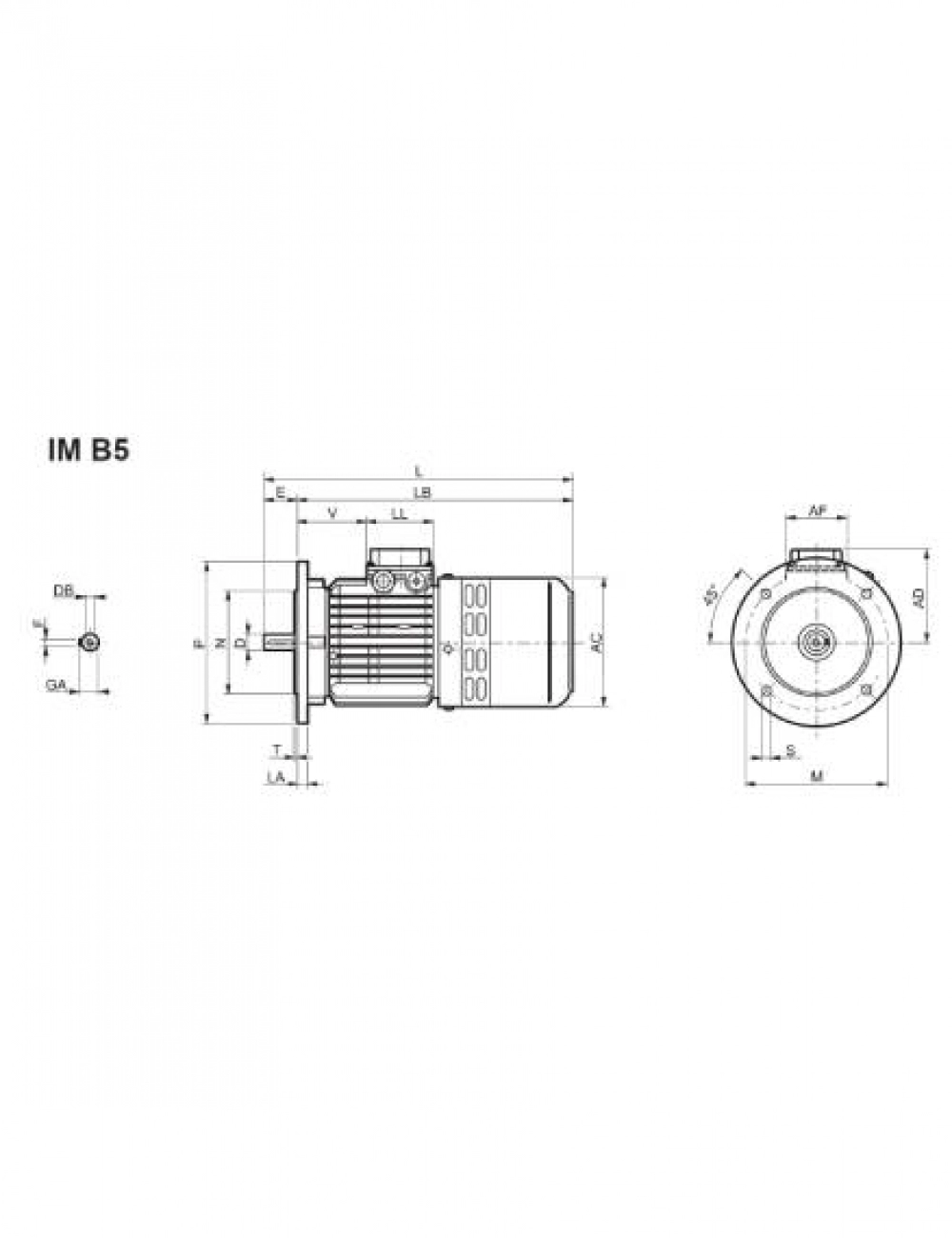

Dimension : D = 9 mm, DA = 9 mm , E = 20 mm , EA = 20 mm , DB = M3 , M = 65 mm , N = 50 mm , P = 80 mm , AC = 110 mm , L = 185 mm
Price
Model
BN 56B 4
Model description
Pn = 0.09 kW
Mn = 0.64 Nm
In = 0.42 A
Dimension : D = 9 mm, DA = 9 mm , E = 20 mm , EA = 20 mm , DB = M3 , M = 65 mm , N = 50 mm , P = 80 mm , AC = 110 mm , L = 185 mm
Price
Model
BN 63A 4
Model description
Pn = 0.12 kW
Mn = 0.85 Nm
In = 0.47 A
Dimension : D = 11 mm, DA = 11 mm , E = 23 mm , EA = 23 mm , DB = M4 , M = 75 mm , N = 60 mm , P = 90 mm , AC = 121 mm , L = 207 mm
Price
Model
BN 63B 4
Model description
Pn = 0.18 kW
Mn = 1.30 Nm
In = 0.71 A
Dimension : D = 11 mm, DA = 11 mm , E = 23 mm , EA = 23 mm , DB = M4 , M = 75 mm , N = 60 mm , P = 90 mm , AC = 121 mm , L = 207 mm
Price
Model
BN 63C 4
Model description
Pn = 0.25 kW
Mn = 1.78 Nm
In = 0.80 A
Dimension : D = 11 mm, DA = 11 mm , E = 23 mm , EA = 23 mm , DB = M4 , M = 75 mm , N = 60 mm , P = 90 mm , AC = 121 mm , L = 207 mm
Price
Model
BN 71A 4
Model description
Pn = 0.25 kW
Mn = 1.73 Nm
In = 0.78 A
Dimension : D = 14 mm, DA = 14 mm , E = 30 mm , EA = 30 mm , DB = M5 , M = 85 mm , N = 70 mm , P = 105 mm , AC = 138 mm , L = 249 mm
Price
Model
BN 71B 4
Model description
Pn = 0.37 kW
Mn = 2.6 Nm
In = 1.05 A
Dimension : D = 14 mm, DA = 14 mm , E = 30 mm , EA = 30 mm , DB = M5 , M = 85 mm , N = 70 mm , P = 105 mm , AC = 138 mm , L = 249 mm
Price
Model
BN 71C 4
Model description
Pn = 0.55 kW
Mn = 3.8 Nm
In = 1.55 A
Dimension : D = 14 mm, DA = 14 mm , E = 30 mm , EA = 30 mm , DB = M5 , M = 85 mm , N = 70 mm , P = 105 mm , AC = 138 mm , L = 249 mm
Price
Model
BN 80A 4
Model description
Pn = 0.55 kW
Mn = 3.8 Nm
In = 1.43 A
Dimension : D = 19 mm, DA = 19 mm , E = 40 mm , EA = 40 mm , DB = M6 , M = 100 mm , N = 80 mm , P = 120 mm , AC = 156 mm , L = 274 mm
Price
Model
BN 80B 4
Model description
Pn = 0.75 kW
Mn = 5.1 Nm
In = 1.85 A
Dimension : D = 19 mm, DA = 19 mm , E = 40 mm , EA = 40 mm , DB = M6 , M = 100 mm , N = 80 mm , P = 120 mm , AC = 156 mm , L = 274 mm
Price
Model
BN 80C 4
Model description
Pn = 1.1 kW
Mn = 7.5 Nm
In = 2.66 A
Dimension : D = 19 mm, DA = 19 mm , E = 40 mm , EA = 40 mm , DB = M6 , M = 100 mm , N = 80 mm , P = 120 mm , AC = 156 mm , L = 274 mm
Price
Model
BN 90S 4
Model description
Pn = 1.1 kW
Mn = 7.5 Nm
In = 2.70 A
Dimension : D = 24 mm, DA = 24 mm , E = 50 mm , EA = 50 mm , DB = M8 , M = 115 mm , N = 95 mm , P = 140 mm , AC = 176 mm , L = 326 mm
Price
Model
BN 90LA 4
Model description
Pn = 1.5 kW
Mn = 10.3 Nm
In = 3.6 A
Dimension : D = 24 mm, DA = 24 mm , E = 50 mm , EA = 50 mm , DB = M8 , M = 115 mm , N = 95 mm , P = 140 mm , AC = 176 mm , L = 326 mm
Price
Model
BN 90LB 4
Model description
Pn = 1.85 kW
Mn = 12.7 Nm
In = 4.2 A
Dimension : D = 24 mm, DA = 24 mm , E = 50 mm , EA = 50 mm , DB = M8 , M = 115 mm , N = 95 mm , P = 140 mm , AC = 176 mm , L = 326 mm
Price
Model
BN 100LA 4
Model description
Pn = 2.2 kW
Mn = 14.9 Nm
In = 5.2 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , M = 130 mm , N = 110 mm , P = 160 mm , AC = 195 mm , L = 366 mm
Price
Model
BN 100LB 4
Model description
Pn = 3 kW
Mn = 20 Nm
In = 6.8 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , M = 130 mm , N = 110 mm , P = 160 mm , AC = 195 mm , L = 366 mm
Price
Model
BN 112M 4
Model description
Pn = 4 kW
Mn = 27 Nm
In = 8.4 A
Dimension : D = 28 mm, DA = 28 mm , E = 60 mm , EA = 60 mm , DB = M10 , M = 130 mm , N = 110 mm , P = 160 mm , AC = 219 mm , L = 385 mm
Price
Model
BN 132S 4
Model description
Pn = 5.5 kW
Mn = 36 Nm
In = 11.5 A
Dimension : D = 38 mm, DA = 38 mm , E = 80 mm , EA = 80 mm , DB = M12 , M = 165 mm , N = 130 mm , P = 200 mm , AC = 258 mm , L = 493 mm
Price
Model
BN 132MA 4
Model description
Pn = 7.5 kW
Mn = 50 Nm
In = 15.6 A
Dimension : D = 38 mm, DA = 38 mm , E = 80 mm , EA = 80 mm , DB = M12 , M = 165 mm , N = 130 mm , P = 200 mm , AC = 258 mm , L = 493 mm
Price
Model
BN 132MB 4
Model description
Pn = 9.2 kW
Mn = 61 Nm
In = 18.8 A
Dimension : D = 38 mm, DA = 38 mm , E = 80 mm , EA = 80 mm , DB = M12 , M = 165 mm , N = 130 mm , P = 200 mm , AC = 258 mm , L = 493 mm
Price
Model
BN 160MR 4
Model description
Pn = 11 kW
Mn = 73 Nm
In = 22.2 A
Dimension : D = 42 mm, DA = 38 mm , E = 110 mm , EA = 80 mm , DB = M12 - M16 , M = 300 mm , N = 250 mm , P = 350 mm , AC = 258 mm , L = 562 mm
Price
Model
BN 160L 4
Model description
Pn = 15 kW
Mn = 98 Nm
In = 29.7 A
Dimension : D = 42 mm, DA = 38 mm , E = 110 mm , EA = 80 mm , DB = M12-M16 , M = 300 mm , N = 250 mm , P = 350 mm , AC = 310 mm , L = 596 mm
Price
Model
BN 180M 4
Model description
Pn = 18.5 kW
Mn = 121 Nm
In = 37 A
Dimension : D = 48 mm, DA = 38 mm , E = 110 mm , EA = 80 mm , DB = M12-M16 , M = 300 mm , N = 250 mm , P = 350 mm , AC = 310 mm , L = 640 mm
Price
Model
BN 180L 4
Model description
Pn = 22 kW
Mn = 144 Nm
In = 6.5 A
Dimension : D = 48 mm, DA = 42 mm , E = 110 mm , EA = 110 mm , DB = M16 , M = 300 mm , N = 250 mm , P = 350 mm , AC = 348 mm , L = 708 mm
Price
Model
BN 200L 4
Model description
Pn = 30 kW
Mn = 196 Nm
In = 59 A
Dimension : D = 55 mm, DA = 42 mm , E = 110 mm , EA = 110 mm , DB = M16-M20 , M = 350 mm , N = 300 mm , P = 400 mm , AC = 348 mm , L = 722 mm
Price
