PRODUCT
![]()
ชื่อรุ่น :
M2BAX... - 6 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
M2BAX 71MA 6
Model description
Output = 0.18 kW
Power factor = 0.69 Cos
Current = 0.63 A
Torque = 1.87 Nm

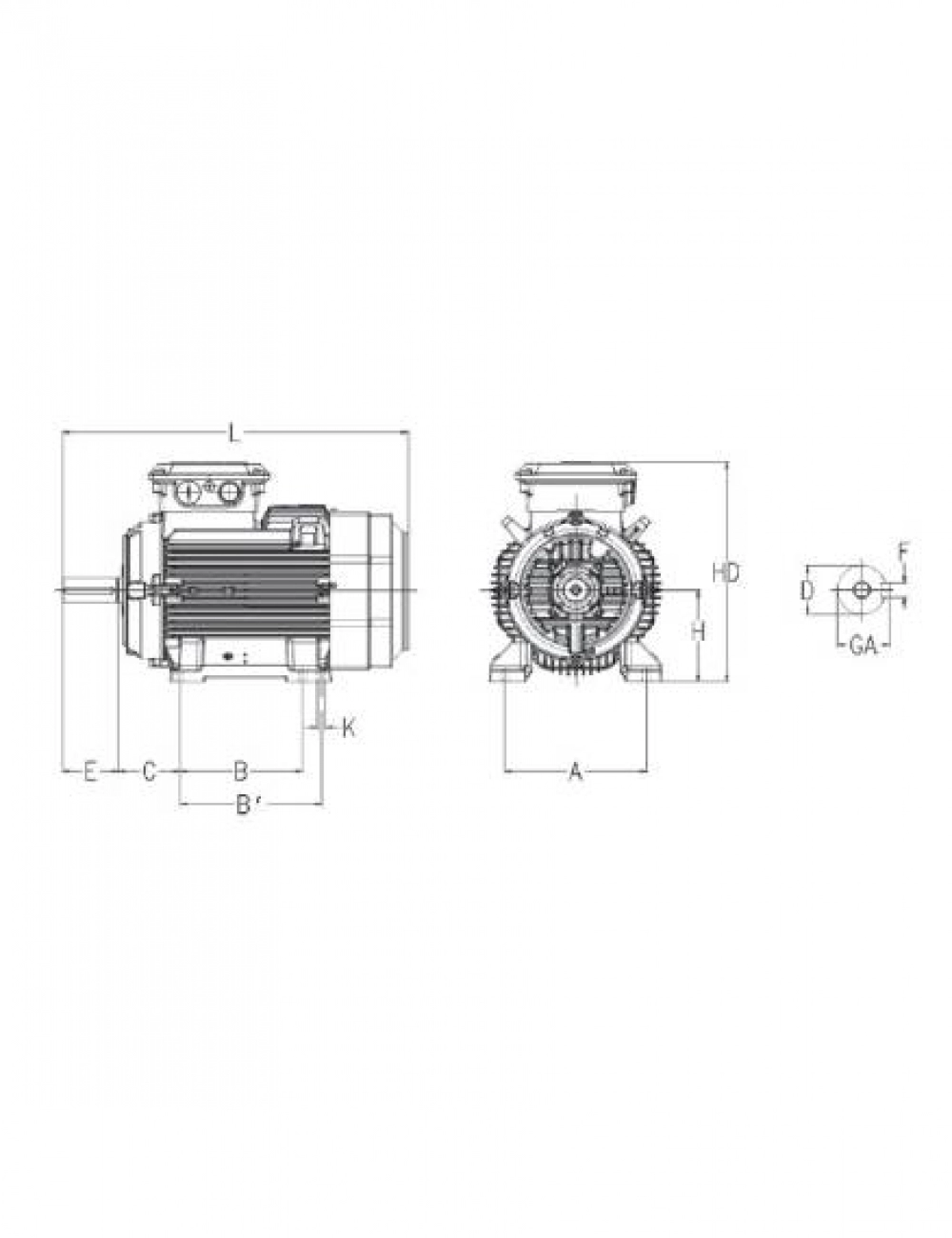

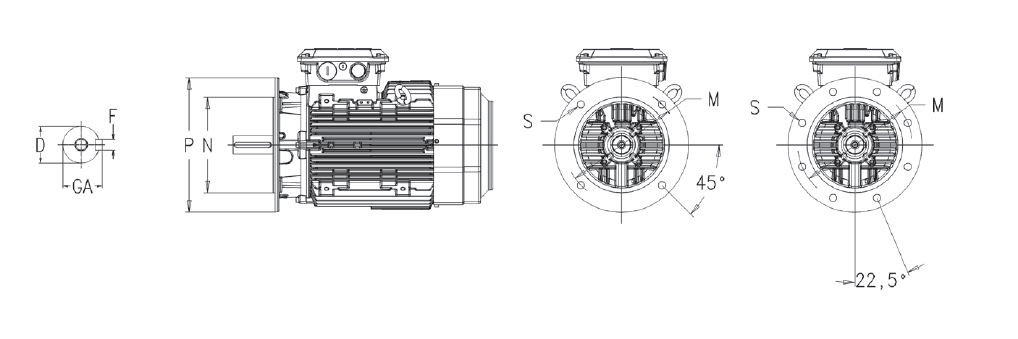

Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 71MB 6
Model description
Output = 0.25 kW
Power factor = 0.70 Cos
Current = 0.82 A
Torque = 2.64 Nm
Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 80MA 6
Model description
Output = 0.37 kW
Power factor = 0.71 Cos
Current = 1.19 A
Torque = 3.85 Nm
Dimension : Motor size = 80M , D = , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 80MB 6
Model description
Output = 0.55 kW
Power factor = 0.65 Cos
Current = 1.67 A
Torque = 5.61 Nm
Dimension : Motor size = 80M , D = , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90SA 6
Model description
Output = 0.75 kW
Power factor = 0.60 Cos
Current = 2.36 A
Torque = 7.6 Nm
Dimension : Motor size = 90M , D = 24 , E = 50 mm , L = 335 mm , A = 140 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90LA 6
Model description
Output = 1.1 kW
Power factor = 0.65 Cos
Current = 3.17 A
Torque = 11.06 Nm
Dimension : Motor size = 90M , D = 24 , E = 50 mm , L = 351 mm , A = 140 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 100LA 6
Model description
Output = 1.5 kW
Power factor = 0.63 Cos
Current = 4.36 A
Torque = 15 Nm
Dimension : Motor size = 100M , D = 28 , E = 60 mm , L = 376 mm , A = 160 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 112MA 6
Model description
Output = 2.2 kW
Power factor = 0.66 Cos
Current = 5.92 A
Torque = 21.9 Nm
Dimension : Motor size = 100M , D = 28 , E = 60 mm , L = 376 mm , A = 160 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 132SA 6
Model description
Output = 3 kW
Power factor = 0.64 Cos
Current = 8.09 A
Torque = 29.43 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 479 mm , A = 216 mm , B = 140 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 132MA 6
Model description
Output = 4 kW
Power factor = 0.69 Cos
Current = 9.95 A
Torque = 39.76 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 521 mm , A = 216 mm , B = 178 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 132MB 6
Model description
Output = 5.5 kW
Power factor = 0.66 Cos
Current = 14 A
Torque = 54.2 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 521 mm , A = 216 mm , B = 178 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 160MLA 6
Model description
Output = 7.5 kW
Power factor = 0.74 Cos
Current = 16.4 A
Torque = 108 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 586.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 160MLB 6
Model description
Output = 11 kW
Power factor = 0.78 Cos
Current = 22.9 A
Torque = 108 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 626.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 180MLA 6
Model description
Output = 15 kW
Power factor = 0.76 Cos
Current = 32 A
Torque = 147 Nm
Dimension : Motor size = 180M , D = 48 , E = 110 mm , L = 683.5 mm , A = 279 mm , B = 241 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 200MLA 6
Model description
Output = 18.5 kW
Power factor = 0.76 Cos
Current = 38.5 A
Torque = 181 Nm
Dimension : Motor size = 200M , D = 55 , E = 110 mm , L = 728 mm , A = 318 mm , B = 267 mm , N = 300 mm , P = 400 mm
Price
Model
M2BAX 200MLB 6
Model description
Output = 22 kW
Power factor = 0.76 Cos
Current = 45.6 A
Torque = 215 Nm
Dimension : Motor size = 200M , D = 55 , E = 110 mm , L = 728 mm , A = 318 mm , B = 267 mm , N = 300 mm , P = 400 mm
Price
Model
M2BAX 225SMA 6
Model description
Output = 30 kW
Power factor = 0.78 Cos
Current = 60.6 A
Torque = 290 Nm
Dimension : Motor size = 225M , D = 55 , E = 140 mm , L = 854 mm , A = 356 mm , B = 286 mm , N = 350 mm , P = 450 mm
Price
Model
M2BAX 250SMA 6
Model description
Output = 37 kW
Power factor = 90.5 Cos
Current = 71.9 A
Torque = 359 Nm
Dimension : Motor size = 250M , D = 60 , E = 140 mm , L = 882 mm , A = 406 mm , B = 311 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SMD 6
Model description
Output = 45 kW
Power factor = 0.80 Cos
Current = 88.2 A
Torque = Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SME 6
Model description
Output = 55 kW
Power factor = 0.81 Cos
Current = 105 A
Torque = 531 Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 315SMA 6
Model description
Output = 75 kW
Power factor = 0.81 Cos
Current = 143 A
Torque = 721 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMB 6
Model description
Output = 90 kW
Power factor = 0.83 Cos
Current = 165 A
Torque = 866 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMC 6
Model description
Output = 110 kW
Power factor = 0.83 Cos
Current = 203 A
Torque = 1058 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1246 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315MLA 6
Model description
Output = 132 kW
Power factor = 0.83 Cos
Current = 243 A
Torque = 1270 Nm
Dimension : Motor size = 315M , D = 65 , E = 170 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMA 6
Model description
Output = 160 kW
Power factor = 0.83 Cos
Current = 293 A
Torque = 1540 Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMB 6
Model description
Output = 200 kW
Power factor = 0.84 Cos
Current = 360 A
Torque = 1925 Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMC 6
Model description
Output = 250 kW
Power factor = 0.84 Cos
Current = 450 A
Torque = 2409 Nm
Dimension : Motor size = 355M , D = 65 , E = 210 mm , L = 1356 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
