ชื่อรุ่น :
M2BAX... - 2 Pole
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
M2BAX 71MA 2
Model description
Output = 0.37 kW
Power factor = 0.78 Cos
Current = 0.91 A
Torque = 1.24 Nm

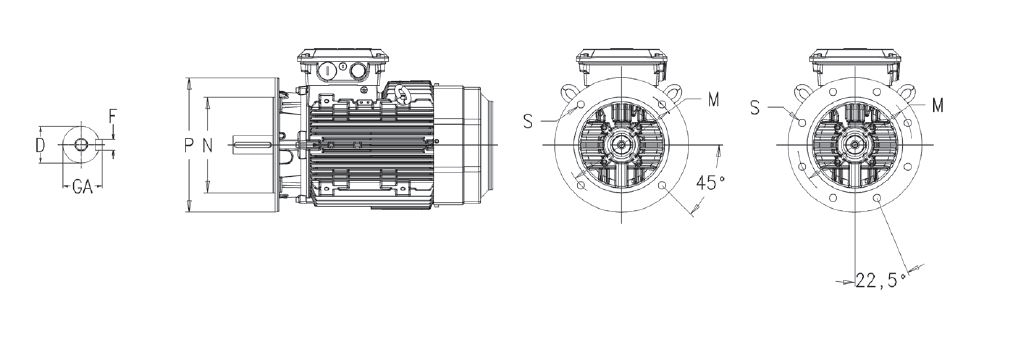

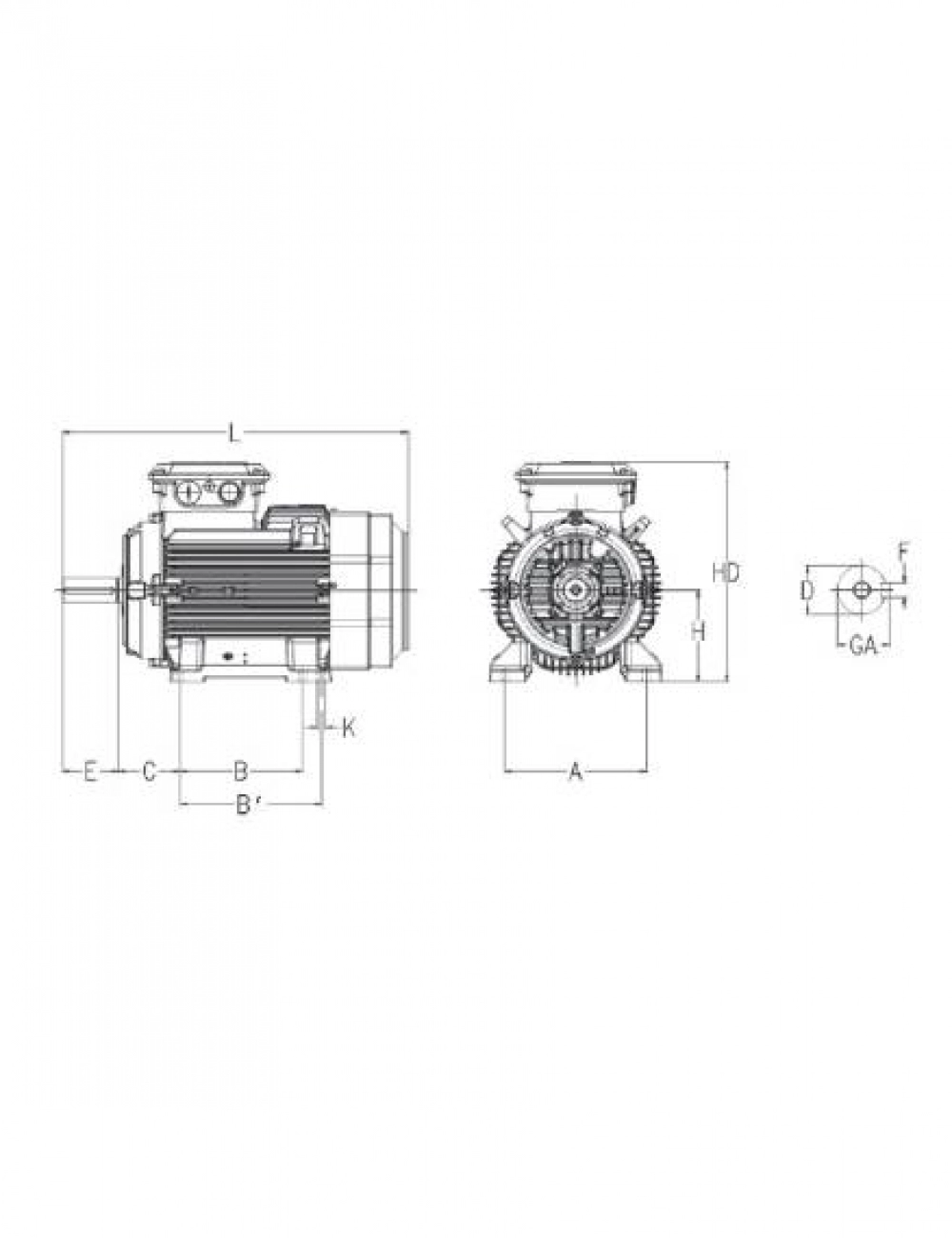

Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 71MB 2
Model description
Output = 0.55 kW
Power factor = 0.79 Cos
Current = 1.3 A
Torque = 1.85 Nm
Dimension : Motor size = 71M , D = 14 , E = 30 mm , L = 257 mm , A = 112 mm , B = 90 mm , N = 110 mm , P = 160 mm
Price
Model
M2BAX 80MA 2
Model description
Output = 0.75 kW
Power factor = 0.81 Cos
Current = 1.71 A
Torque = 2.51 Nm
Dimension : Motor size = 80M , D = 19 , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 80MB 2
Model description
Output = 1.1 kW
Power factor = 0.83 Cos
Current = 2.44 A
Torque = 3.67 Nm
Dimension : Motor size = 80M , D = 19 , E = 40 mm , L = 309 mm , A = 125 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90SA 2
Model description
Output = 1.5 kW
Power factor = 0.79 Cos
Current = 3.37 A
Torque = 4.93 Nm
Dimension : Motor size = 80M , D = 24 , E = 50 mm , L = 335 mm , A = 140 mm , B = 100 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 90LA 2
Model description
Output = 2.2 kW
Power factor = 0.84 Cos
Current = 4.48 A
Torque = 7.25 Nm
Dimension : Motor size = 90M , D = 24 , E = 50 mm , L = 351 mm , A = 140 mm , B = 125 mm , N = 130 mm , P = 200 mm
Price
Model
M2BAX 100LA 2
Model description
Output = 3 kW
Power factor = 0.84 Cos
Current = 6.12 A
Torque = 9.81 Nm
Dimension : Motor size = 100M , D = 28 , E = 60 mm , L = 376 mm , A = 160 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 112MA 2
Model description
Output = 4 kW
Power factor = 0.86 Cos
Current = 7.89 A
Torque = 13.08 Nm
Dimension : Motor size = 112M , D = 28 , E = 60 mm , L = 411 mm , A = 190 mm , B = 140 mm , N = 180 mm , P = 250 mm
Price
Model
M2BAX 132SA 2
Model description
Output = 5.5 kW
Power factor = 0.85 Cos
Current = 10.8 A
Torque = 18.02 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 479 mm , A = 216 mm , B = 140 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 132SB 2
Model description
Output = 7.5 kW
Power factor = 0.84 Cos
Current = 14.5 A
Torque = 24.57 Nm
Dimension : Motor size = 132M , D = 38 , E = 80 mm , L = 479 mm , A = 216 mm , B = 140 mm , N = 230 mm , P = 300 mm
Price
Model
M2BAX 160MLA 2
Model description
Output = 11 kW
Power factor = 0.86 Cos
Current = 20.7 A
Torque = 35.87 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 586.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 160MLB 2
Model description
Output = 15 kW
Power factor = 0.88 Cos
Current = 27 A
Torque = 48.9 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 626.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 160MLC 2
Model description
Output = 18.5 kW
Power factor = 0.87 Cos
Current = 33.4 A
Torque = 60.13 Nm
Dimension : Motor size = 160M , D = 42 , E = 110 mm , L = 626.5 mm , A = 254 mm , B = 210 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 180MLA 2
Model description
Output = 22 kW
Power factor = 0.87 Cos
Current = 39.5 A
Torque = 71.7 Nm
Dimension : Motor size = 180M , D = 48 , E = 110 mm , L = 6683.5 mm , A = 279 mm , B = 241 mm , N = 250 mm , P = 350 mm
Price
Model
M2BAX 200MLA 2
Model description
Output = 30 kW
Power factor = 0.85 Cos
Current = 55.8 A
Torque = 97.1 Nm
Dimension : Motor size = 200M , D = 55 , E = 110 mm , L = 728 mm , A = 318 mm , B = 267 mm , N = 300 mm , P = 400 mm
Price
Model
M2BAX 200MLB 2
Model description
Output = 37 kW
Power factor = 0.90 Cos
Current = 64.2 A
Torque = 120 Nm
Dimension : Motor size = 200M , D = 55 , E = 110 mm , L = 728 mm , A = 318 mm , B = 267 mm , N = 300 mm , P = 400 mm
Price
Model
M2BAX 225SMA 2
Model description
Output = 45 kW
Power factor = 0.86 Cos
Current = 80.6 A
Torque = 145 Nm
Dimension : Motor size = 225M , D = 55 , E = 110 mm , L = 824 mm , A = 356 mm , B = 286 mm , N = 350 mm , P = 450 mm
Price
Model
M2BAX 250SMA 2
Model description
Output = 55 kW
Power factor = 0.87 Cos
Current = 96.4 A
Torque = 177 Nm
Dimension : Motor size = 250M , D = 60 , E = 140 mm , L = 882 mm , A = 406 mm , B = 311 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SMD 2
Model description
Output = 75 kW
Power factor = 0.89 Cos
Current = 129 A
Torque = 241 Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 280SME 2
Model description
Output = 90 kW
Power factor = 0.91 Cos
Current = 152 A
Torque = 289 Nm
Dimension : Motor size = 280M , D = 65 , E = 140 mm , L = 1012 mm , A = 457 mm , B = 368 mm , N = 450 mm , P = 550 mm
Price
Model
M2BAX 315SMA 2
Model description
Output = 110 kW
Power factor = 0.84 Cos
Current = 199 A
Torque = 352 Nm
Dimension : Motor size = 315M , D = 65 , E = 140 mm , L = 1216 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMB 2
Model description
Output = 132 kW
Power factor = 0.86 Cos
Current = 233 A
Torque = 423 Nm
Dimension : Motor size = 315M , D = 65 , E = 140 mm , L = 1216 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315SMC 2
Model description
Output = 160 kW
Power factor = 0.88 Cos
Current = 274 A
Torque = 513 Nm
Dimension : Motor size = 315M , D = 65 , E = 140 mm , L = 1216 mm , A = 508 mm , B = 406 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 315MLA 2
Model description
Output = 200 kW
Power factor = 0.89 Cos
Current = 341 A
Torque = 641 Nm
Dimension : Motor size = 315M , D = 65 , E = 140 mm , L = 1326 mm , A = 508 mm , B = 457 mm , N = 550 mm , P = 660 mm
Price
Model
M2BAX 355SMA 2
Model description
Output = 250 kW
Power factor = 0.89 Cos
Current = 428 A
Torque = 800 Nm
Dimension : Motor size = 355M , D = 70 , E = 140 mm , L = 1399 mm , A = 610 mm , B = 500 mm , N = 680 mm , P = 800 mm
Price
Model
M2BAX 355SMB 2
Model description
Output = 315 kW
Power factor = 0.89 Cos
Current = 537 A
Torque = 1009 Nm
Dimension : Motor size = 355M , D = 70 , E = 140 mm , L = 1399 mm , A = 610 mm , B = 500 mm , N = 680 mm , P = 800 mm
Price
Model
M2BAX 355SMC 2
Model description
Output = 355 kW
Power factor = 0.89 Cos
Current = 609 A
Torque = 1136 Nm
Dimension : Motor size = 355M , D = 70 , E = 140 mm , L = 1399 mm , A = 610 mm , B = 500 mm , N = 680 mm , P = 800 mm
Price
