PRODUCT
![]()
ชื่อรุ่น :

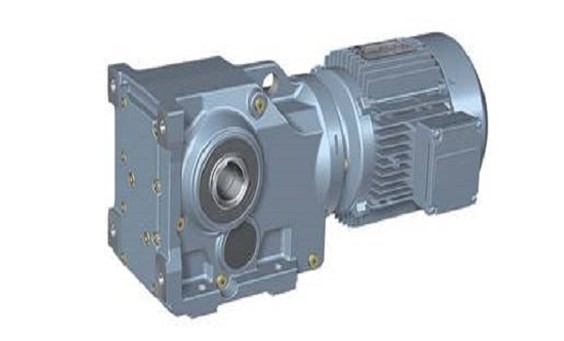

TK Series - 3 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 108 - MY132M8
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 5.0-7.9 r/min
Output torque (M2n) = 3620-5710 Nm
Gear unit actual ratio (i) = 90.96-143.37
Service factor (Fs) = 1.40-2.2

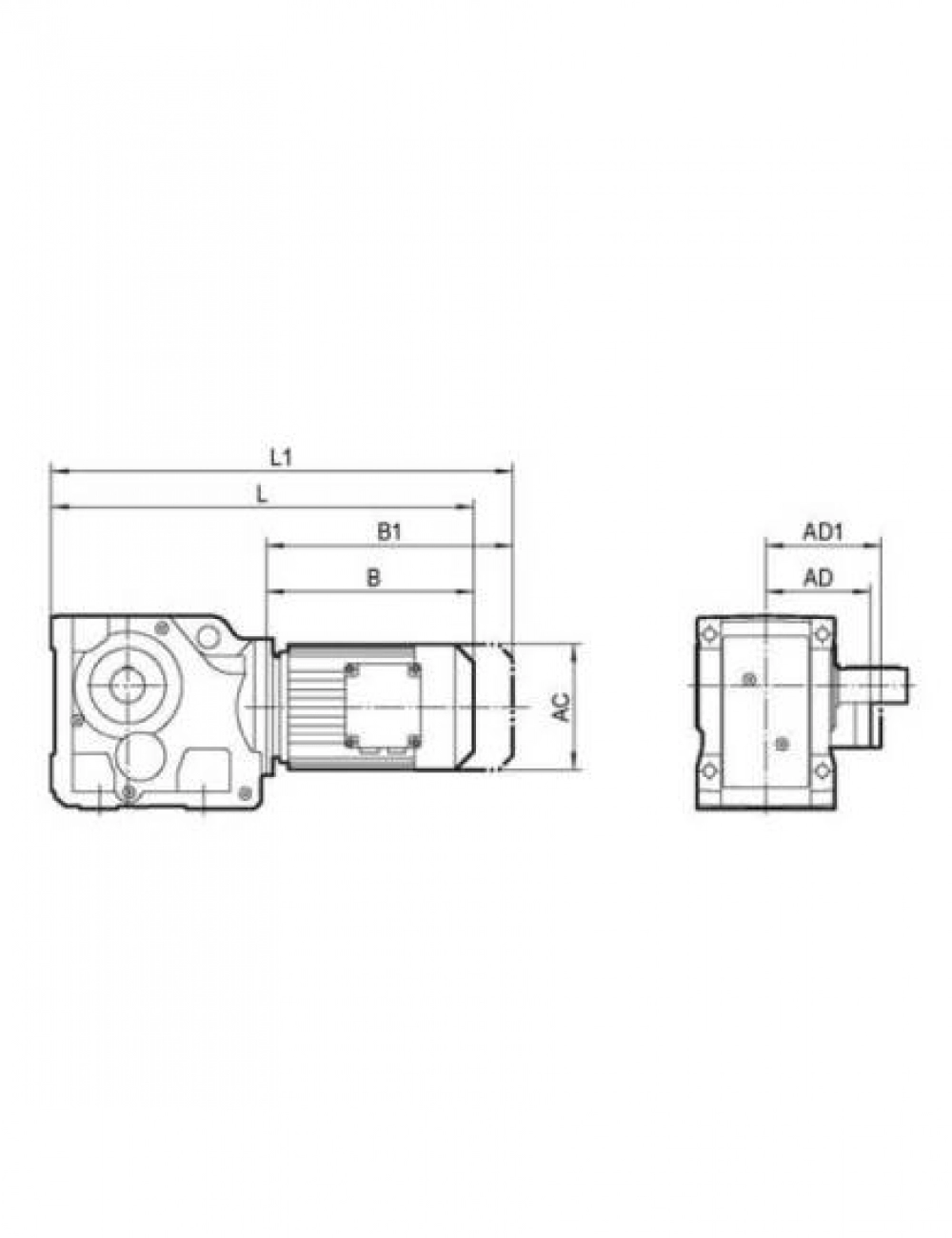

Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 374 mm , L = 915 mm
Price
Model
TK 108 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 9.8-12 r/min
Output torque (M2n) = 2490-2940 Nm
Gear unit actual ratio (i) = 121.46-143.47
Service factor (Fs) = 2.7-3.2
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 325 mm , L = 866 mm
Price
Model
TK 98 - MY132S6
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 7.6-11 r/min
Output torque (M2n) = 2640-3780 Nm
Gear unit actual ratio (i) = 86.52-123.93
Service factor (Fs) = 1.15-1.65
Dimension : AC = 221 mm , AD = 179 mm , AD1 = 182 mm , B = 380 mm , L = 817 mm
Price
Model
TK 98 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 13-25 r/min
Output torque (M2n) = 1160-2150 Nm
Gear unit actual ratio (i) = 56.55-105.13
Service factor (Fs) = 2.0-3.7
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 331 mm , L = 768 mm
Price
Model
TK 88 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 16-38 r/min
Output torque (M2n) = 745-1770 Nm
Gear unit actual ratio (i) = 36.52-86.34
Service factor (Fs) = 1.55-3.4
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 337 mm , L = 726 mm
Price
Model
TK 78 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 31-45 r/min
Output torque (M2n) = 920-630 Nm
Gear unit actual ratio (i) = 30.89-45.16
Service factor (Fs) = 1.70-2.5
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 341 mm , L = 655 mm
Price
Model
TK 68 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 106-145 r/min
Output torque (M2n) = 198-270 Nm
Gear unit actual ratio (i) = 9.66-13.22
Service factor (Fs) = 2.1-2.5
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 349 mm , L = 618 mm
Price
Model
TK 58 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 62-298 r/min
Output torque (M2n) = 96-465 Nm
Gear unit actual ratio (i) = 4.69-22.71
Service factor (Fs) = 1.30-3.1
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 349 mm , L = 602 mm
Price
Model
TK 48 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 103-302 r/min
Output torque (M2n) = 95-280 Nm
Gear unit actual ratio (i) = 4.64-13.65
Service factor (Fs) = 1.30-2.2
Dimension : AC = 197 mm , AD = 166 mm , AD1 = 166 mm , B = 349 mm , L = 586 mm
Price
Model
TK 38 - MY100L4
Model description
Rated power (P1n) = 3.0 kW
Output speed (n2) = 157-352 r/min
Output torque (M2n) = 81-182 Nm
Gear unit actual ratio (i) = 3.98-8.91
Service factor (Fs) = 0.90-1.55
Dimension : AC = 16 mm , AD = 166 mm , AD1 = 166 mm , B = 358 mm , L = 560 mm
Price
