PRODUCT
![]()
ชื่อรุ่น :

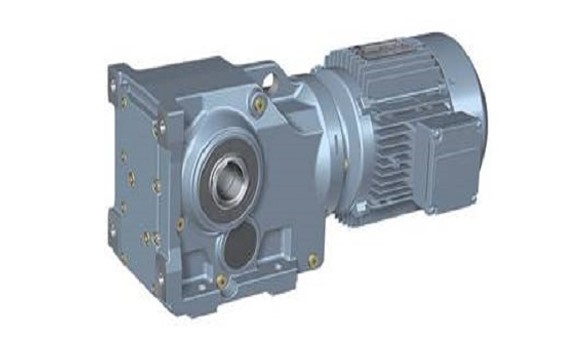

TK Series - 0.55 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 88 - MY90L8
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 3.9-4.6 r/min
Output torque (M2n) = 1140-1350 Nm
Gear unit actual ratio (i) = 147.32-174.19
Service factor (Fs) = 2.0-2.4

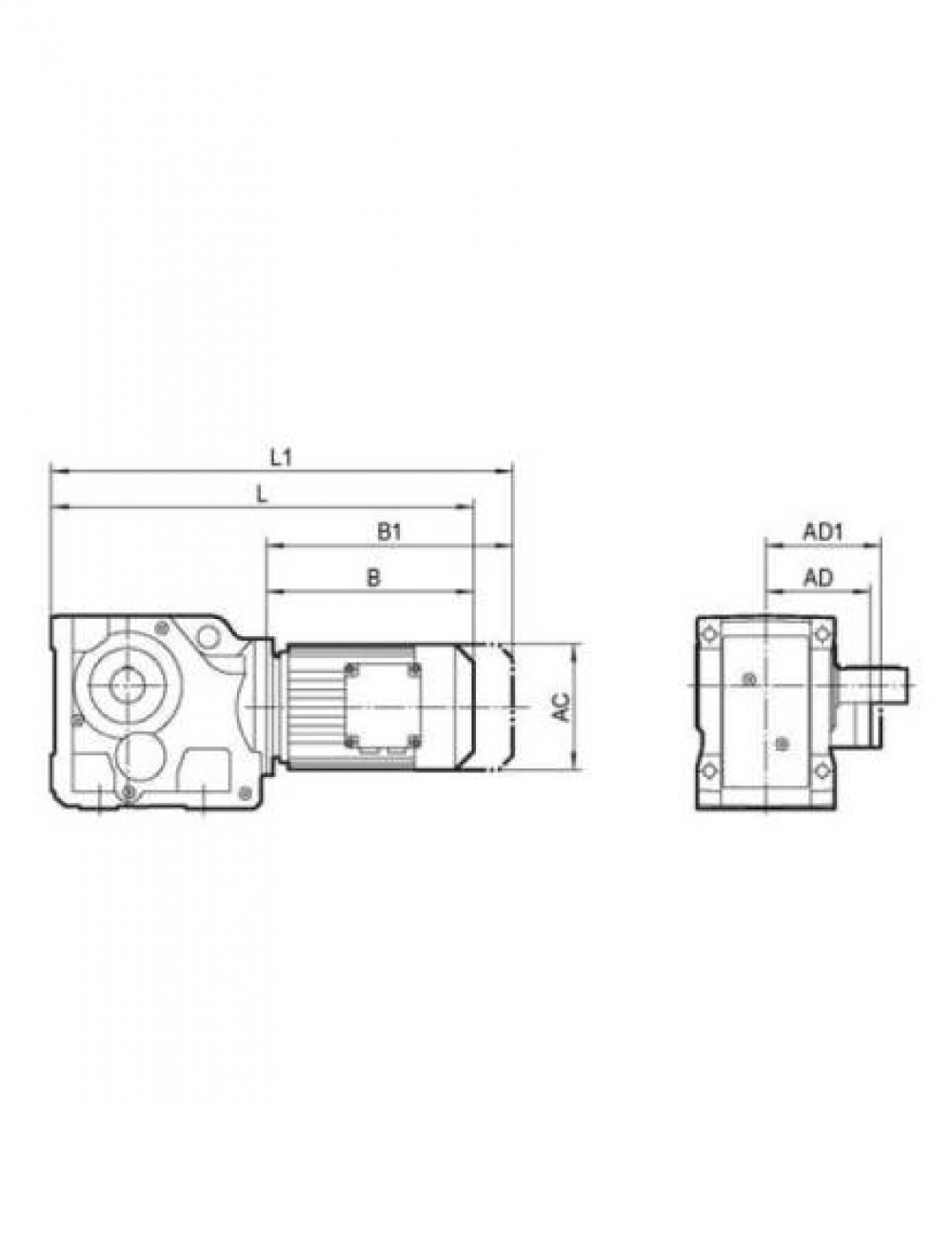

Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 257 mm , L = 646 mm
Price
Model
TK 88 - MY80N6
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 4.6-6.1 r/min
Output torque (M2n) = 860-1150 Nm
Gear unit actual ratio (i) = 147.32-197.37
Service factor (Fs) = 2.3-2.4
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 238 mm , L = 627 mm
Price
Model
TK 78 - MY90L8
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 5.0-7.0 r/min
Output torque (M2n) = 750-1040 Nm
Gear unit actual ratio (i) = 97.05-197.37
Service factor (Fs) = 1.50-2.1
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 78 - MY80N6
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 5.8-7.9 r/min
Output torque (M2n) = 665-900 Nm
Gear unit actual ratio (i) = 113.56-154.02
Service factor (Fs) = 1.70-2.3
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 243 mm , L = 557 mm
Price
Model
TK 78 - MY80K4
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 375-595 r/min
Output torque (M2n) = 97.05-154.02 Nm
Gear unit actual ratio (i) = 2.6-4.1
Service factor (Fs) =
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 243 mm , L = 557 mm
Price
Model
TK 68 - MY80N6
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 7.3-12 r/min
Output torque (M2n) = 445-720 Nm
Gear unit actual ratio (i) = 76.37-123.54
Service factor (Fs) = 1.15-1.85
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 518 mm
Price
Model
TK 68 - MY80K4
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 11-18 r/min
Output torque (M2n) = 295-475 Nm
Gear unit actual ratio (i) = 76.37-123.54
Service factor (Fs) = 1.70-2.8
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 518 mm
Price
Model
TK 58 - MY80N6
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 8.3-16 r/min
Output torque (M2n) = 335-630 Nm
Gear unit actual ratio (i) = 57.42-108.29
Service factor (Fs) = 0.95-1.80
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 502 mm
Price
Model
TK 58 - MY80K4
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 11-24 r/min
Output torque (M2n) = 220-480 Nm
Gear unit actual ratio (i) = 57.42-123.85
Service factor (Fs) = 1.25-2.7
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 502 mm
Price
Model
TK 48 - MY80K4
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 21-30 r/min
Output torque (M2n) = 178-245 Nm
Gear unit actual ratio (i) = 46.03-63.30
Service factor (Fs) = 1.65-2.3
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 486 mm
Price
Model
TK 38 - MY80K4
Model description
Rated power (P1n) = 0.55 kW
Output speed (n2) = 130-342 r/min
Output torque (M2n) = 15-41 Nm
Gear unit actual ratio (i) = 3.98-10.49
Service factor (Fs) = 4.0-8.1
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 256 mm , L = 458 mm
Price
