PRODUCT
![]()
ชื่อรุ่น :

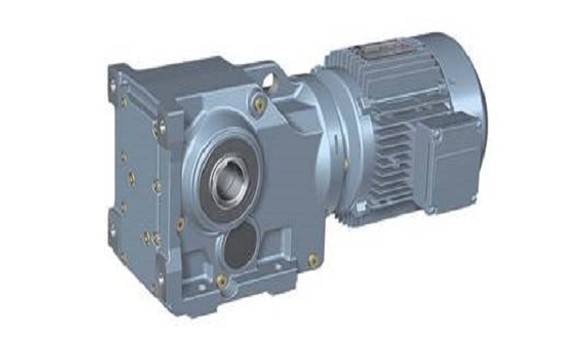

TK Series - 0.37 kW
แบรนด์
HASCON
รายละเอียด :
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 88 - MY90S8
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 3.9-4.6 r/min
Output torque (M2n) = 765-910 Nm
Gear unit actual ratio (i) = 147.32-174.19
Service factor (Fs) = 3.0-3.5

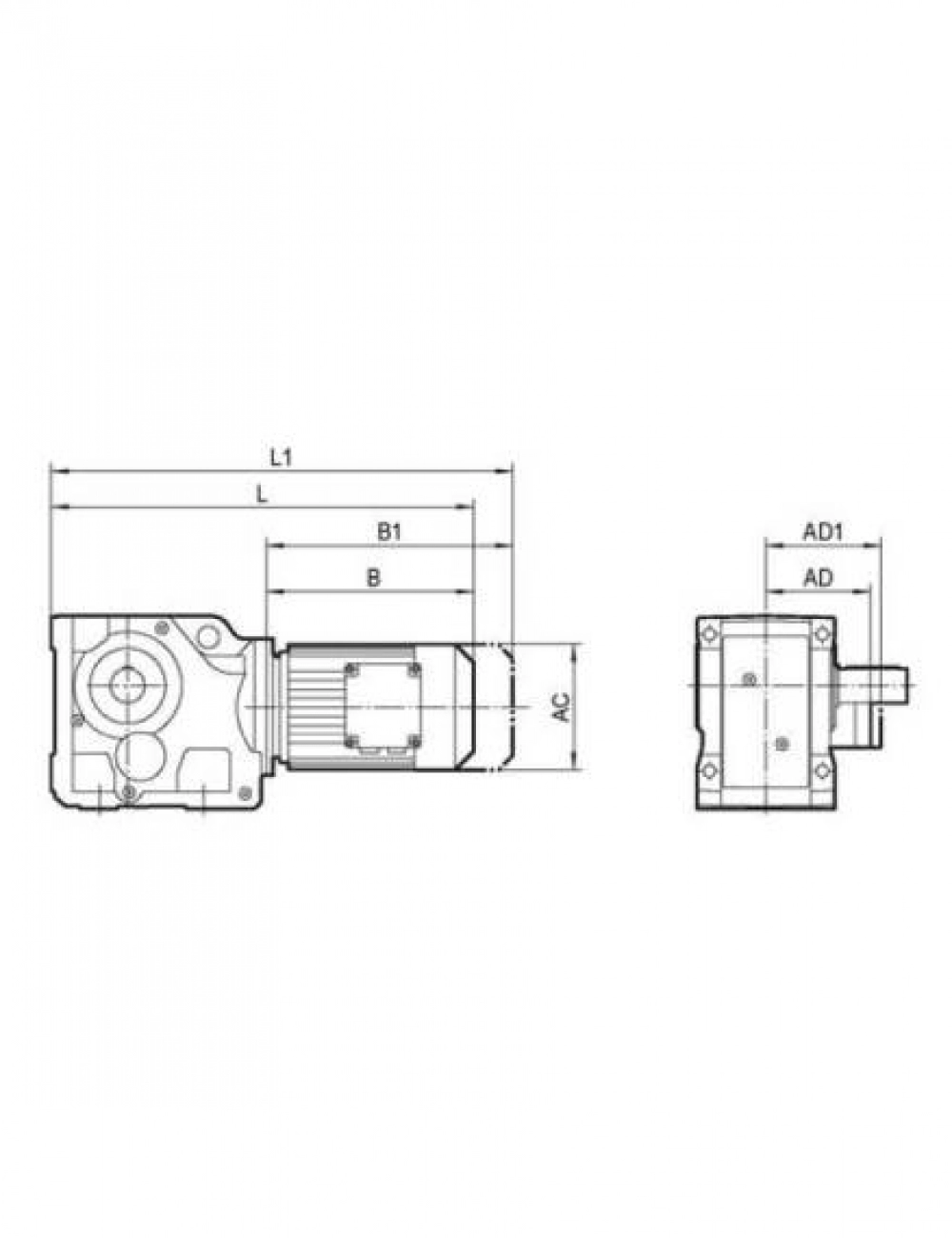

Dimension : AC = mm , AD = mm , AD1 = mm , B = mm , L = mm
Price
Model
TK 88 - MY80K6
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 4.6-5.2 r/min
Output torque (M2n) = 685-775 Nm
Gear unit actual ratio (i) = 174.19-197.37
Service factor (Fs) = 3.5-4.0
Dimension : AC = mm , AD = mm , AD1 = mm , B = mm , L = mm
Price
Model
TK 78 - MY90S8
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 5.8-7.9 r/min
Output torque (M2n) = 445-605 Nm
Gear unit actual ratio (i) = 113.56-154.02
Service factor (Fs) = 2.6-3.5
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 575 mm
Price
Model
TK 78 - MY80K6
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 5.8-7.9 r/min
Output torque (M2n) = 445-605 Nm
Gear unit actual ratio (i) = 113.56-154.02
Service factor (Fs) = 2.6-3.5
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 243 mm , L = 557 mm
Price
Model
TK 78 - MY71D4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 7.2-9.0 r/min
Output torque (M2n) = 395-490 Nm
Gear unit actual ratio (i) = 154.02-192.18
Service factor (Fs) = 3.0-3.9
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 193 mm , L = 507 mm
Price
Model
TK 68 - MY90S8
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 6.3-7.5 r/min
Output torque (M2n) = 470-560 Nm
Gear unit actual ratio (i) = 90.04-108.03
Service factor (Fs) = 1.45-1.75
Dimension : AC = 197 mm , AD = 154 mm , AD1 = 161 mm , B = 261 mm , L = 538 mm
Price
Model
TK 68 - MY80K6
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 7.3-10 r/min
Output torque (M2n) = 355-485 Nm
Gear unit actual ratio (i) = 90.04-123.54
Service factor (Fs) = 2.3-1.70
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 247 mm , L = 518 mm
Price
Model
TK 68 - MY71D4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 9.5-18 r/min
Output torque (M2n) = 196-370 Nm
Gear unit actual ratio (i) = 76.37-144.79
Service factor (Fs) = 2.2-4.2
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 199 mm , L = 468 mm
Price
Model
TK 58 - MY80K6
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 7.3-13 r/min
Output torque (M2n) = 270-485 Nm
Gear unit actual ratio (i) = 69.12-123.85
Service factor (Fs) = 1.25-2.2
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 502 mm
Price
Model
TK 58 - MY71D4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 9.5-20 r/min
Output torque (M2n) = 177-370 Nm
Gear unit actual ratio (i) = 69.12-145.14
Service factor (Fs) = 1.60-3.4
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 199 mm , L = 452 mm
Price
Model
TK 48 - MY80K6
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 8.6-12 r/min
Output torque (M2n) = 295-410 Nm
Gear unit actual ratio (i) = 75.20-104.37
Service factor (Fs) = 1.00-1.35
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 186 mm
Price
Model
TK 48 - MY71D4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 15-22 r/min
Output torque (M2n) = 162-235 Nm
Gear unit actual ratio (i) = 63.30-90.86
Service factor (Fs) = 1.70-2.5
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 199 mm , L = 136 mm
Price
Model
TK 38 - MY71D4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 68-257 r/min
Output torque (M2n) = 14-52 Nm
Gear unit actual ratio (i) = 5.36-20.19
Service factor (Fs) = 3.6-10
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 206 mm , L = 408 mm
Price
