PRODUCT
![]()
ชื่อรุ่น :

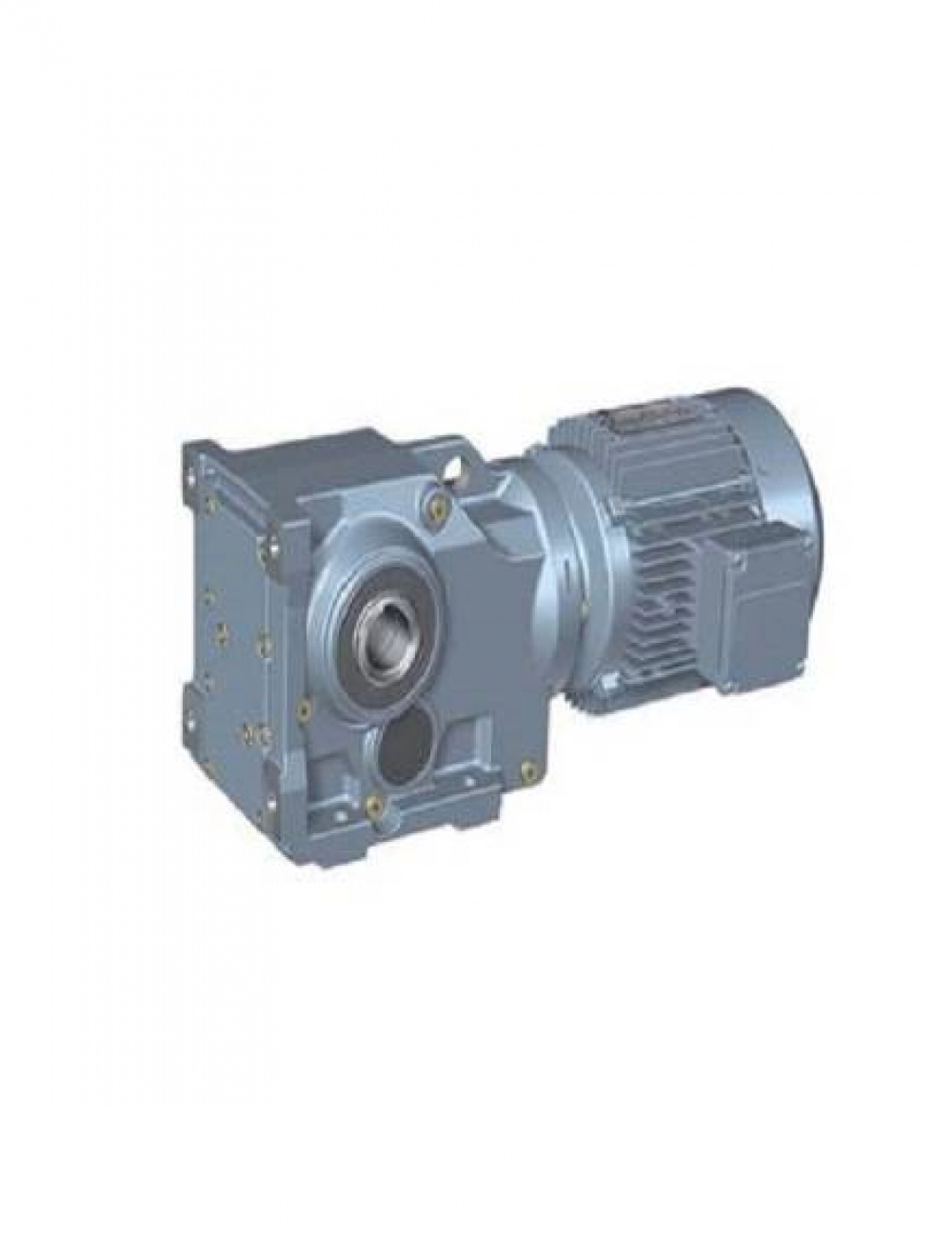

TK Series - 0.25 kW
แบรนด์
HASCON
รายละเอียด :
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 78 - MY80N8
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 4.4-6.0 r/min
Output torque (M2n) = 400-540 Nm
Gear unit actual ratio (i) = 113.56-154.02
Service factor (Fs) = 2.9-3.9
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 243 mm , L = 557 mm
Price
Model
TK 78 - MY71D6
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 4.6-6.5 r/min
Output torque (M2n) = 365-520 Nm
Gear unit actual ratio (i) = 135.28-192.18
Service factor (Fs) =
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 193 mm , L = 569 mm
Price
Model
TK 68 - MY80N8
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 5.5-7.5 r/min
Output torque (M2n) = 315-435 Nm
Gear unit actual ratio (i) = 90.04-123.54
Service factor (Fs) = 1.90-2.6
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 249 mm , L = 518 mm
Price
Model
TK 68 - MY71D6
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 6.1-8.6 r/min
Output torque (M2n) = 280-395 Nm
Gear unit actual ratio (i) = 102.62-144.79
Service factor (Fs) = 2.1-3.0
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 199 mm , L = 468 mm
Price
Model
TK 68 - MY63L4
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 9.0-13 r/min
Output torque (M2n) = 189-265 Nm
Gear unit actual ratio (i) = 102.62-144.79
Service factor (Fs) = 3.1-4.4
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 454 mm
Price
Model
TK 58 - MY71D6
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 6.1-11 r/min
Output torque (M2n) = 210-395 Nm
Gear unit actual ratio (i) = 76.56-145.14
Service factor (Fs) = 1.50-2.9
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 263 mm , L = 452 mm
Price
Model
TK 58 - MY63L4
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 9.0-17 r/min
Output torque (M2n) = 141-265 Nm
Gear unit actual ratio (i) = 76.56-145.14
Service factor (Fs) = 2.3-4.3
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 438 mm
Price
Model
TK 48 - MY71D6
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 6.7-10 r/min
Output torque (M2n) = 230-360 Nm
Gear unit actual ratio (i) = 85.12-131.87
Service factor (Fs) = 1.10-1.75
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 199 mm , L = 436 mm
Price
Model
TK 48 - MY63L4
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 9.9-15 r/min
Output torque (M2n) = 156-240 Nm
Gear unit actual ratio (i) = 85.12-131.87
Service factor (Fs) = 1.65-2.6
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 422 mm
Price
Model
TK 38 - MY71D6
Model description
Rated power (P1n) = 0.25 kW
Output speed (n2) = 11-18 r/min
Output torque (M2n) = 135-225 Nm
Gear unit actual ratio (i) = 49.79-83.69
Service factor (Fs) = 0.90-1.50
Dimension : AC = 145 mm , AD = 122 mm , AD1 = 127 mm , B = 206 mm , L = 408 mm
Price
Model
TK 38 - MY63L4
Model description
Rated power (P1n) = 0.37 kW
Output speed (n2) = 1.9-3.7 r/min
Output torque (M2n) = 830-1630 Nm
Gear unit actual ratio (i) = 373-726
Service factor (Fs) = 1.65-3.2
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 191mm , L = 393 mm
Price
