PRODUCT
![]()
ชื่อรุ่น :

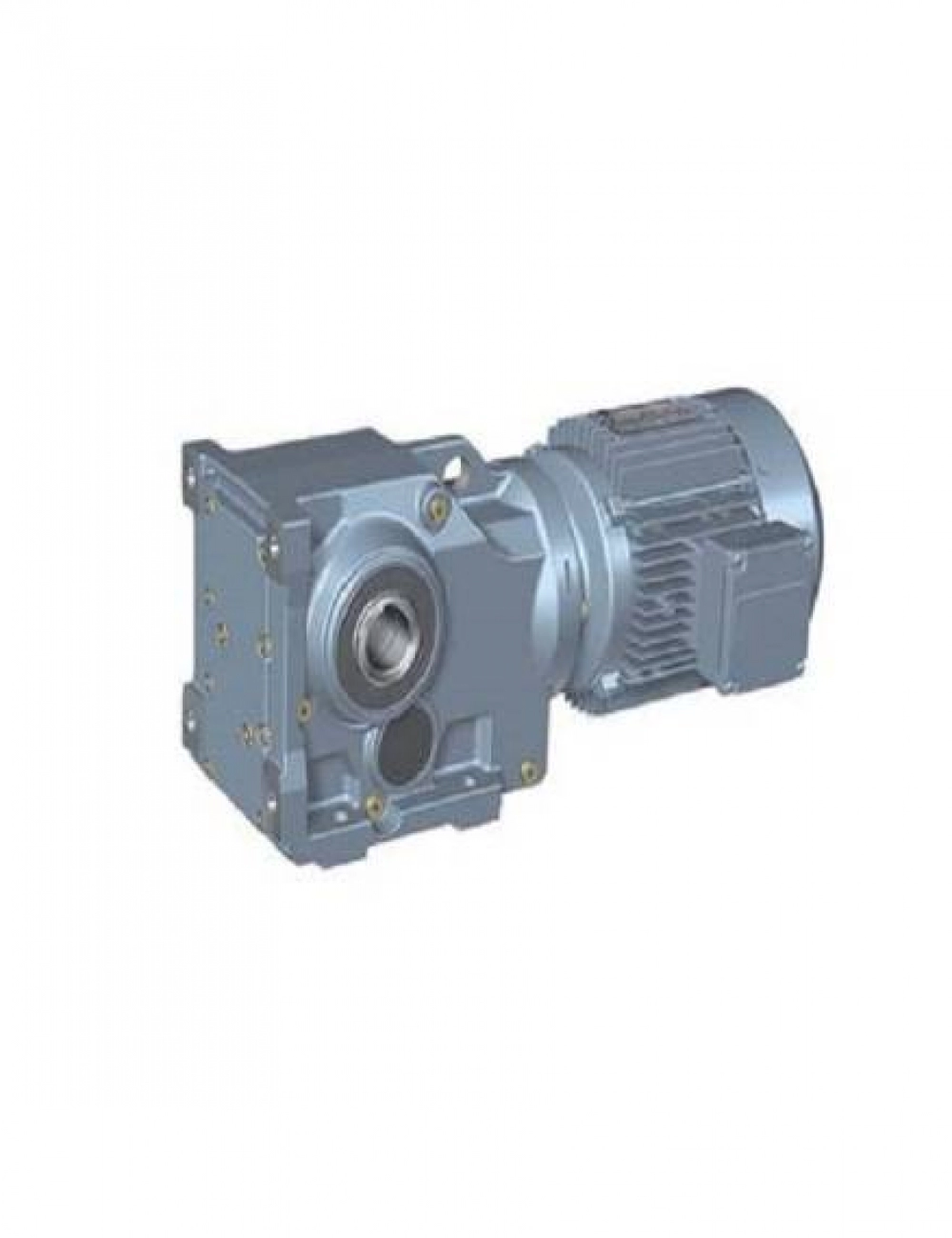

TK Series - 0.18 kW
แบรนด์
HASCON
รายละเอียด :
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
TK 68 - MY63L6
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 6.0-8.5 r/min
Output torque (M2n) = 205-285 Nm
Gear unit actual ratio (i) = 102.62-144.79
Service factor (Fs) = 2.9-4.0
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 454 mm
Price
Model
TK 68 - MY63M4
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 9.1-12 r/min
Output torque (M2n) = 141-189 Nm
Gear unit actual ratio (i) = 108.03-144.79
Service factor (Fs) = 4.4-5.8
Dimension : = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 454 mm
Price
Model
TK 58 - MY63L6
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 6.0-9.6 r/min
Output torque (M2n) = 178-285 Nm
Gear unit actual ratio (i) = 30.26-145.14
Service factor (Fs) = 2.1-3.4
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 438 mm
Price
Model
TK 58 - MY63M4
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 9.1-17 r/min
Output torque (M2n) = 100-189 Nm
Gear unit actual ratio (i) = 76.56-145.14
Service factor (Fs) = 3.2-6.0
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 438 mm
Price
Model
TK 48 - MY63L6
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 6.6-10 r/min
Output torque (M2n) = 168-260 Nm
Gear unit actual ratio (i) = 85.12-131.87
Service factor (Fs) = 1.55-2.4
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 422 mm
Price
Model
TK 48 - MY63M4
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 10-16 r/min
Output torque (M2n) = 111-172 Nm
Gear unit actual ratio (i) = 85.12
Service factor (Fs) = 2.3-3.6
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 185 mm , L = 422 mm
Price
Model
TK 38 - MY63L6
Model description
Rated power (P1n) = 8.2-12 kW
Output speed (n2) = 143-210 r/min
Output torque (M2n) = 72.54-106.38 Nm
Gear unit actual ratio (i) = 0.95-1.40
Service factor (Fs) =
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 191mm , L = 393 mm
Price
Model
TK 38 - MY63M4
Model description
Rated power (P1n) = 0.18 kW
Output speed (n2) = 12-166 r/min
Output torque (M2n) = 10-139 Nm
Gear unit actual ratio (i) = 7.96-106.38
Service factor (Fs) = 1.45-15
Dimension : AC = 132 mm , AD = 105 mm , AD1 = 105 mm , B = 191mm , L = 393 mm
Price
