ชื่อรุ่น :

5 Groove SPZ

แบรนด์

SKF

รายละเอียด :

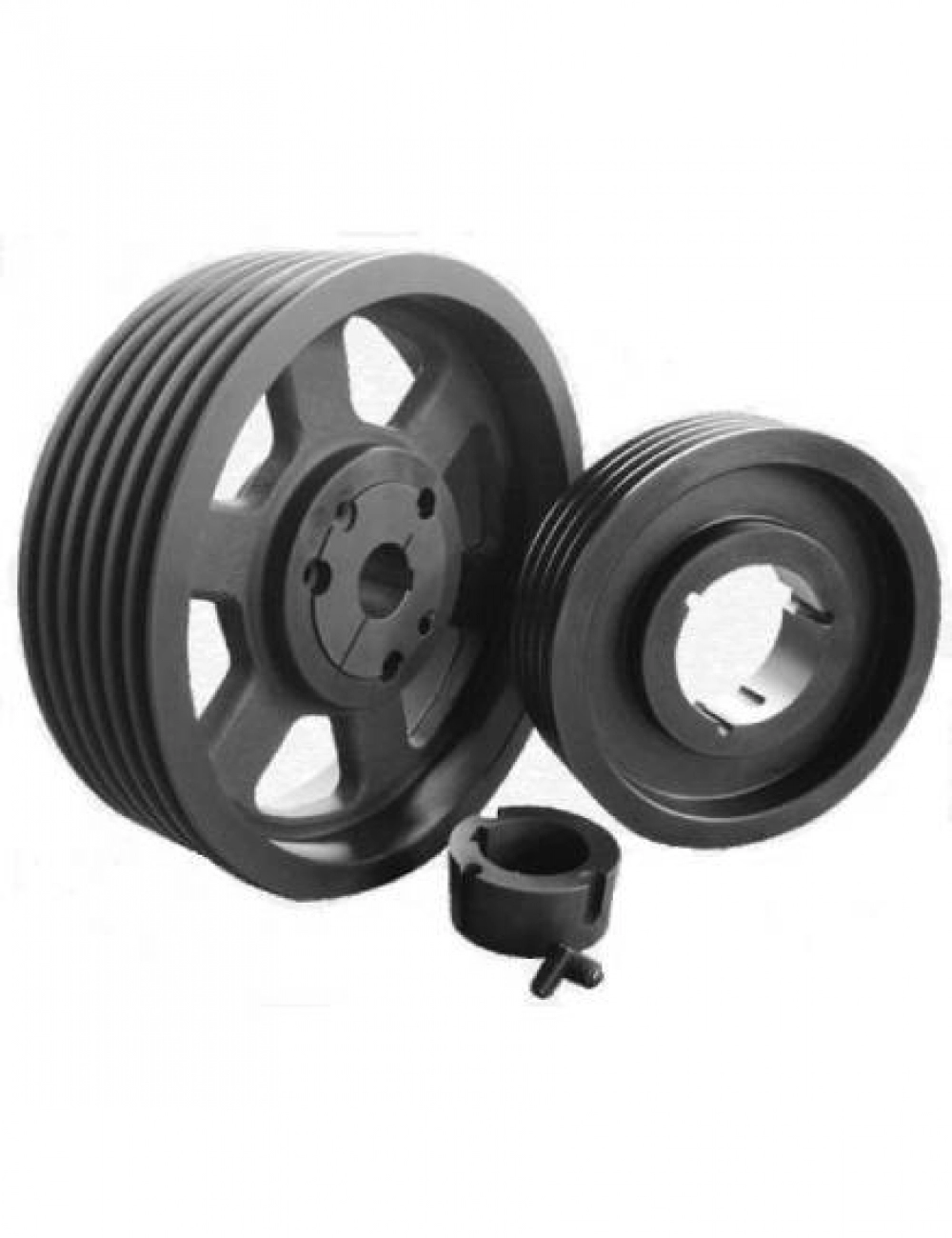

Pulleys SPZ 5 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 5SPZ85TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 85 mm , OD = 89 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 64 mm
Price
Model
PHP 5SPZ90TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 90 mm , OD = 94 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 64 mm
Price
Model
PHP 5SPZ95TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 95 mm , OD = 99 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 64 mm
Price
Model
PHP 5SPZ100TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 100 mm , OD = 104 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 64 mm
Price
Model
PHP 5SPZ106TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 106 mm , OD = 110 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 64 mm
Price
Model
PHP 5SPZ112TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 112 mm , OD = 116 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 64 mm
Price
Model
PHP 5SPZ118TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 118 mm , OD = 122 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 64 mm
Price
Model
PHP 5SPZ125TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 125 mm , OD = 129 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 64 mm
Price
Model
PHP 5SPZ132TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 132 mm , OD = 136 mm , Pulley Type = 6 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ140TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 140 mm , OD = 144 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ150TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 150 mm , OD = 154 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ160TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 160 mm , OD = 164 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ170TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 170 mm , OD = 174 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ180TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 180 mm , OD = 184 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ190TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 190 mm , OD = 194 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ200TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 200 mm , OD = 204 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm
Price
Model
PHP 5SPZ224TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 224 mm , OD = 228 mm , Pulley Type = 7 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm , H = 120 mm
Price
Model
PHP 5SPZ250TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 250 mm , OD = 254 mm , Pulley Type = 5 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm , H = 120 mm
Price
Model
PHP 5SPZ280TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 280 mm , OD = 284 mm , Pulley Type = 5 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm , H = 120 mm
Price
Model
PHP 5SPZ315TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 315 mm , OD = 319 mm , Pulley Type = 5 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm , H = 120 mm
Price
Model
PHP 5SPZ355TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 355 mm , OD = 359 mm , Pulley Type = 5 , Bore min = 16 mm , Bore max = 60 mm ,F = 64 mm , H = 120 mm
Price
Model
PHP 5SPZ400TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 400 mm , OD = 404 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 64 mm , H = 150 mm
Price
Model
PHP 5SPZ450TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 450 mm , OD = 454 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 64 mm , H = 150 mm
Price
Model
PHP 5SPZ500TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 500 mm , OD = 504 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 64 mm , H = 150 mm
Price
Model
PHP 5SPZ630TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 630 mm , OD = 634 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 64 mm , H = 150 mm
Price
Model
PHP 5SPZ800TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 800 mm , OD = 804 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 64 mm , H = 170 mm
Price
สอบถามเพิ่มเติม
