ชื่อรุ่น :

3 Groove SPZ

แบรนด์

SKF

รายละเอียด :

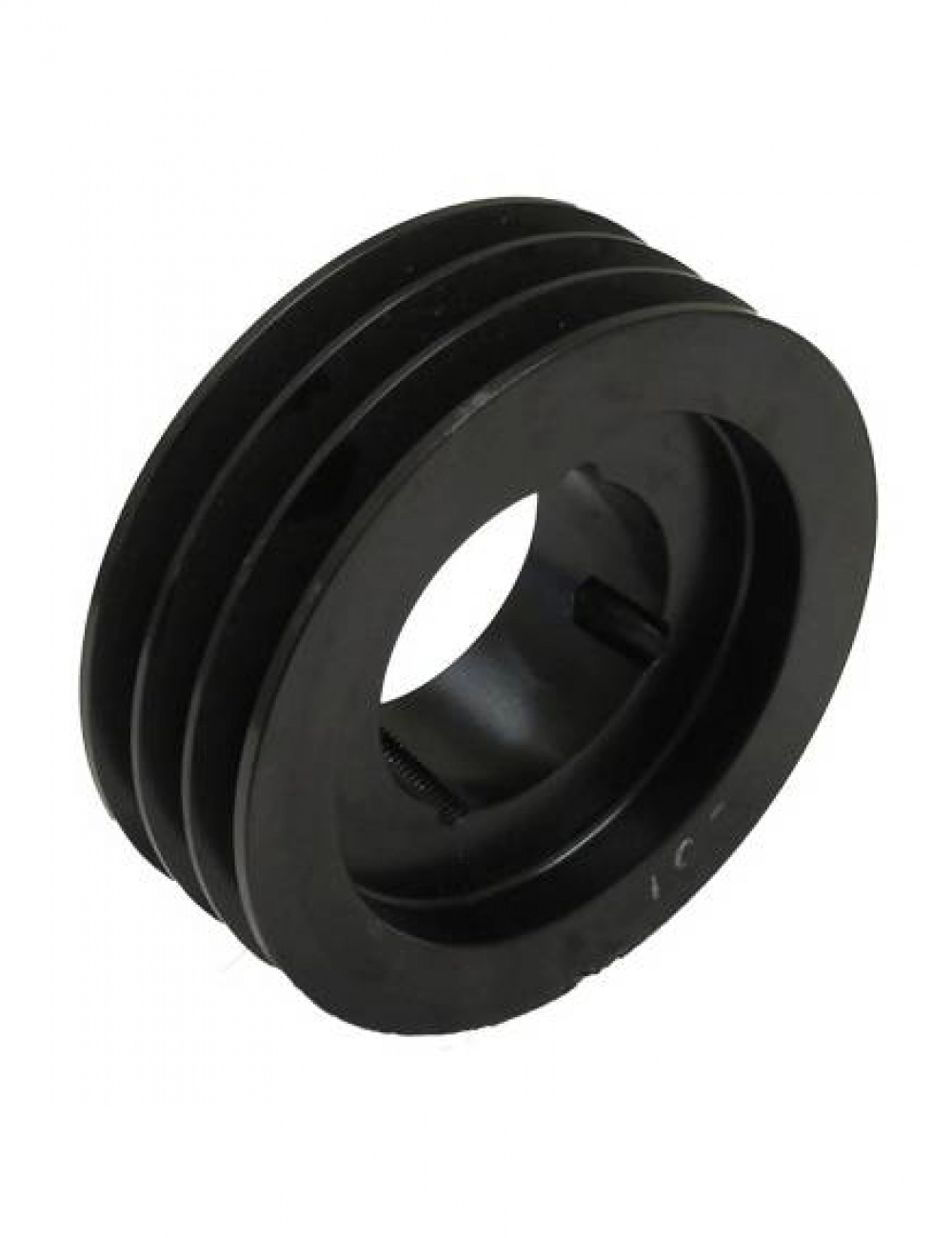

Pulleys SPZ 3 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 3SPZ63TB
Model description

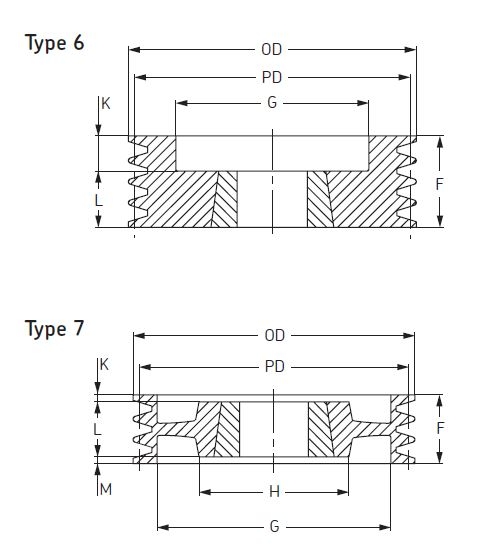

Bush no. 1108 DIMENSIONS : Pitch diameter = 63 mm , OD = 67 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = 40 mm
Price
Model
PHP 3SPZ67TB
Model description
Bush no. 1108 DIMENSIONS : Pitch diameter = 67 mm , OD = 71 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = 40 mm
Price
Model
PHP 3SPZ71TB
Model description
Bush no. 1108 DIMENSIONS : Pitch diameter = 71 mm , OD = 75 mm , Pulley Type = 6 , Bore min = 9 mm , Bore max = 28 mm ,F = 40 mm
Price
Model
PHP 3SPZ75TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 75 mm , OD = 79 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 40 mm
Price
Model
PHP 3SPZ80TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 80 mm , OD = 84 mm , Pulley Type = 6 , Bore min = 11 mm , Bore max = 32 mm ,F = 40 mm
Price
Model
PHP 3SPZ85TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 85 mm , OD = 89 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 40 mm
Price
Model
PHP 3SPZ90TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 90 mm , OD = 94 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 40 mm
Price
Model
PHP 3SPZ95TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 95 mm , OD = 99 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 40 mm
Price
Model
PHP 3SPZ100TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 100 mm , OD = 104 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 40 mm
Price
Model
PHP 3SPZ106TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 106 mm , OD = 110 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 42 mm ,F = 40 mm
Price
Model
PHP 3SPZ112TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 112 mm , OD = 116 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ118TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 122 mm , OD = 122 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 14 mm ,F = 50 mm
Price
Model
PHP 3SPZ125TB
Model description

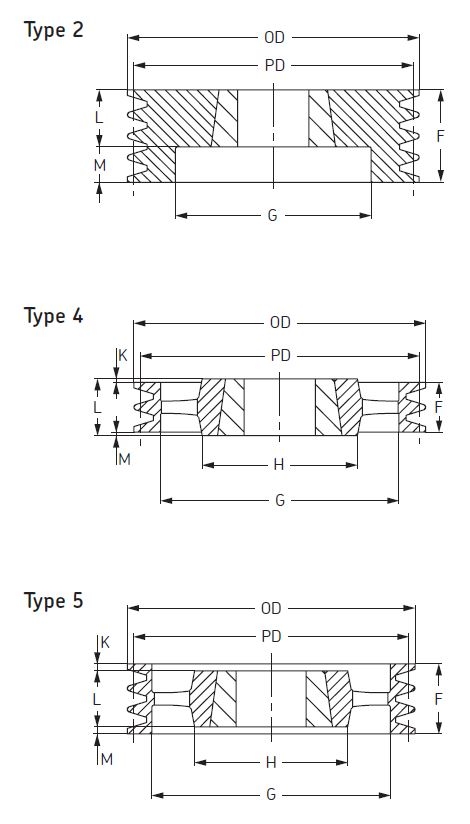

Bush no. 2012 DIMENSIONS : Pitch diameter = 125 mm , OD = 129 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ132TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 132 mm , OD = 136 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ140TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 140 mm , OD = 144 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ150TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 150 mm , OD = 154 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ160TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 160 mm , OD = 164 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ170TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 170 mm , OD = 174 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ180TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 180 mm , OD = 184 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm
Price
Model
PHP 3SPZ190TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 190 mm , OD = 194 mm , Pulley Type = 7 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm , H = 100 mm
Price
Model
PHP 3SPZ200TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 200 mm , OD = 204 mm , Pulley Type = 7 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm , H = 100 mm
Price
Model
PHP 3SPZ224TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 224 mm , OD = 228 mm , Pulley Type = 7 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm , H = 100 mm
Price
Model
PHP 3SPZ250TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 250 mm , OD = 254 mm , Pulley Type = 5 , Bore min = 14 mm , Bore max = 50 mm ,F = 40 mm , H = 100 mm
Price
Model
PHP 3SPZ280TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 280 mm , OD = 284 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ315TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 315 mm , OD = 319 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ355TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 355 mm , OD = 359 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ400TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 400 mm , OD = 404 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ450TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 450 mm , OD = 454 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ500TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 500 mm , OD = 504 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ630TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 630 mm , OD = 634 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 40 mm , H = 120 mm
Price
Model
PHP 3SPZ800TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 800 mm , OD = 804 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 40 mm , H = 150 mm
Price
สอบถามเพิ่มเติม
บริษัท ทีพีเอส แบริ่ง แอนด์ โซลูชั่นส์ จำกัด tpsbearing 087-549-6591 sales@tpsbearing.com
