ชื่อรุ่น :

6 Groove SPC

แบรนด์

SKF

รายละเอียด :

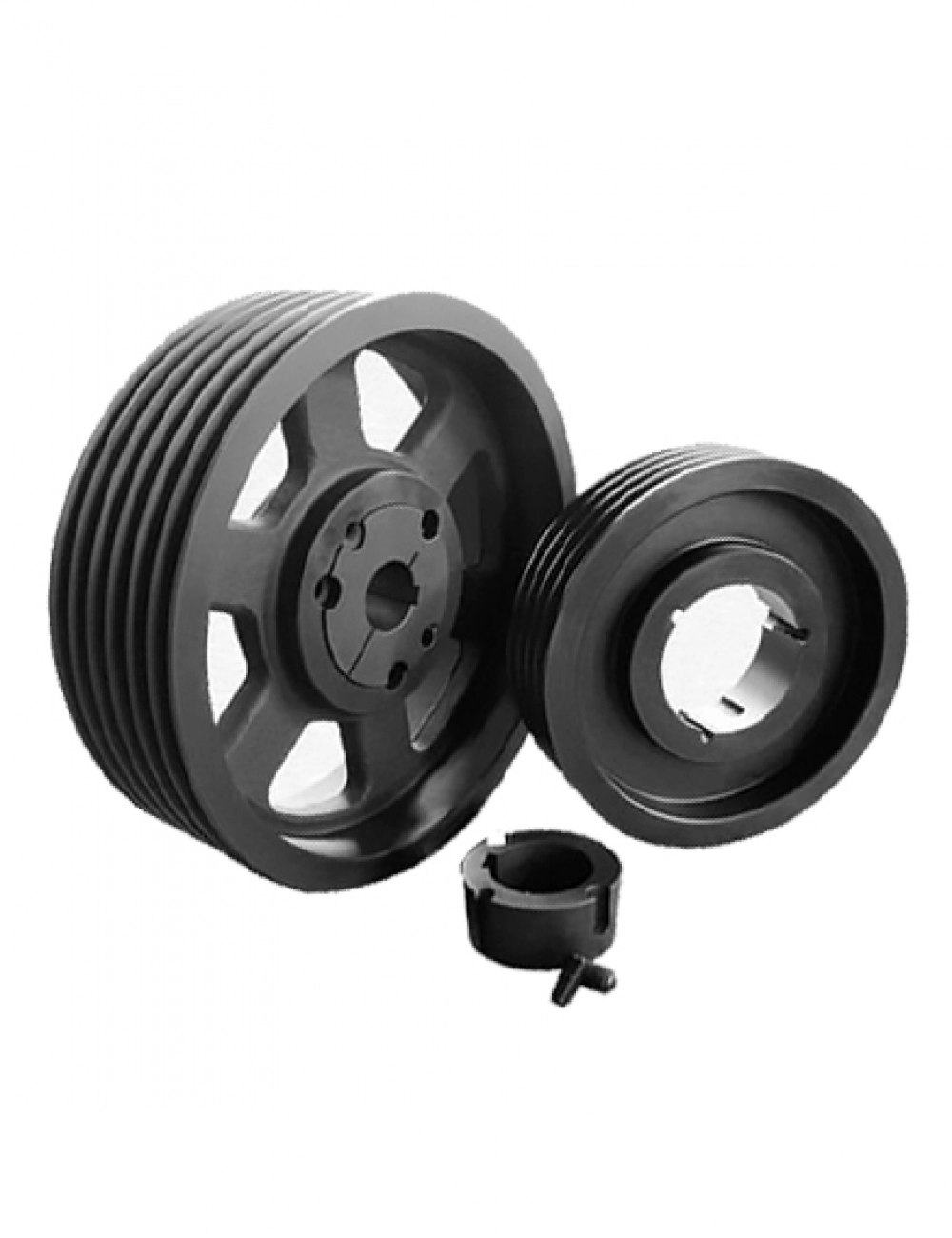

Pulleys SPC 6 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 6SPC200TB
Model description

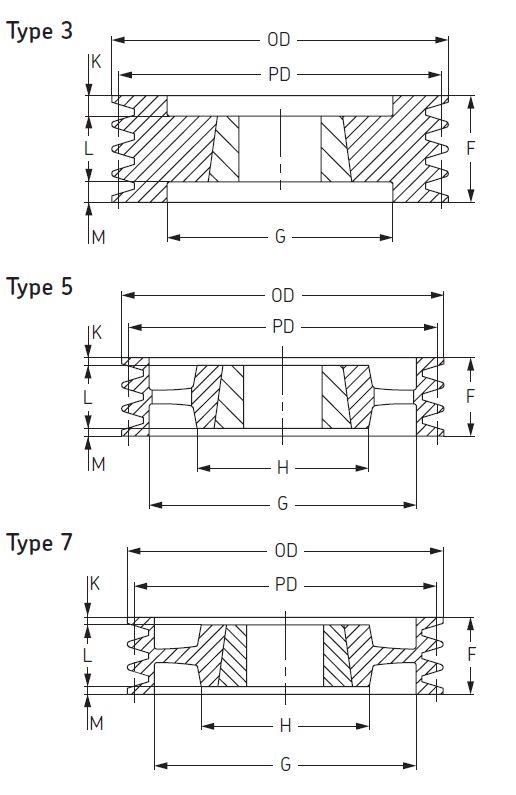

Bush no. 3535 DIMENSIONS : Pitch diameter = 200 mm , OD = 209.6 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC212TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 212 mm , OD = 221.6 mm , Pulley Type =3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC224TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 224 mm , OD = 233.6 mm , Pulley Type =3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC236TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 236 mm , OD = 245.6 mm , Pulley Type =3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC250TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 250 mm , OD = 259.6 mm , Pulley Type =3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC265TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 265 mm , OD = 274.6 mm , Pulley Type =3 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC280TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 280 mm , OD = 289.6 mm , Pulley Type =7 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm
Price
Model
PHP 6SPC300TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 300 mm , OD = 309.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm , H = 170 mm
Price
Model
PHP 6SPC315TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 315 mm , OD = 324.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm , H = 170 mm
Price
Model
PHP 6SPC335TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 335 mm , OD = 344.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm , H = 170 mm
Price
Model
PHP 6SPC355TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 355 mm , OD = 364.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 162 mm , H = 170 mm
Price
Model
PHP 6SPC375TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 375 mm , OD = 384.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 100 mm ,F = 162 mm , H = 200 mm
Price
Model
PHP 6SPC400TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 400 mm , OD = 409.6 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 100 mm ,F = 162 mm , H = 200 mm
Price
Model
PHP 6SPC425TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 425 mm , OD = 434.6 mm , Pulley Type = 7 , Bore min = 40 mm , Bore max = 100 mm ,F = 162 mm , H = 225 mm
Price
Model
PHP 6SPC450TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 450 mm , OD = 459.6 mm , Pulley Type = 7 , Bore min = 40 mm , Bore max = 110 mm ,F = 162 mm , H = 225 mm
Price
Model
PHP 6SPC475TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 475 mm , OD = 484.6 mm , Pulley Type = 7 , Bore min = 40 mm , Bore max = 110 mm ,F = 162 mm , H = 225 mm
Price
Model
PHP 6SPC500TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 500 mm , OD = 509.6 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 162 mm , H = 225 mm
Price
Model
PHP 6SPC530TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 530 mm , OD = 539.6 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC560TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 560 mm , OD = 569.6 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC630TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 630 mm , OD = 639.6 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC710TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 710 mm , OD = 719.6 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC800TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 800 mm , OD = 809.6 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC1000TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1000 mm , OD = 1009.6 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
Model
PHP 6SPC1250TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1250 mm , OD = 1259.6 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 162 mm , H = 245 mm
Price
