ชื่อรุ่น :

8 Groove SPB

แบรนด์

SKF

รายละเอียด :

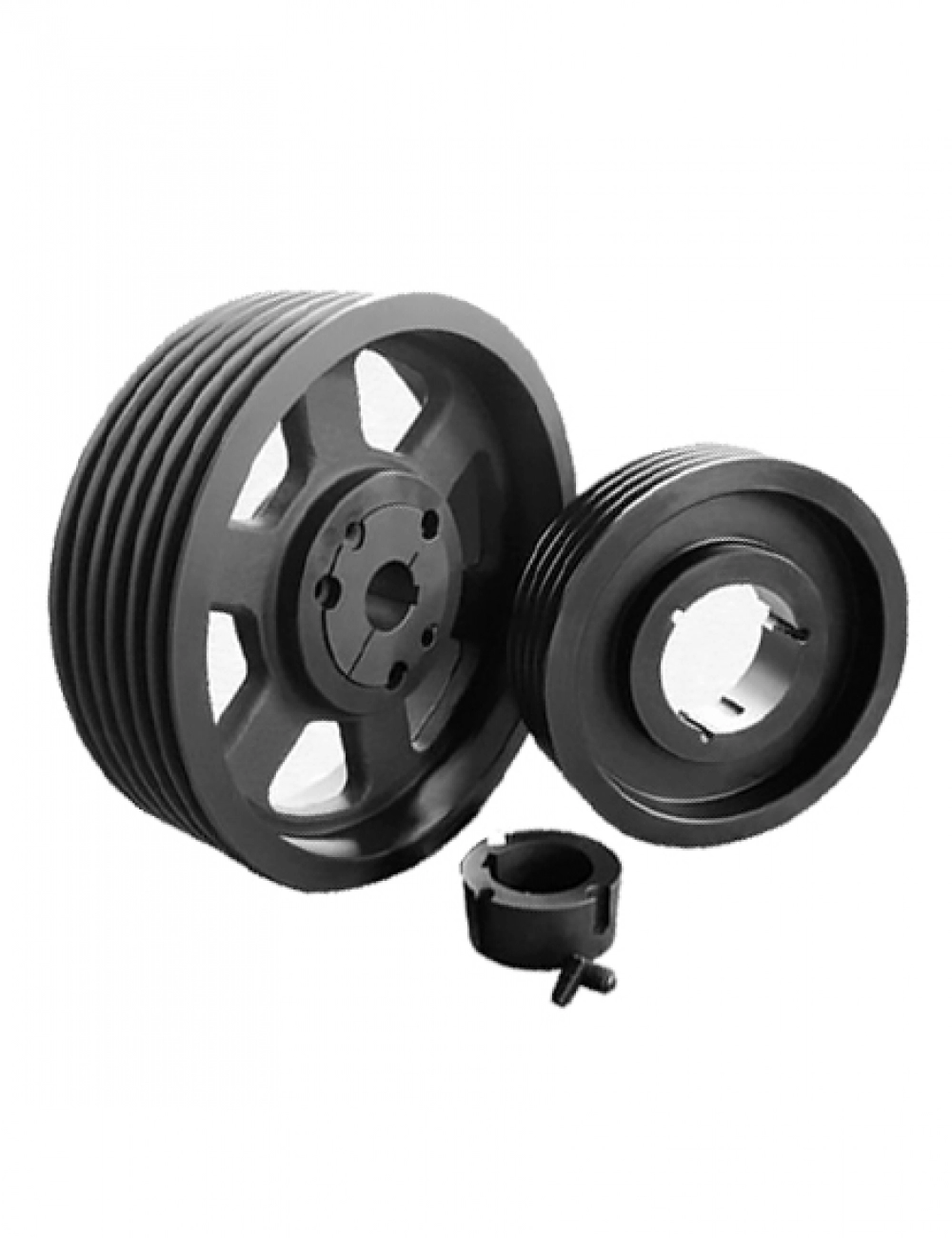

Pulleys SPB 8 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 8SPB140TB
Model description

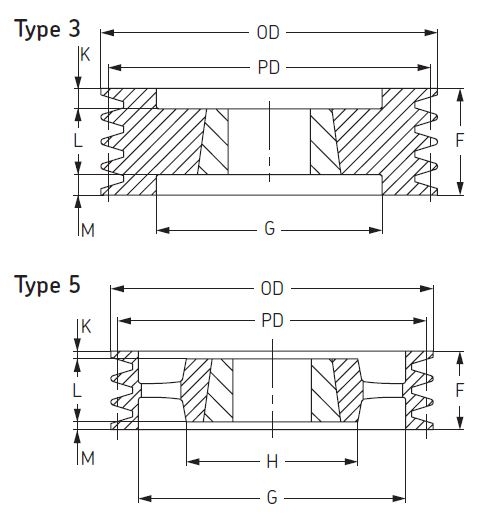

Bush no. 2517 DIMENSIONS : Pitch diameter = 140 mm , OD = 147 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 60 mm ,F = 158 mm
Price
Model
PHP 8SPB160TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 160 mm , OD = 167 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 158 mm
Price
Model
PHP 8SPB170TB
Model description
Bush no. 3030 DIMENSIONS : Pitch diameter = 170 mm , OD = 177 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 158 mm
Price
Model
PHP 8SPB180TB
Model description
Bush no. 3030 DIMENSIONS : Pitch diameter = 180 mm , OD = 187 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 158 mm
Price
Model
PHP 8SPB190TB
Model description
Bush no. 3030 DIMENSIONS : Pitch diameter = 190 mm , OD = 197 mm , Pulley Type = 3 , Bore min = 25 mm , Bore max = 75 mm ,F = 158 mm
Price
Model
PHP 8SPB200TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 200 mm , OD = 207 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB212TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 212 mm , OD = 219 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB224TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 224 mm , OD = 231 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB236TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 236 mm , OD = 243 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB250TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 250 mm , OD = 257 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB280TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 280 mm , OD = 287 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm
Price
Model
PHP 8SPB300TB
Model description

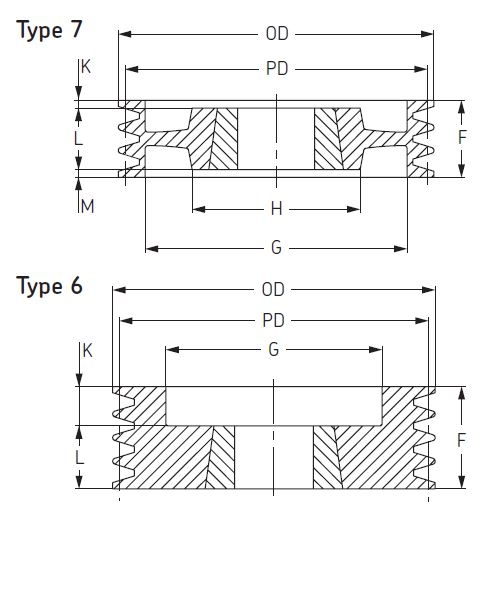

Bush no. 3535 DIMENSIONS : Pitch diameter = 300 mm , OD = 307 mm , Pulley Type = 6 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm , H = 170 mm
Price
Model
PHP 8SPB315TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 315 mm , OD = 322 mm , Pulley Type = 6 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm , H = 170 mm
Price
Model
PHP 8SPB335TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 335 mm , OD = 342 mm , Pulley Type = 6 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm , H = 170 mm
Price
Model
PHP 8SPB355TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 355 mm , OD = 362 mm , Pulley Type = 6 , Bore min = 35 mm , Bore max = 90 mm ,F = 158 mm , H = 170 mm
Price
Model
PHP 8SPB400TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 400 mm , OD = 407 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 100 mm ,F = 158 mm , H = 200 mm
Price
Model
PHP 8SPB450TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 450 mm , OD = 457 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 100 mm ,F = 158 mm , H = 200 mm
Price
Model
PHP 8SPB500TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 500 mm , OD = 507 mm , Pulley Type = 5 , Bore min = 35 mm , Bore max = 100 mm ,F = 158 mm , H = 200 mm
Price
Model
PHP 8SPB560TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 560 mm , OD = 567 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 158 mm , H = 225 mm
Price
Model
PHP 8SPB630TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 630 mm , OD = 637 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 158 mm , H = 225 mm
Price
Model
PHP 8SPB710TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 710 mm , OD = 717 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 158 mm , H = 225 mm
Price
Model
PHP 8SPB800TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 800 mm , OD = 807 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 158 mm , H = 225 mm
Price
Model
PHP 8SPB900TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 900 mm , OD = 907 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 158 mm , H = 225 mm
Price
Model
PHP 8SPB1000TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1000 mm , OD = 1007 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 158 mm , H = 245 mm
Price
Model
PHP 8SPB1250TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1250 mm , OD = 1257 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 158 mm , H = 245 mm
Price
