ชื่อรุ่น :

10 Groove SPB

แบรนด์

SKF

รายละเอียด :

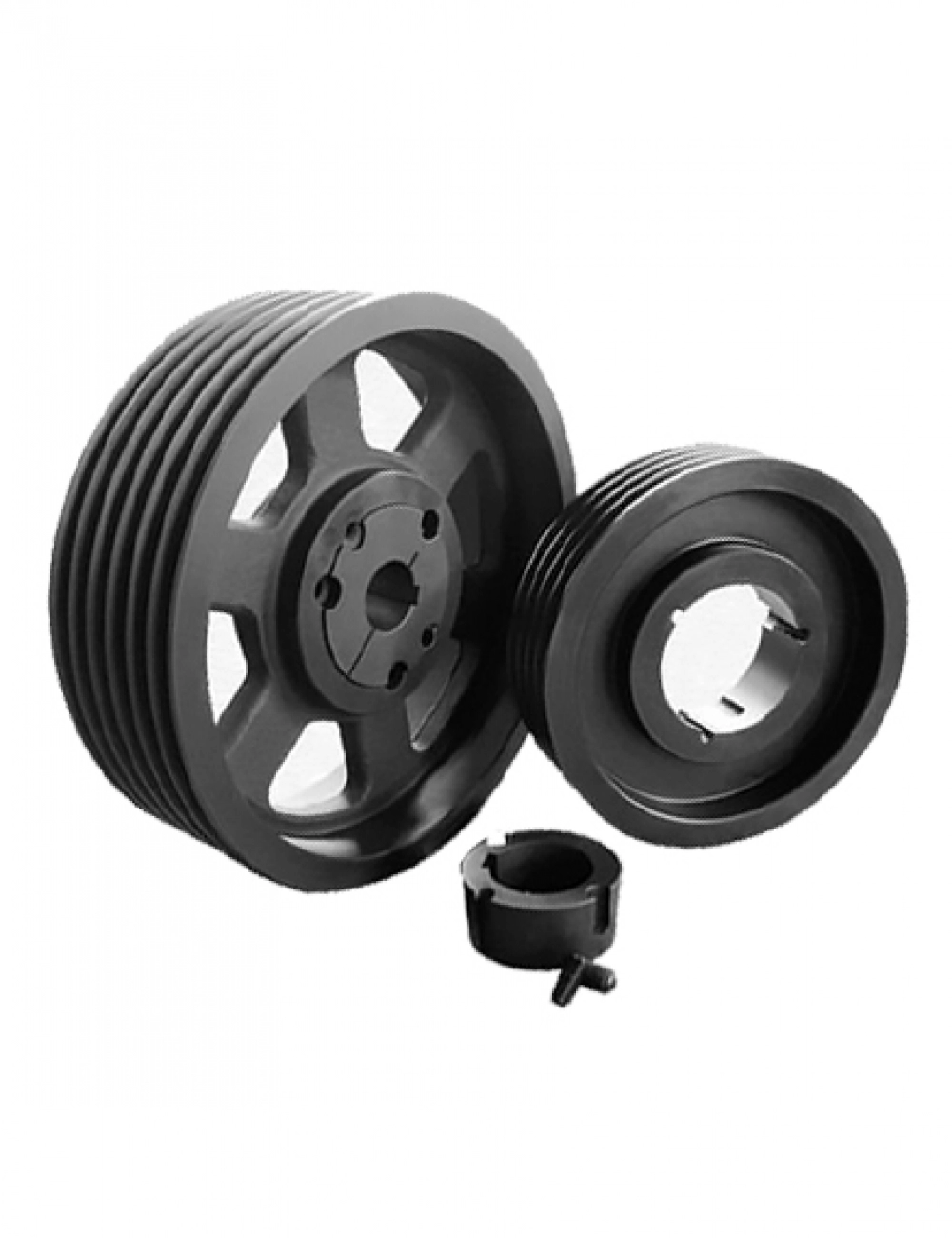

Pulleys SPB 10 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 10SPB224TB
Model description

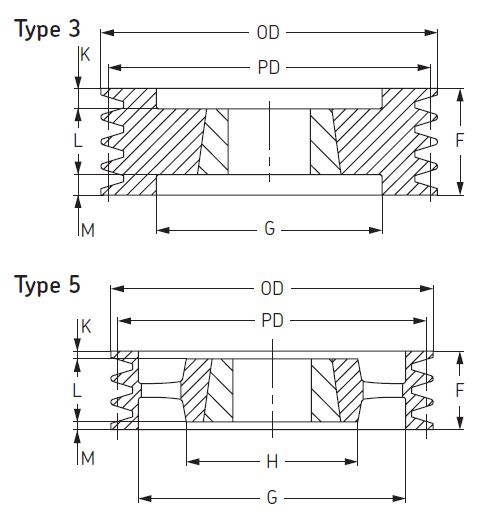

Bush no. 3535 DIMENSIONS : Pitch diameter = 224 mm , OD = 231 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 196 mm
Price
Model
PHP 10SPB236TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 236 mm , OD = 243 mm , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 196 mm
Price
Model
PHP 10SPB250TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 250 mm , OD = 257 mm , , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 196 mm
Price
Model
PHP 10SPB280TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 280 mm , OD = 287 mm , , Pulley Type = 3 , Bore min = 35 mm , Bore max = 90 mm ,F = 196 mm
Price
Model
PHP 10SPB315TB
Model description

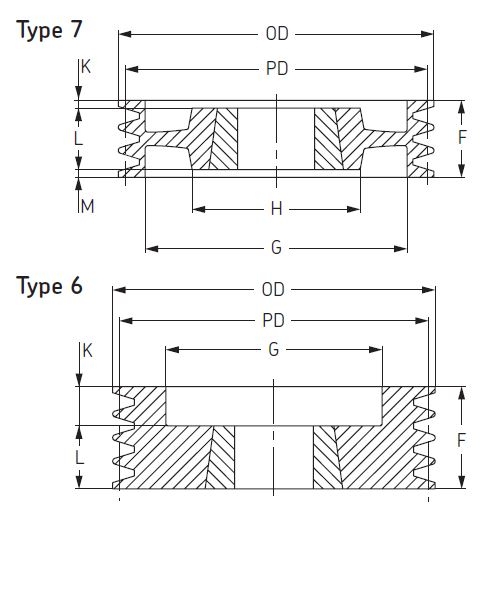

Bush no. 3535 DIMENSIONS : Pitch diameter = 315 mm , OD = 322 mm , Pulley Type = 7 , Bore min = 35 mm , Bore max = 90 mm ,F = 196 mm , H = 170 mm
Price
Model
PHP 10SPB335TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 335 mm , OD = 342 mm , Pulley Type = 7 , Bore min = 40 mm , Bore max = 100 mm ,F = 196 mm , H = 200 mm
Price
Model
PHP 10SPB355TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 355 mm , OD = 362 mm , Pulley Type = 7 , Bore min = 40 mm , Bore max = 100 mm ,F = 196 mm , H = 200 mm
Price
Model
PHP 10SPB400TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 400 mm , OD = 407 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 100 mm ,F = 196 mm , H = 200 mm
Price
Model
PHP 10SPB450TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 450 mm , OD = 457 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB500TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 500 mm , OD = 507 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB560TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 560 mm , OD = 567 mm , Pulley Type = 5 , Bore min = - mm , Bore max = 110 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB630TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 630 mm , OD = 637 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 110 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB710TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 710 mm , OD = 717 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 125 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB800TB
Model description
Bush no. 4545 DIMENSIONS : Pitch diameter = 800 mm , OD = 807 mm , Pulley Type = 5 , Bore min = 40 mm , Bore max = 125 mm ,F = 196 mm , H = 225 mm
Price
Model
PHP 10SPB900TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 900 mm , OD = 907 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 196 mm , H = 245 mm
Price
Model
PHP 10SPB1000TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1000 mm , OD = 1007 mm , Pulley Type = 5 , Bore min = 70 mm , Bore max = 125 mm ,F = 196 mm , H = 245 mm
Price
Model
PHP 10SPB1250TB
Model description
Bush no. 5050 DIMENSIONS : Pitch diameter = 1250 mm , OD = 1257 mm , Pulley Type = 5 , Bore min = 71 mm , Bore max = 125 mm ,F = 196 mm
Price
