ชื่อรุ่น :

1 Groove SPB

แบรนด์

SKF

รายละเอียด :

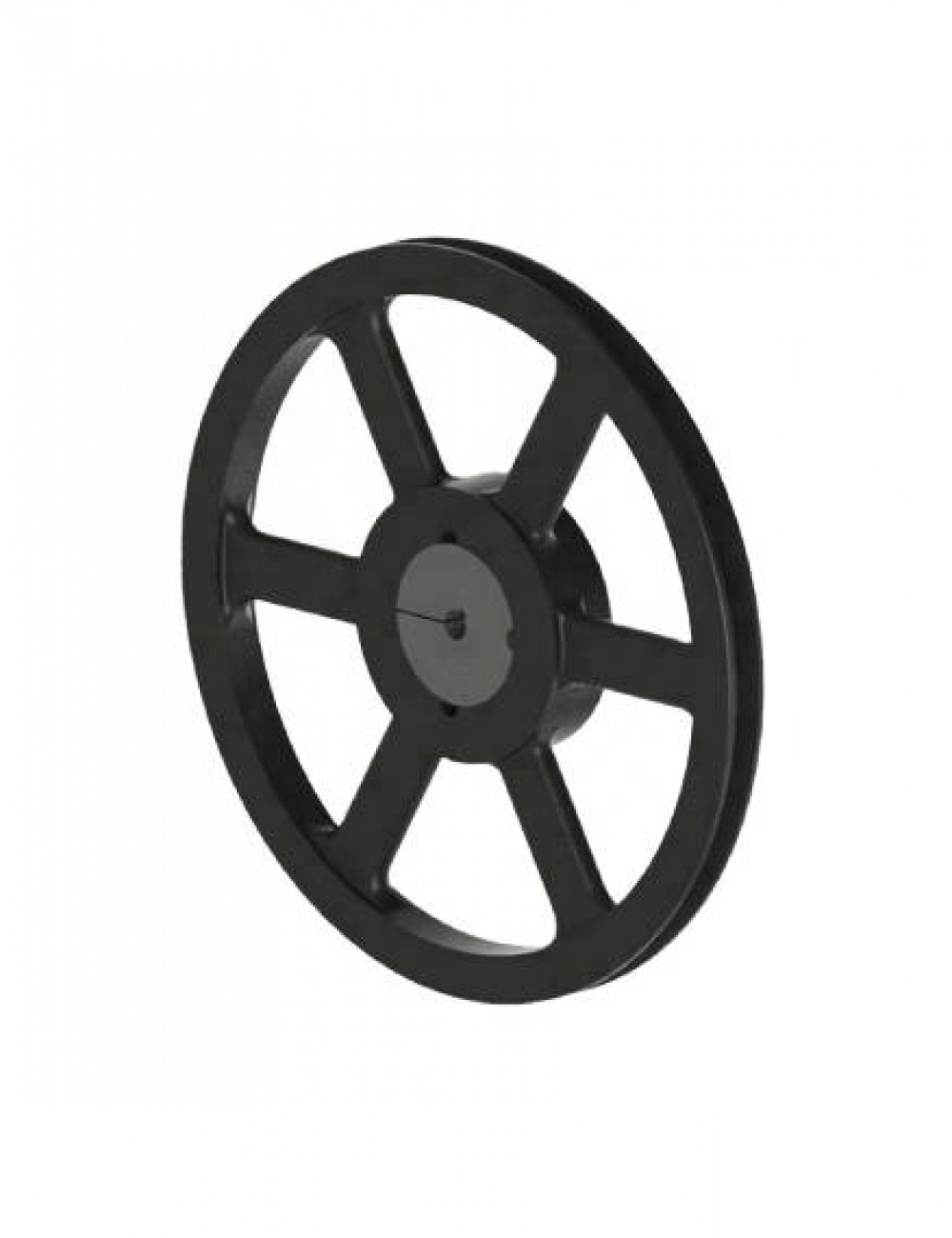

Pulleys SPB 1 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 1SPB100TB
Model description

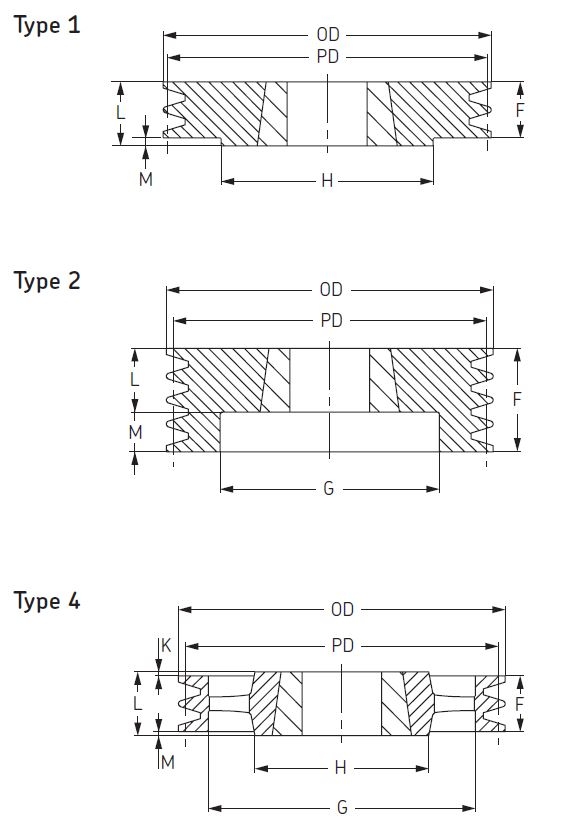

Bush no. 1610 DIMENSIONS : Pitch diameter = 100 mm , OD = 107 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB106TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 106 mm , OD = 113 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB112TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 112 mm , OD = 119 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB118TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 118 mm , OD = 125 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB125TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 125 mm , OD = 132 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB132TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 132 mm , OD = 139 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB140TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 140 mm , OD = 147 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB150TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 150 mm , OD = 157 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB160TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 160 mm , OD = 167 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB170TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 170 mm , OD = 177 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm
Price
Model
PHP 1SPB180TB
Model description

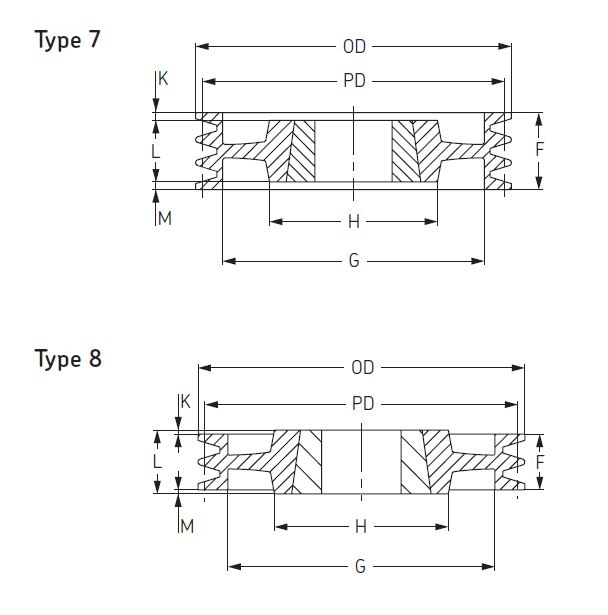

Bush no. 1610 DIMENSIONS : Pitch diameter = 180 mm , OD = 187 mm , Pulley Type = 7 , Bore min = 14 mm , Bore max = 42 mm ,F = 25 mm , H = 80 mm
Price
Model
PHP 1SPB190TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 190 mm , OD = 197 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB200TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 200 mm , OD = 207 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB212TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 212 mm , OD = 219 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB224TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 224 mm , OD = 231 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB236TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 236 mm , OD = 243 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB250TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 250 mm , OD = 257 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB280TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 280 mm , OD = 287 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB300TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 300 mm , OD = 307 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB315TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 315 mm , OD = 322 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 25 mm , H = 100 mm
Price
Model
PHP 1SPB335TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 335 mm , OD = 342 mm , Pulley Type = 8 , Bore min = 16 mm , Bore max = 60 mm ,F = 25 mm , H = 125 mm
Price
Model
PHP 1SPB355TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 355 mm , OD = 362 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
Model
PHP 1SPB400TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 400 mm , OD = 407 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
Model
PHP 1SPB450TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 450 mm , OD = 457 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
Model
PHP 1SPB500TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 500 mm , OD = 507 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
Model
PHP 1SPB560TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 560 mm , OD = 567 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
Model
PHP 1SPB630TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 630 mm , OD = 637 mm , Pulley Type = 4 , Bore min = 25 mm , Bore max = 75 mm ,F = 25 mm , H = 146 mm
Price
สอบถามเพิ่มเติม
บริษัท ทีพีเอส แบริ่ง แอนด์ โซลูชั่นส์ จำกัด tpsbearing 087-549-6591 sales@tpsbearing.com
