ชื่อรุ่น :

4 Groove SPA

แบรนด์

SKF

รายละเอียด :

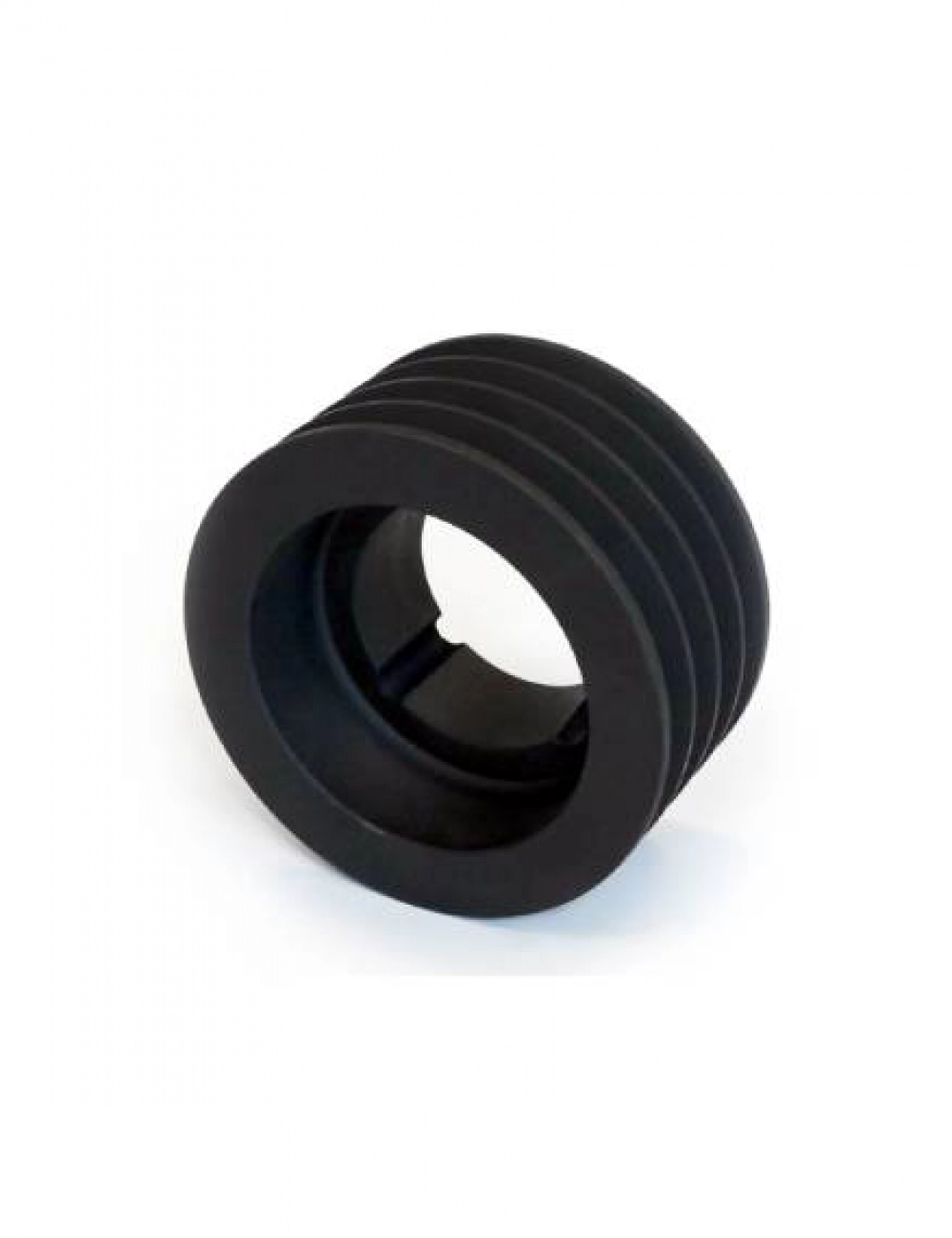

Pulleys SPA 4 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 4SPA90TB
Model description

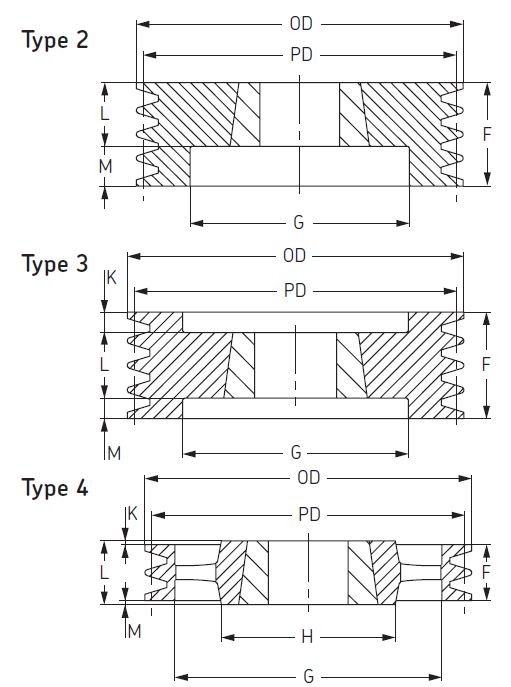

Bush no. 1615 DIMENSIONS : Pitch diameter = 90 mm , OD = 100.5 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 42 mm ,F = 65 mm
Price
Model
PHP 4SPA 95TB
Model description
Bush no. 1615 DIMENSIONS : Pitch diameter = 95 mm , OD = 100.5 mm , Pulley Type = 3 , Bore min = 14 mm , Bore max = 42 mm ,F = 65 mm
Price
Model
PHP 4SPA 100TB
Model description
Bush no. 1615 DIMENSIONS : Pitch diameter = 100 mm , OD = 105.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 42 mm ,F = 65 mm
Price
Model
PHP 4SPA 106TB
Model description

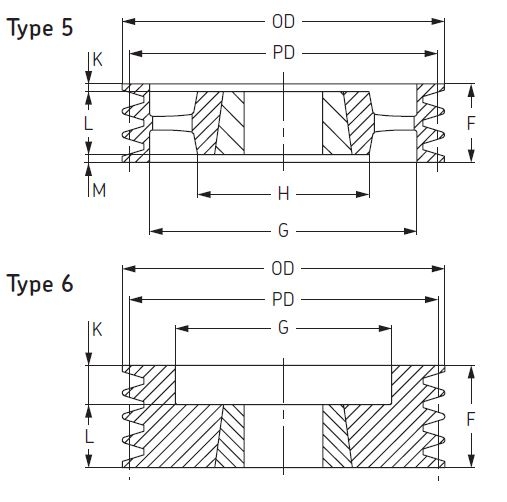

Bush no. 2012 DIMENSIONS : Pitch diameter = 106 mm , OD = 111.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 65 mm
Price
Model
PHP 4SPA 112TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 112 mm , OD = 117.5 mm , Pulley Type = 6 , Bore min = 14 mm , Bore max = 50 mm ,F = 65 mm
Price
Model
PHP 4SPA 118TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 118 mm , OD = 123.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 65 mm
Price
Model
PHP 4SPA 125TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 125 mm , OD = 130.5 mm , Pulley Type = 2 , Bore min = 14 mm , Bore max = 50 mm ,F = 65 mm
Price
Model
PHP 4SPA 132TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 132 mm , OD = 137.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 140TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 140 mm , OD = 145.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 150TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 150 mm , OD = 155.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 160TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 160 mm , OD = 165.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 170TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 170 mm , OD = 175.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 180TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 180 mm , OD = 185.5 mm , Pulley Type = 2 , Bore min = 16 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 190TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 190 mm , OD = 195.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 60 mm ,F = 65 mm
Price
Model
PHP 4SPA 200TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 200 mm , OD = 205.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm
Price
Model
PHP 4SPA 212TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 212 mm , OD = 217.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm
Price
Model
PHP 4SPA 224TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 224 mm , OD = 229.5 mm , Pulley Type = 2 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm
Price
Model
PHP 4SPA 250TB
Model description

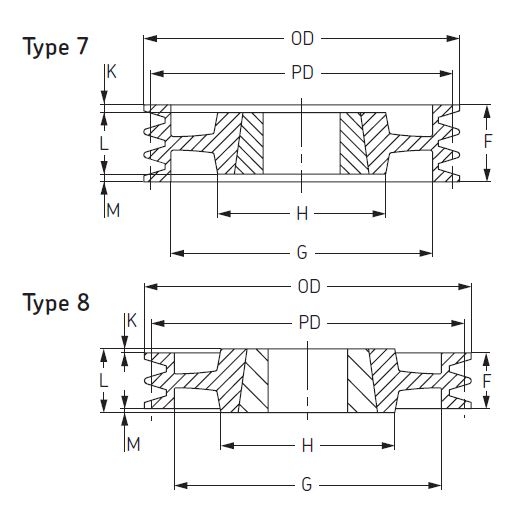

Bush no. 3020 DIMENSIONS : Pitch diameter = 250 mm , OD = 255.5 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm , H = 150 mm
Price
Model
PHP 4SPA 280TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 280 mm , OD = 285.5 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm
Price
Model
PHP 4SPA 315TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 315 mm , OD = 320.5 mm , Pulley Type = 7 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm
Price
Model
PHP 4SPA 355TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 355 mm , OD = 360.5 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm , H = 150 mm
Price
Model
PHP 4SPA 400TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 400 mm , OD = 405.5 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm , H = 150 mm
Price
Model
PHP 4SPA 450TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 450 mm , OD = 455.5 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm , H = 150 mm
Price
Model
PHP 4SPA 500TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 500 mm , OD = 505.5 mm , Pulley Type = 5 , Bore min = 25 mm , Bore max = 75 mm ,F = 65 mm , H = 150 mm
Price
Model
PHP 4SPA 560TB
Model description
Bush no. 3020 DIMENSIONS : Pitch diameter = 560 mm , OD = 565.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 90 mm , H = 170 mm
Price
Model
PHP 4SPA 630TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 630 mm , OD = 635.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 65 mm , H = 170 mm
Price
Model
PHP 4SPA 800TB
Model description
Bush no. 3535 DIMENSIONS : Pitch diameter = 800 mm , OD = 805.5 mm , Pulley Type = 4 , Bore min = 35 mm , Bore max = 90 mm ,F = 170 mm , H = mm
Price
Model
PHP 4SPA 1000TB
Model description
Bush no. 4040 DIMENSIONS : Pitch diameter = 1000 mm , OD = 1005.5 mm , Pulley Type = 4 , Bore min = 40 mm , Bore max = 90 mm ,F = 65 mm , H = 216 mm
Price
