ชื่อรุ่น :

1 Groove SPA

แบรนด์

SKF

รายละเอียด :

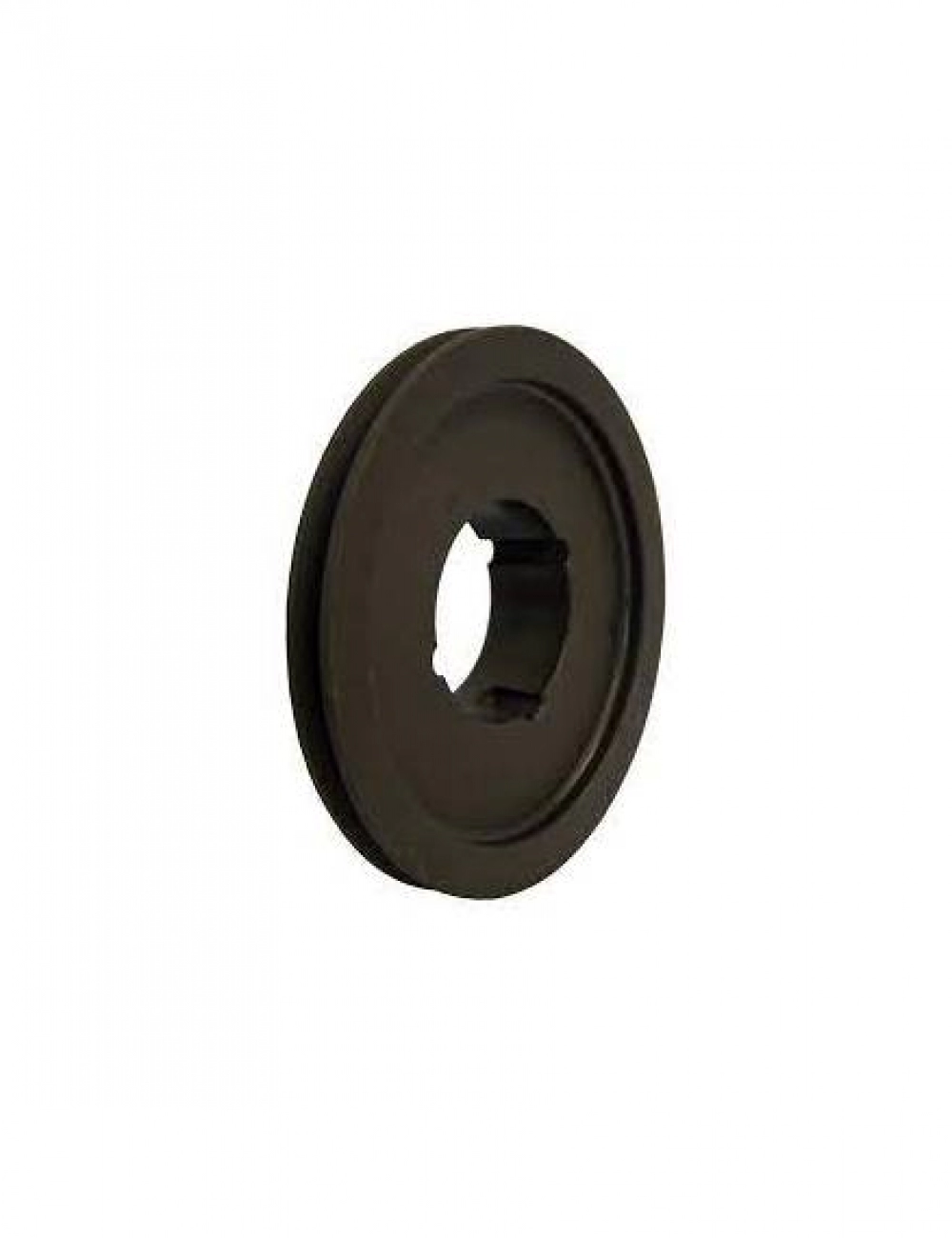

Pulleys SPA 1 ร่อง ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 1SPA63TB
Model description

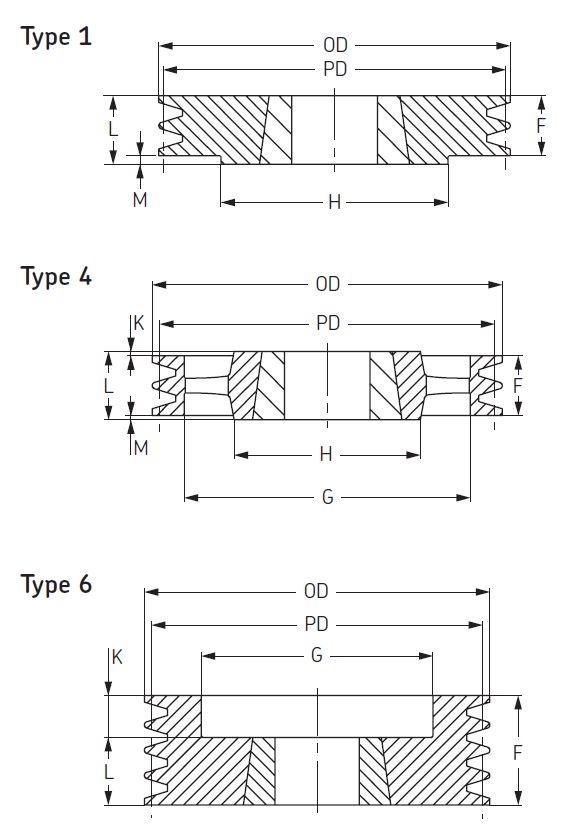

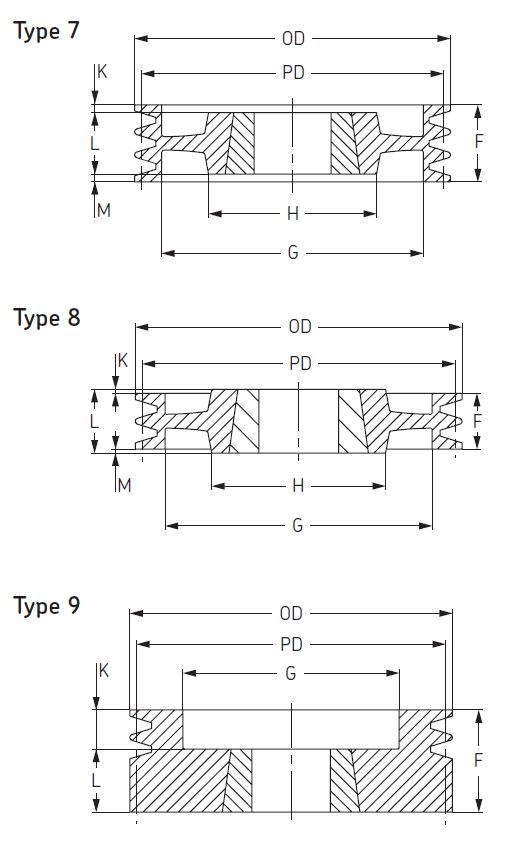

Bush no. 1008 DIMENSIONS : Pitch diameter = 63 mm , OD = 68.5 mm , Pulley Type = 9 , Bore min = 9 mm , Bore max = 25 mm ,F = 40 mm
Price
Model
PHP 1SPA67TB
Model description
Bush no. 1108 DIMENSIONS : Pitch diameter = 67 mm , OD = 72.5 mm , Pulley Type = 1 , Bore min = 9 mm , Bore max = 28 mm ,F = 20 mm , H = 62 mm
Price
Model
PHP 1SPA71TB
Model description
Bush no. 1108 DIMENSIONS : Pitch diameter = 71 mm , OD = 76.5 mm , Pulley Type = 1 , Bore min = 9 mm , Bore max = 28 mm ,F = 20 mm , H = 62 mm
Price
Model
PHP 1SPA75TB
Model description
Bush no. 1108 DIMENSIONS : Pitch diameter = 75 mm , OD = 80.5 mm , Pulley Type = 1 , Bore min = 9 mm , Bore max = 28 mm ,F = 22 mm , H = 62 mm
Price
Model
PHP 1SPA80TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 80 mm , OD = 85.5 mm , Pulley Type = 1 , Bore min = 11 mm , Bore max = 32 mm ,F = 20 mm , H = 75 mm
Price
Model
PHP 1SPA85TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 85 mm , OD = 90.5 mm , Pulley Type = 1 , Bore min = 11 mm , Bore max = 32 mm ,F = 20 mm , H = 75 mm
Price
Model
PHP 1SPA90TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 90 mm , OD = 95.5 mm , Pulley Type = 1 , Bore min = 11 mm , Bore max = 32 mm ,F = 20 mm , H = 75 mm
Price
Model
PHP 1SPA95TB
Model description
Bush no. 1210 DIMENSIONS : Pitch diameter = 95 mm , OD = 100.5 mm , Pulley Type = 1 , Bore min = 11 mm , Bore max = 32 mm ,F = 20 mm , H = 75 mm
Price
Model
PHP 1SPA100TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 100 mm , OD = 105.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA106TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 106 mm , OD = 111.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA112TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 112 mm , OD = 117.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA118TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 118 mm , OD = 123.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA125TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 125 mm , OD = 130.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA132TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 132 mm , OD = 137.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA140TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 140 mm , OD = 145.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA150TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 150 mm , OD = 155.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA160TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 160 mm , OD = 165.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA170TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 170 mm , OD = 175.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA180TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 180 mm , OD = 185.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA190TB
Model description
Bush no. 1610 DIMENSIONS : Pitch diameter = 190 mm , OD = 195.5 mm , Pulley Type = 1 , Bore min = 14 mm , Bore max = 42 mm ,F = 20 mm , H = 80 mm
Price
Model
PHP 1SPA200TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 200 mm , OD = 205.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA212TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 212 mm , OD = 217.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA224TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 224 mm , OD = 229.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA250TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 250 mm , OD = 255.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA280TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 280 mm , OD = 285.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA315TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 315 mm , OD = 320.5 mm , Pulley Type = 8 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA355TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 355 mm , OD = 360.5 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA400TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 400 mm , OD = 405.5 mm , Pulley Type = 4 , Bore min = 14 mm , Bore max = 50 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA450TB
Model description
Bush no. 2012 DIMENSIONS : Pitch diameter = 450 mm , OD = 455.5 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 20 mm , H = 100 mm
Price
Model
PHP 1SPA500TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 500 mm , OD = 505.5 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 20 mm , H = 120 mm
Price
Model
PHP 1SPA630TB
Model description
Bush no. 2517 DIMENSIONS : Pitch diameter = 630 mm , OD = 635.5 mm , Pulley Type = 4 , Bore min = 16 mm , Bore max = 60 mm ,F = 20 mm , H = 120 mm
Price
