Bush no. 4545

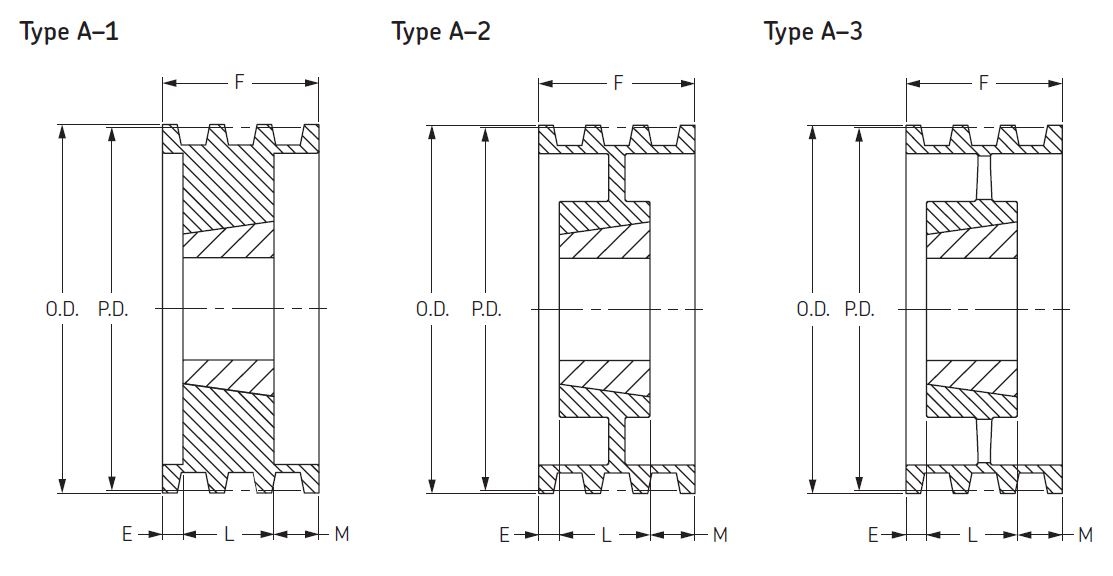

DIMENSIONS : Outside diameter = 12.50 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 13.20 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 14.00 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 15.00 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 16.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 17.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 18.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 19.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 20.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 21.20 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 22.40 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
Bush no. 4545
DIMENSIONS : Outside diameter = 24.80 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 6.1/8 in. , L = 4.1/2 in.
