ชื่อรุ่น :

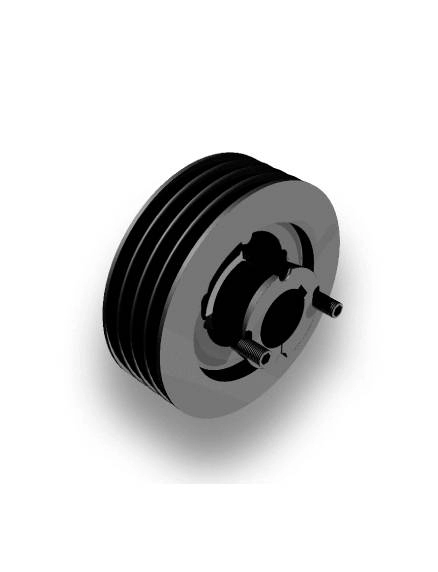

5 Groove 5V

แบรนด์

SKF

รายละเอียด :

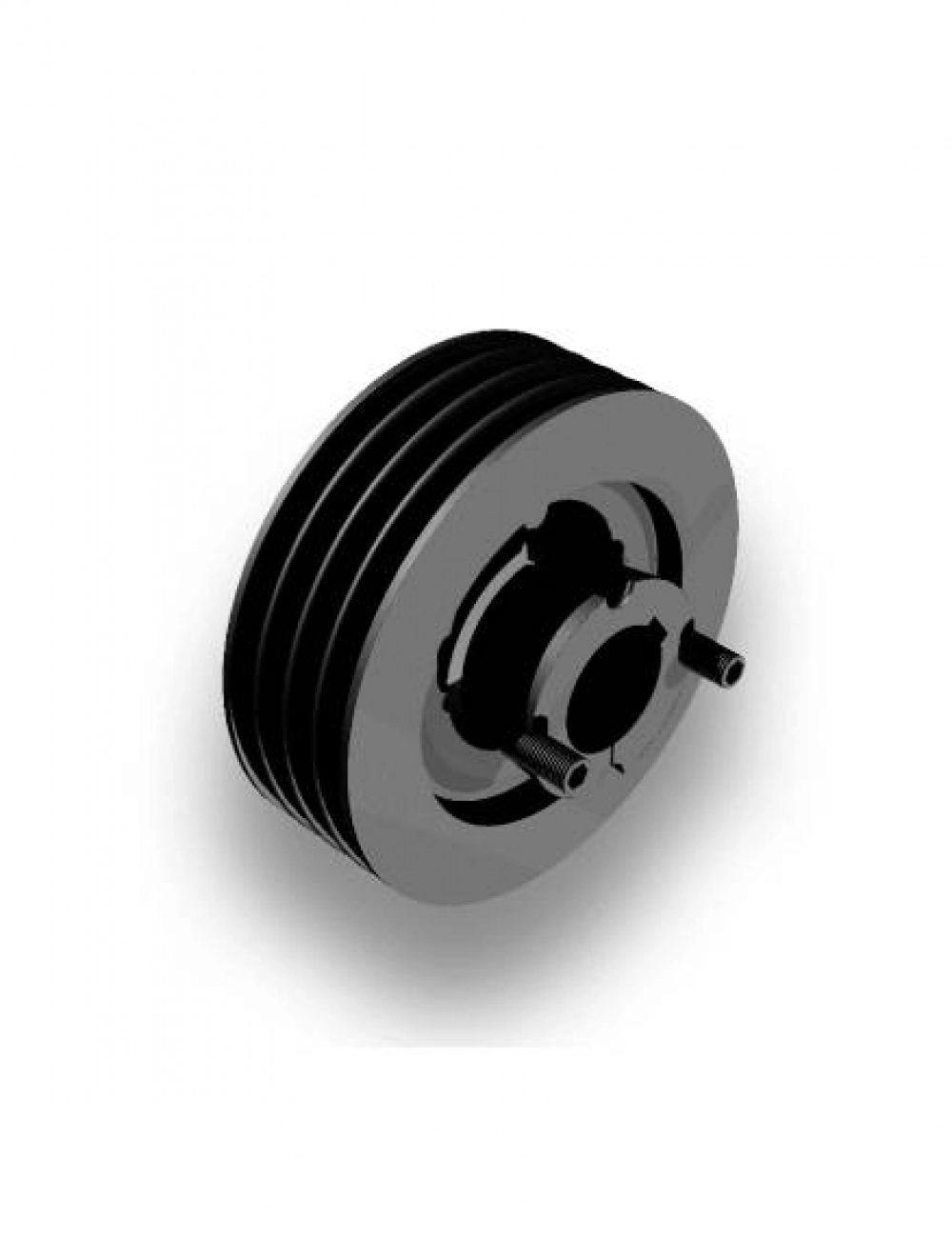

Pulleys 5V (5 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 5 - 5V710TB
Model description

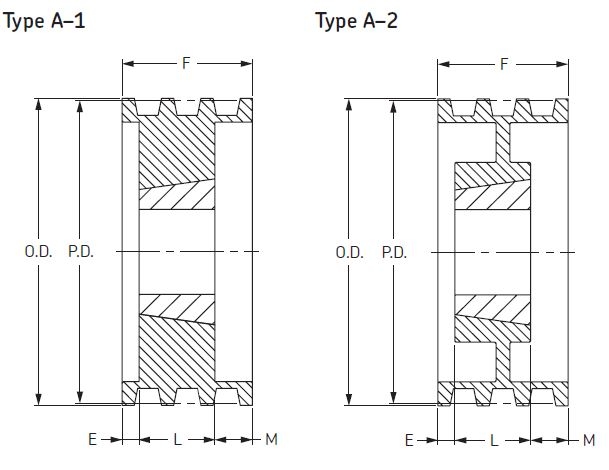

Bush no. 3030 DIMENSIONS : Outside diameter = 7.10 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V750TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 7.50 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V800TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 8.00 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V850TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 8.50 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V900TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 9.00 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V925TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 9.25 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V975TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 9.75 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V1030TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 10.30 in. , Pulley Type = A-2 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V1090TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 10.90 in. , Pulley Type = A-2 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V1180TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 11.80 in. , Pulley Type = A-2 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/4 in. , L = 2 in.
Price
Model
PHP 5 - 5V1250TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 12.50 in. , Pulley Type = A-2 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 3.3/4 in. , L = 3.1/2 in.
Price
Model
PHP 5 - 5V1320TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 13.20 in. , Pulley Type = A-2 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 3.3/4 in. , L = 3.1/2 in.
Price
Model
PHP 5 - 5V1400TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 14.00 in. , Pulley Type = A-2 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 3.3/4 in. , L = 3.1/2 in.
Price
Model
PHP 5 - 5V1500TB
Model description

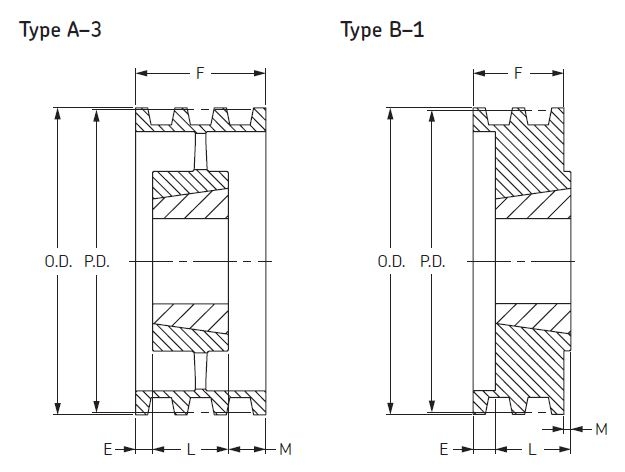

Bush no. 3535 DIMENSIONS : Outside diameter = 15.00 in. , Pulley Type = A-3 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 3.3/4 in. , L = 3.1/2 in.
Price
Model
PHP 5 - 5V1600TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 16.00 in. , Pulley Type = A-3 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 3.3/4 in. , L = 3.1/2 in.
Price
Model
PHP 5 - 5V2120TB
Model description
Bush no. 4040 DIMENSIONS : Outside diameter = 21.20 in. , Pulley Type = C-3 , Bore min =1.3/4 in , Bore max = 4.7/16 in. ,F = 3.3/4 in. , L = 4 in.
Price
Model
PHP 5 - 5V2800TB
Model description
Bush no. 4040 DIMENSIONS : Outside diameter = 28.00 in. , Pulley Type = C-3 , Bore min =1.3/4 in , Bore max = 4.7/16 in. ,F = 3.3/4 in. , L = 4 in.
Price
Model
PHP 5 - 5V3750TB
Model description
Bush no. 4040 DIMENSIONS : Outside diameter = 37.50 in. , Pulley Type = C-3 , Bore min =1.3/4 in , Bore max = 4.7/16 in. ,F = 3.3/4 in. , L = 4 in.
Price
Model
PHP 5 - 5V5000TB
Model description
Bush no. 4545 DIMENSIONS : Outside diameter = 50.00 in. , Pulley Type = C-3 , Bore min = 2.1/4 in , Bore max = 4.15/16 in. ,F = 3.3/4 in. , L = 4.1/2 in.
Price
