PRODUCT
![]()
ชื่อรุ่น :
10 Groove 5V
แบรนด์
SKF
รายละเอียด :

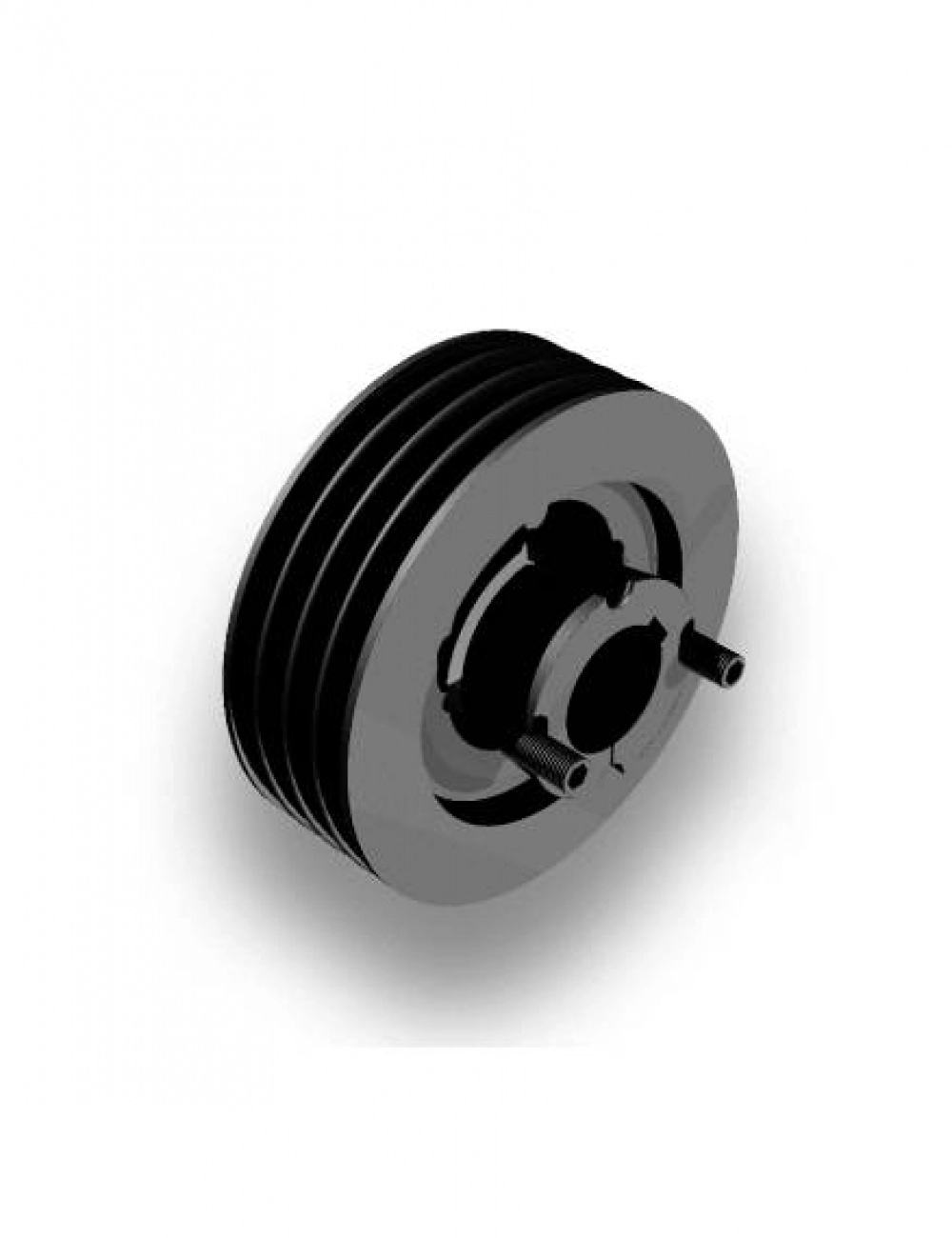

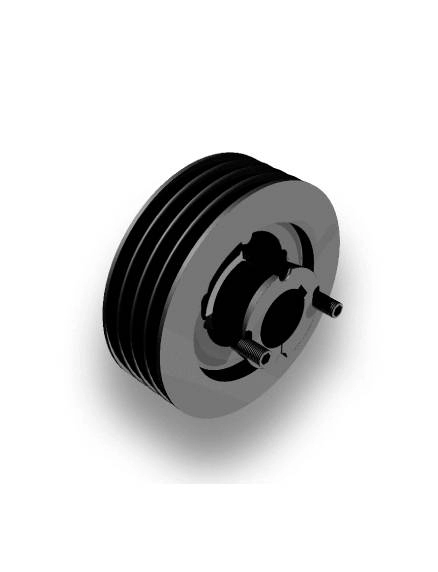

Pulleys 5V (10 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 10 - 5V800TB
Model description
Bush no. 3030
DIMENSIONS : Outside diameter = 8.00 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3.15/16 in. ,F = 7.3/16 in. , L = 3 in.
Price
Model
PHP 10 - 5V850TB
Model description
Bush no. 3030
DIMENSIONS : Outside diameter = 8.50 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3.15/16 in. ,F = 7.3/16 in. , L = 3 in.
Price
Model
PHP 10 - 5V900TB
Model description
Bush no. 3535
DIMENSIONS : Outside diameter = 9.00 in. , Pulley Type = A-1 , Bore min = 2 in , Bore max = 3.15/16 in. ,F = 7.3/16 in. , L = 3.1/2 in.
Price
Model
PHP 10 - 5V925TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 9.25 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V975TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 9.75 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1030TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 10.30 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1090TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 10.90 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1130TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 11.30 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1180TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 11.80 in. , Pulley Type = A-1 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1250TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 12.50 in. , Pulley Type = A-2 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1320TB
Model description
Bush no. 4040
DIMENSIONS : Outside diameter = 13.20 in. , Pulley Type = A-2 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4 in.
Price
Model
PHP 10 - 5V1400TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 14.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V1500TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 15.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V1600TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 16.00 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V1870TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 18.70 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V2120TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 21.20 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V2800TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 28.00 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V3750TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 37.50 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.7/16 in. ,F = 7.3/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - 5V5000TB
Model description
Bush no. 5050
DIMENSIONS : Outside diameter = 50.00 in. , Pulley Type = A-3 , Bore min = 2.3/4 in , Bore max = 5 in. ,F = 7.3/16 in. , L = 5 in.
Price
