ชื่อรุ่น :

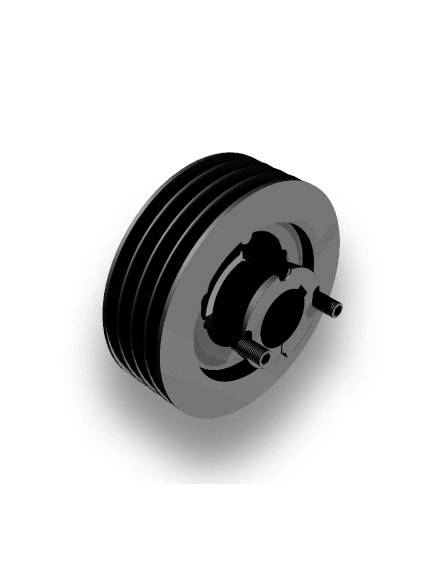

10 Groove 3V

แบรนด์

SKF

รายละเอียด :

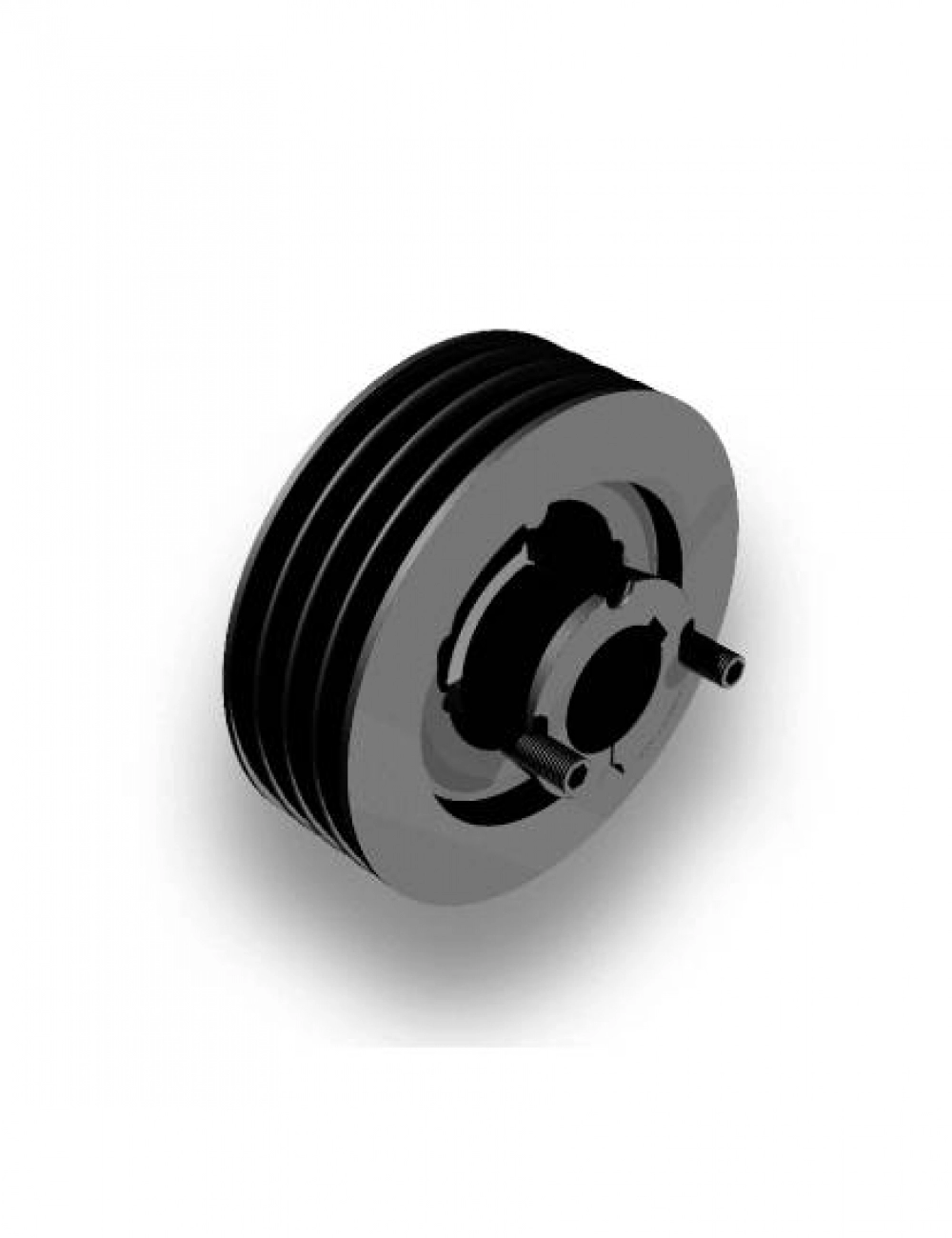

Pulleys 3V (10 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 10 - 3V475TB
Model description

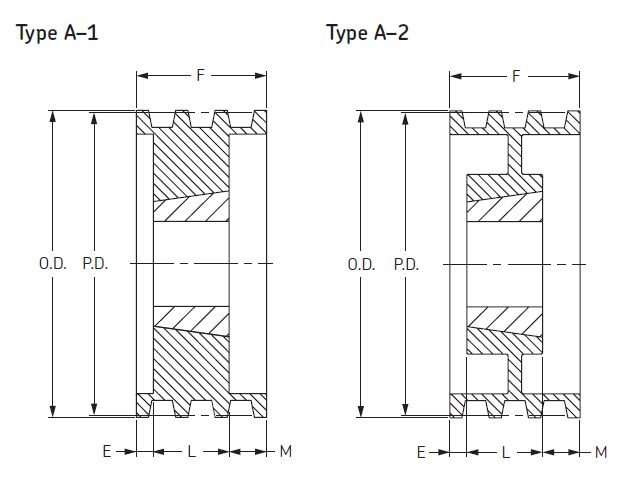

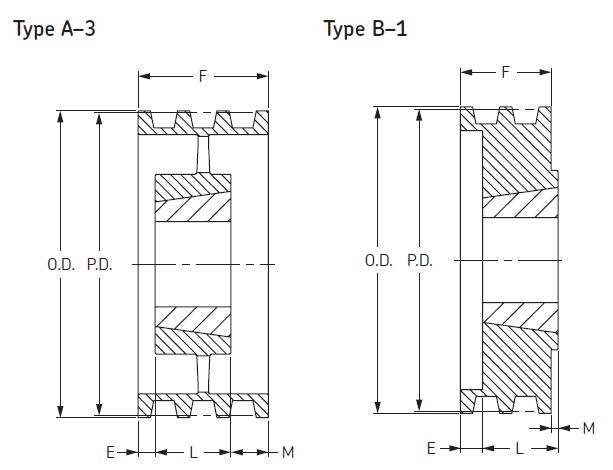

Bush no. 2517 DIMENSIONS : Outside diameter = 4.75 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V500TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.00 in. , Pulley Type = B-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V530TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.30 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V560TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.60 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V600TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.00 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V650TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter =6.50 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V690TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.90 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 4.11/32 in. , L = 1.3/4 in.
Price
Model
PHP 10 - 3V800TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 8.00 in. , Pulley Type = A-1 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 4.11/32 in. , L = 2 in.
Price
Model
PHP 10 - 3V1060TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 10.60 in. , Pulley Type = A-2 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 4.11/32 in. , L = 2 in.
Price
Model
PHP 10 - 3V1400TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 14.00 in. , Pulley Type = A-2 , Bore min = 2 in , Bore max = 3.1/2 in. ,F = 4.11/32 in. , L = 3.1/2 in.
Price
Model
PHP 10 - 3V1900TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 19.00 in. , Pulley Type = A-3 , Bore min = 2 in , Bore max = 3.1/2 in. ,F = 4.11/32 in. , L = 3.1/2 in.
Price
Model
PHP 10 - 3V2500TB
Model description
Bush no. 4040 DIMENSIONS : Outside diameter = 25.00 in. , Pulley Type = A-3 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 4.11/32 in. , L = 4 in.
Price
Model
PHP 10 - 3V3350TB
Model description
Bush no. 4040 DIMENSIONS : Outside diameter = 33.50 in. , Pulley Type = A-3 , Bore min = 1.3/4 in , Bore max = 4.7/16 in. ,F = 4.11/32 in. , L = 4 in.
Price
