PRODUCT
![]()
ชื่อรุ่น :
PHP 16 - T2.5 - XXRSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 2.5 mm
- สายพานหน้ากว้าง 4 mm และ 6 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 16 - T2.5 - 10RSB
Model description
No. Teeth = 10

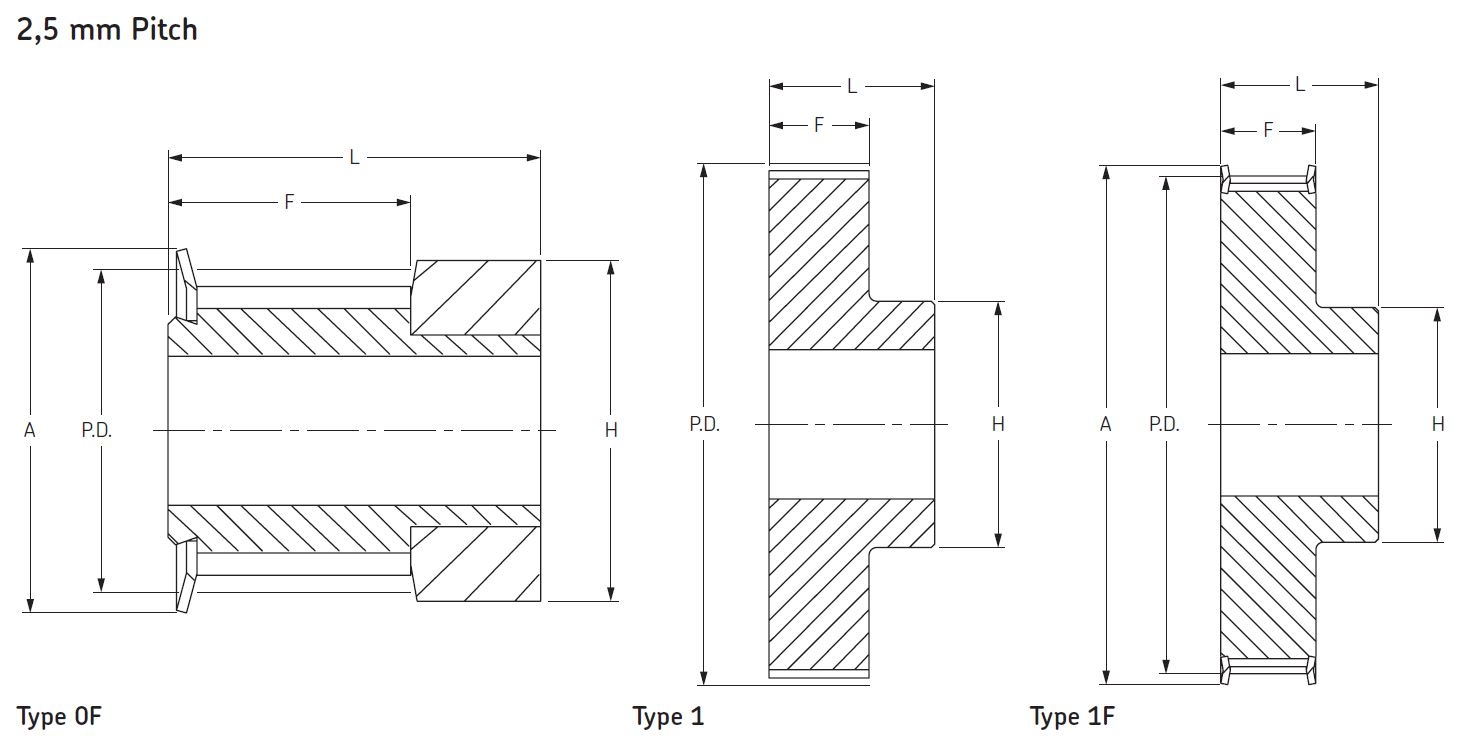

DIMENSIONS : Diameter (P.D.) = 7.96 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 3 mm ,F = 10 mm , H = 10 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 11RSB
Model description
No. Teeth = 11
DIMENSIONS : Diameter (P.D.) = 8.75 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 3 mm ,F = 10 mm , H = 11 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 12RSB
Model description
No. Teeth = 12
DIMENSIONS : Diameter (P.D.) = 9.54 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 4 mm ,F = 10 mm , H = 13 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 13RSB
Model description
No. Teeth = 13
DIMENSIONS : Diameter (P.D.) = 10.35 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 4 mm ,F = 10 mm , H = 14 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 14RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 11.14 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 5 mm ,F = 10 mm , H = 15 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 15RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 11.94 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 6 mm ,F = 10 mm , H = 15 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 16RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 12.73 mm , Pulley Type = 0F , Bore min = - mm , Bore max = 7 mm ,F = 10 mm , H = 16 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 17RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 13.53 mm , Pulley Type = 0F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 16 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 18RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 14.32 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 10 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 19RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 15.12 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 10 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 20RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 15.92 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 11 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 21RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 16.71 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 11 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 22RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 17.51 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 10 mm , H = 10 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 23RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 18.30 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 8 mm ,F = 10 mm , H = 12 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 24RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 19.10 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 8 mm ,F = 10 mm , H = 12 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 25RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 19.89 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 9 mm ,F = 10 mm , H = 13 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 26RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 20.69 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 9 mm ,F = 10 mm , H = 14 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 27RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 21.49 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 9 mm ,F = 10 mm , H = 14 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 28RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 22.28 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 9 mm ,F = 10 mm , H = 14 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 30RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 23.87 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 10 mm ,F = 10 mm , H = 16 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 32RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 25.46 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 10 mm ,F = 10 mm , H = 16 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 35RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 27.85 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 10 mm ,F = 10 mm , H = 18 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 36RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 28.65 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 10 mm , H = 20 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 38RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 30.24 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 10 mm , H = 22 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 40RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 31.83 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 10 mm , H = 22 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 42RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 33.42 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 10 mm , H = 24 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 44RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 35.01 mm , Pulley Type = 1 , Bore min = 6 mm , Bore max = 15 mm ,F = 10 mm , H = 24 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 45RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 35.81 mm , Pulley Type = 1 , Bore min = 6 mm , Bore max = 17 mm ,F = 10 mm , H = 26 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 48RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 38.20 mm , Pulley Type = 1 , Bore min = 6 mm , Bore max = 17 mm ,F = 10 mm , H = 26 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 54RSB
Model description
No. Teeth = 54
DIMENSIONS : Diameter (P.D.) = 42.97 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 19 mm ,F = 10 mm , H = 30 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 57RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 45.36 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 19 mm ,F = 10 mm , H = 32 mm , L = 16 mm
Price
Model
PHP 16 - T2.5 - 60RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 47.75 mm , Pulley Type = 1 , Bore min = 8 mm , Bore max = 22 mm ,F = 10 mm , H = 34 mm , L = 16 mm
Price
