ชื่อรุ่น :

PHP 27 - AT5 - XXRSB

แบรนด์

SKF

รายละเอียด :

  • ระยะห่างระหว่างฟัน ( Pitch ) = 5 mm
  • สายพานหน้ากว้าง 16 mm
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 27 - AT5 - 10RSB
Model description

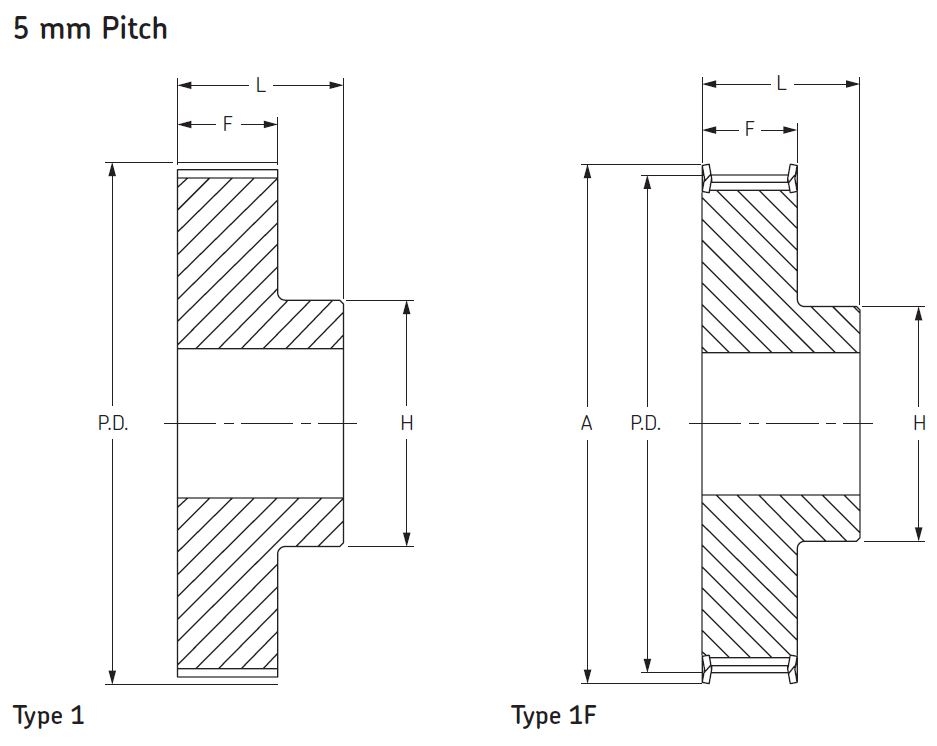

No. Teeth = 10 DIMENSIONS : Diameter (P.D.) = 15.92 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 5 mm ,F = 21 mm , H = 8 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 12RSB
Model description
No. Teeth = 12 DIMENSIONS : Diameter (P.D.) = 19.1 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7 mm ,F = 21 mm , H = 12 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 13RSB
Model description
No. Teeth = 13 DIMENSIONS : Diameter (P.D.) = 20.69 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 8 mm ,F = 21 mm , H = 13 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 14RSB
Model description
No. Teeth = 14 DIMENSIONS : Diameter (P.D.) = 22.29 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9 mm ,F = 21 mm , H = 14 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 15RSB
Model description
No. Teeth = 15 DIMENSIONS : Diameter (P.D.) = 23.88 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 10 mm ,F = 21 mm , H = 16 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 16RSB
Model description
No. Teeth = 16 DIMENSIONS : Diameter (P.D.) = 25.47 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 11 mm ,F = 21 mm , H = 18 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 17RSB
Model description
No. Teeth = 17 DIMENSIONS : Diameter (P.D.) = 27.06 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 12 mm ,F = 21 mm , H = 19 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 18RSB
Model description
No. Teeth = 18 DIMENSIONS : Diameter (P.D.) = 28.65 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 13 mm ,F = 21 mm , H = 20 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 19RSB
Model description
No. Teeth = 19 DIMENSIONS : Diameter (P.D.) = 30.25 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 14 mm ,F = 21 mm , H = 22 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 20RSB
Model description
No. Teeth = 20 DIMENSIONS : Diameter (P.D.) = 31.83 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 21 mm , H = 23 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 21RSB
Model description
No. Teeth = 21 DIMENSIONS : Diameter (P.D.) = 33.42 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 21 mm , H = 24 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 22RSB
Model description
No. Teeth = 22 DIMENSIONS : Diameter (P.D.) = 35.02 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 21 mm , H = 24 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 23RSB
Model description
No. Teeth = 23 DIMENSIONS : Diameter (P.D.) = 36.61 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 21 mm , H = 25 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 24RSB
Model description
No. Teeth = 24 DIMENSIONS : Diameter (P.D.) = 38.21 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 21 mm , H = 26 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 25RSB
Model description
No. Teeth = 25 DIMENSIONS : Diameter (P.D.) = 39.8 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 21 mm , H = 26 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 26RSB
Model description
No. Teeth = 26 DIMENSIONS : Diameter (P.D.) = 41.38 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 17 mm ,F = 21 mm , H = 26 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 27RSB
Model description
No. Teeth = 27 DIMENSIONS : Diameter (P.D.) = 42.98 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 19 mm ,F = 21 mm , H = 30 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 28RSB
Model description
No. Teeth = 28 DIMENSIONS : Diameter (P.D.) = 44.56 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 20 mm ,F = 21 mm , H = 32 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 30RSB
Model description
No. Teeth = 30 DIMENSIONS : Diameter (P.D.) = 47.76 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 22 mm ,F = 21 mm , H = 34 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 32RSB
Model description
No. Teeth = 32 DIMENSIONS : Diameter (P.D.) = 50.94 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 21 mm , H = 38 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 36RSB
Model description
No. Teeth = 36 DIMENSIONS : Diameter (P.D.) = 57.31 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 21 mm , H = 38 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 38RSB
Model description
No. Teeth = 38 DIMENSIONS : Diameter (P.D.) = 60.48 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 21 mm , H = 40 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 40RSB
Model description
No. Teeth = 40 DIMENSIONS : Diameter (P.D.) = 63.48 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 21 mm , H = 40 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 42RSB
Model description
No. Teeth = 42 DIMENSIONS : Diameter (P.D.) = 66.74 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 26 mm ,F = 21 mm , H = 40 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 44RSB
Model description
No. Teeth = 44 DIMENSIONS : Diameter (P.D.) = 70.05 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 29 mm ,F = 21 mm , H = 45 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 45RSB
Model description
No. Teeth = 45 DIMENSIONS : Diameter (P.D.) = 71.62 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 29 mm ,F = 21 mm , H = 45 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 48RSB
Model description
No. Teeth = 48 DIMENSIONS : Diameter (P.D.) = 76.42 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 32 mm ,F = 21 mm , H = 50 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 60RSB
Model description
No. Teeth = 60 DIMENSIONS : Diameter (P.D.) = 95.52 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 37 mm ,F = 21 mm , H = 65 mm , L = 27 mm
Price
Model
PHP 27 - AT5 - 72RSB
Model description
No. Teeth = 72 DIMENSIONS : Diameter (P.D.) = 114.62 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 42 mm ,F = 21 mm , H = 80 mm , L = 27 mm
Price
