PRODUCT
![]()
ชื่อรุ่น :

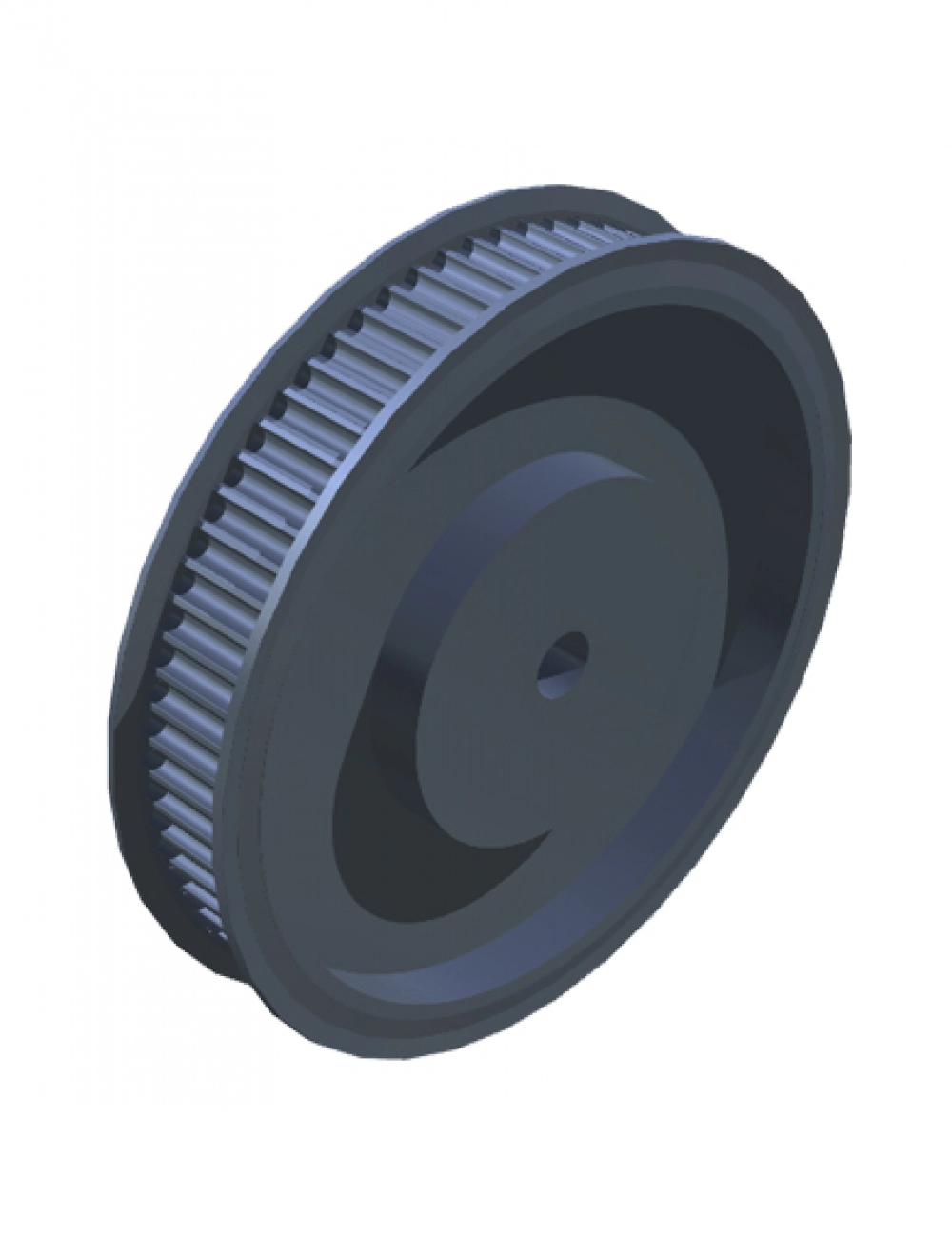

PHP XX - 3M - 15RSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 3 mm
- สายพานหน้ากว้าง 15 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 10 - 3M - 15RSB
Model description
No. Teeth = 10

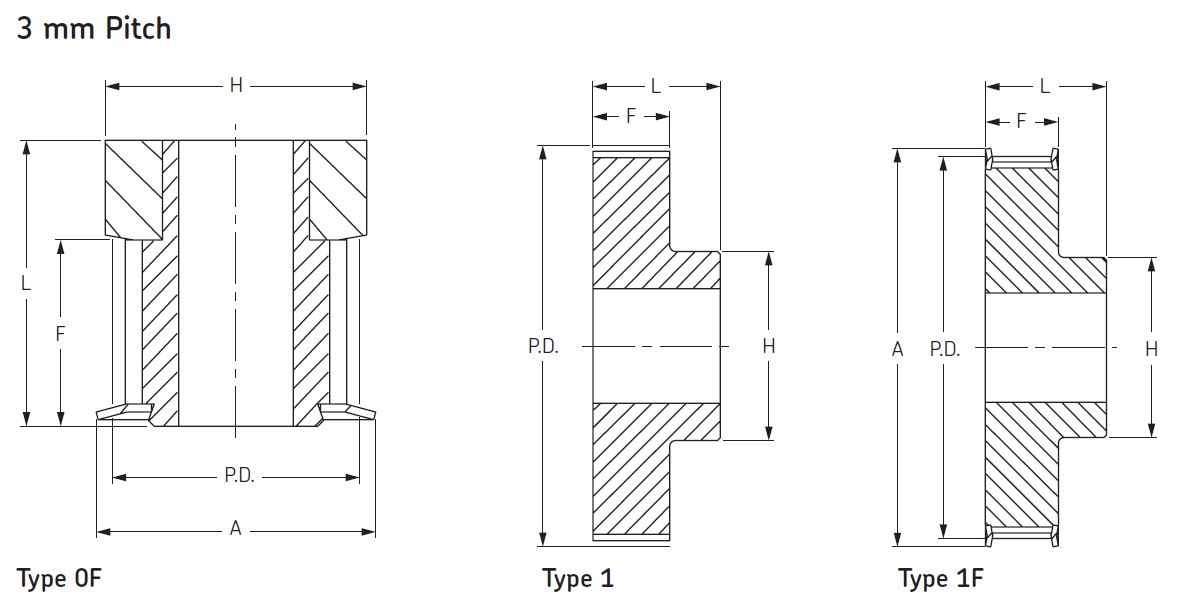

DIMENSIONS : Diameter (P.D.) = 9.55 mm , Pulley Type = OF , Bore min = - mm , Bore max = 3.0 mm ,F = 17.0 mm , L = 26.0 mm , H = 13.0 mm
Price
Model
PHP 12 - 3M - 15RSB
Model description
No. Teeth = 12
DIMENSIONS : Diameter (P.D.) = 11.46 mm , Pulley Type = OF , Bore min = - mm , Bore max = 5.0 mm ,F = 17.0 mm , L = 26.0 mm , H = 15.0 mm
Price
Model
PHP 14 - 3M - 15RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 13.37 mm , Pulley Type = OF , Bore min = - mm , Bore max = 6.0 mm ,F = 17.0 mm , L = 26.0 mm , H = 16.0 mm
Price
Model
PHP 15 - 3M - 15RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 14.32 mm , Pulley Type = OF , Bore min = - mm , Bore max = 6.0 mm ,F = 17.0 mm , L = 26.0 mm , H = 17.5 mm
Price
Model
PHP 16 - 3M - 15RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 15.28 mm , Pulley Type = 1F , Bore min = 4 mm , Bore max = 7.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 10.0 mm
Price
Model
PHP 18 - 3M - 15RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 17.19 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 8.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 11.0 mm
Price
Model
PHP 20 - 3M - 15RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 19.10 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 13.0 mm
Price
Model
PHP 21 - 3M - 15RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 20.05 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 14.0 mm
Price
Model
PHP 22 - 3M - 15RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 21.01 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 14.0 mm
Price
Model
PHP 24 - 3M - 15RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 22.92 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 9.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 14.0 mm
Price
Model
PHP 26 - 3M - 15RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 24.83 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 11.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 16.0 mm
Price
Model
PHP 28 - 3M - 15RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 26.74 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 12.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 18.0 mm
Price
Model
PHP 30 - 3M - 15RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 28.65 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 14.0 mm ,F = 19.5 mm , L = 26.0 mm , H = 20.0 mm
Price
Model
PHP 32 - 3M - 15RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 30.56 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 15 mm ,F = 19.5 mm , L = 26.0 mm , H = 22.0 mm
Price
Model
PHP 36 - 3M - 15RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 34.38 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 16.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 26.0 mm
Price
Model
PHP 40 - 3M - 15RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 38.20 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 18.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 28.0 mm
Price
Model
PHP 44 - 3M - 15RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 42.02 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 33.0 mm
Price
Model
PHP 48 - 3M - 15RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 45.84 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 33.0 mm
Price
Model
PHP 60 - 3M - 15RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 57.30 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 33.0 mm
Price
Model
PHP 72 - 3M - 15RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 68.75 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 20.0 mm ,F = 20.0 mm , L = 30.0 mm , H = 33.0 mm
