ชื่อรุ่น :
PHP XX - 14M - 170RSB
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 14 mm
- สายพานหน้ากว้าง 170 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 28 - 14M - 170RSB
Model description
No. Teeth = 28

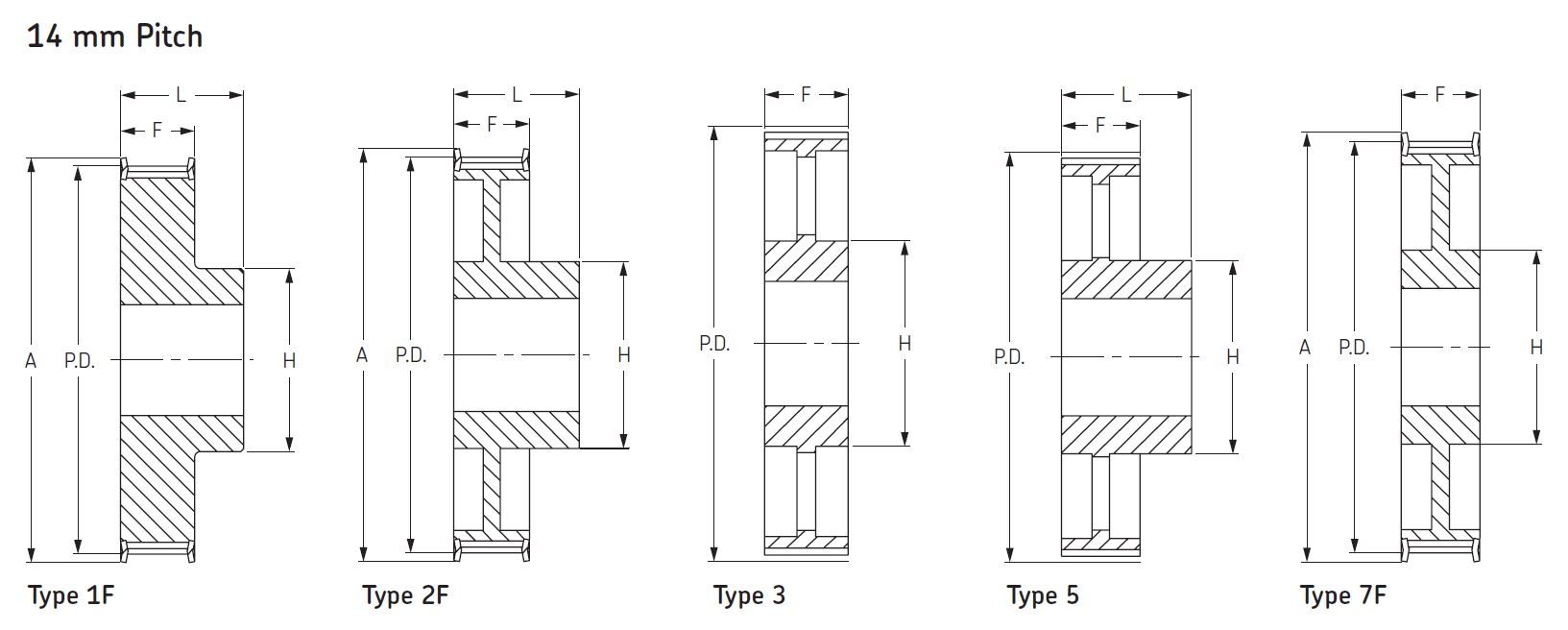

DIMENSIONS : Diameter (P.D.) = 124.78 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 187 mm , L =202 mm , H = 100 mm
Price
Model
PHP 29 - 14M - 170RSB
Model description
No. Teeth = 29
DIMENSIONS : Diameter (P.D.) = 129.23 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 187 mm , L =202 mm , H = 100 mm
Price
Model
PHP 30 - 14M - 170RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 133.69 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 187 mm , L =202 mm , H = 100 mm
Price
Model
PHP 32 - 14M - 170RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 142.60 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 187 mm , L =202 mm , H = 100 mm
Price
Model
PHP 34 - 14M - 170RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 151.52 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 67 mm ,F = 187 mm , L =202 mm , H = 100 mm
Price
Model
PHP 36 - 14M - 170RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 160.43 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 80 mm ,F = 187 mm , L =202 mm , H = 120 mm
Price
Model
PHP 38 - 14M - 170RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 169.34 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 90 mm ,F = 187 mm , L =202 mm , H = 135 mm
Price
Model
PHP 40 - 14M - 170RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 178.25 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 94 mm ,F = 187 mm , L =202 mm , H = 140 mm
Price
Model
PHP 44 - 14M - 170RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 196.08 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 187 mm , L =202 mm , H = 160 mm
Price
Model
PHP 48 - 14M - 170RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 213.90 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 107 mm ,F = 187 mm , L =202 mm , H = 160 mm
Price
Model
PHP 56 - 14M - 170RSB
Model description
No. Teeth = 56
DIMENSIONS : Diameter (P.D.) = 249.55 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 110 mm ,F = 187 mm , L =202 mm , H = 160 mm
Price
Model
PHP 64 - 14M - 170RSB
Model description
No. Teeth = 64
DIMENSIONS : Diameter (P.D.) = 285.21 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 120 mm ,F = 187 mm , L = 202 mm , H = 180 mm
Price
Model
PHP 72 - 14M - 170RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 320.86 mm , Pulley Type = 7 , Bore min = 32 mm , Bore max = 120 mm ,F = 187 mm , L = 187 mm , H = 180 mm
Price
Model
PHP 80 - 14M - 170RSB
Model description
No. Teeth = 80
DIMENSIONS : Diameter (P.D.) = 356.51 mm , Pulley Type = 7 , Bore min = 32 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 180 mm
Price
Model
PHP 90 - 14M - 170RSB
Model description
No. Teeth = 90
DIMENSIONS : Diameter (P.D.) = 401.07 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 180 mm
Price
Model
PHP 112 - 14M - 170RSB
Model description
No. Teeth = 112
DIMENSIONS : Diameter (P.D.) = 499.11 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 200 mm
Price
Model
PHP 144 - 14M - 170RSB
Model description
No. Teeth = 144
DIMENSIONS : Diameter (P.D.) = 641.71 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 220 mm
Price
Model
PHP 168 - 14M - 170RSB
Model description
No. Teeth = 168
DIMENSIONS : Diameter (P.D.) = 748.66 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 220 mm
Price
Model
PHP 192 - 14M - 170RSB
Model description
No. Teeth = 192
DIMENSIONS : Diameter (P.D.) = 855.62 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 220 mm
Price
Model
PHP 216 - 14M - 170RSB
Model description
No. Teeth = 216
DIMENSIONS : Diameter (P.D.) = 962.57 mm , Pulley Type = 3 , Bore min = 38 mm , Bore max = 108 mm ,F = 187 mm , L = 187 mm , H = 220 mm
Price
