No. Teeth = 48

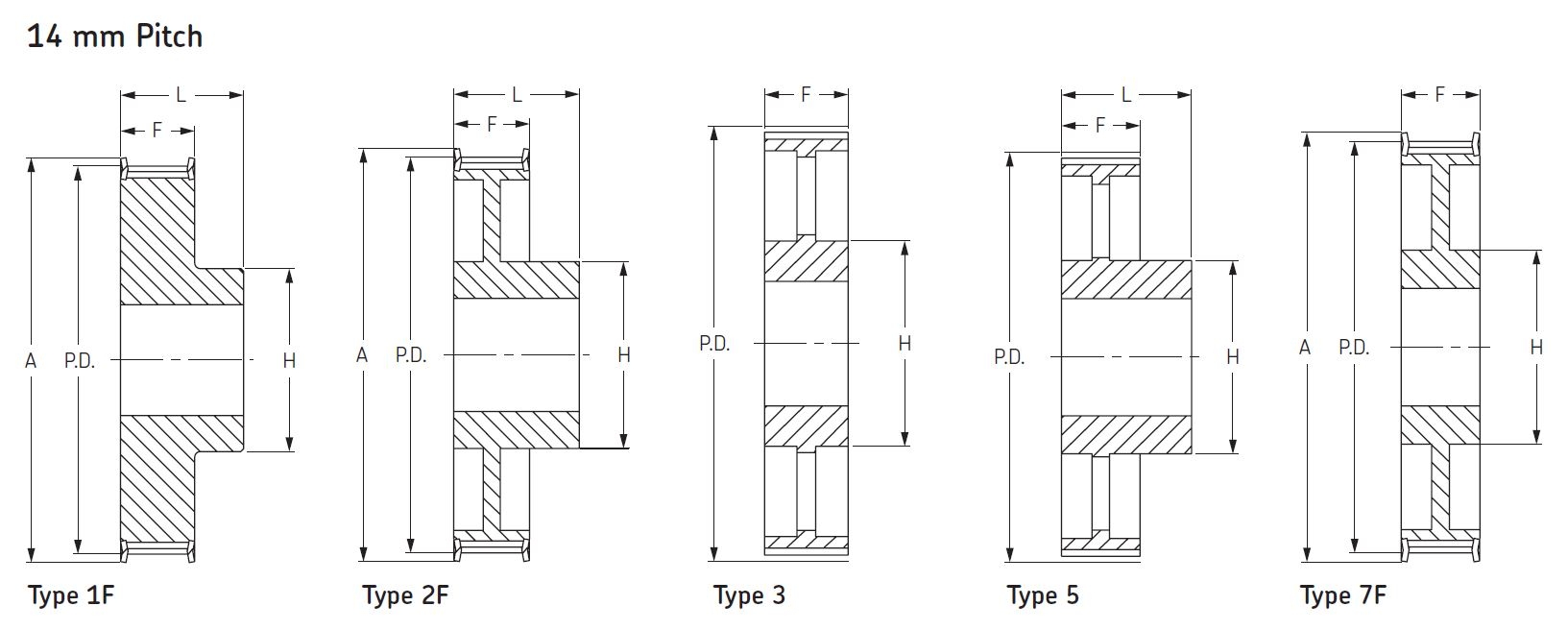

DIMENSIONS : Diameter (P.D.) = 213.90 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 148 mm , H = 150 mm
No. Teeth = 56
DIMENSIONS : Diameter (P.D.) = 249.55 mm , Pulley Type = 1F , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 148 mm , H = 150 mm
No. Teeth = 144
DIMENSIONS : Diameter (P.D.) = 641.71 mm , Pulley Type = 3 , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 133 mm , H = 165 mm
No. Teeth = 168
DIMENSIONS : Diameter (P.D.) = 748.66 mm , Pulley Type = 3 , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 133 mm , H = 165 mm
No. Teeth = 192
DIMENSIONS : Diameter (P.D.) = 855.62 mm , Pulley Type = 3 , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 133 mm , H = 165 mm
No. Teeth = 216
DIMENSIONS : Diameter (P.D.) = 962.57 mm , Pulley Type = 3 , Bore min = 32 mm , Bore max = 100 mm ,F = 133 mm , L = 133 mm , H = 165 mm
