ชื่อรุ่น :
10 Groove D
แบรนด์
SKF
รายละเอียด :
Pulleys ร่อง D (10 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 10 - D120TB
Model description
Bush no. 4545

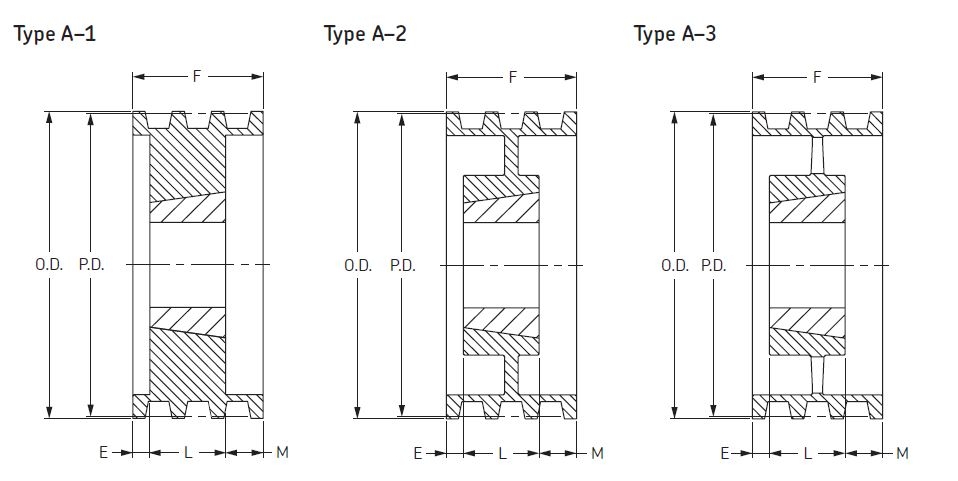

DIMENSIONS : Outside diameter = 12.60 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D130TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 13.60 in. , Pulley Type = A-1 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D135TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 14.10 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D140TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 14.60 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D145TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 15.10 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D150TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 15.60 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D155TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 16.10 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D160TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 16.60 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D180TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 18.60 in. , Pulley Type = A-2 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D220TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 22.60 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D270TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 27.60 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
Model
PHP 10 - D330TB
Model description
Bush no. 4545
DIMENSIONS : Outside diameter = 33.60 in. , Pulley Type = A-3 , Bore min = 2.1/4 in , Bore max = 4.1/2 in. ,F = 14.11/16 in. , L = 4.1/2 in.
Price
