ชื่อรุ่น :

3 Groove C

แบรนด์

SKF

รายละเอียด :

Pulleys ร่อง C (3 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 3 - C70TB
Model description

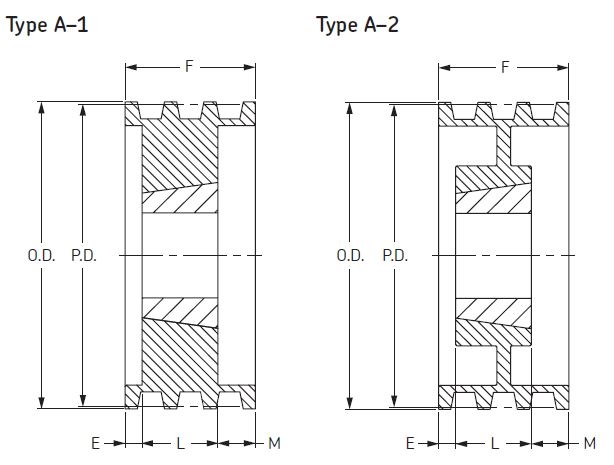

Bush no. 2517 DIMENSIONS : Outside diameter = 7.40 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C75TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 7.90 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C80TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 8.40 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C85TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 8.90 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C90TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 9.40 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C95TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 9.90 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C100TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 10.40 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C105TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 10.90 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C110TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 11.40 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.3/8 in. , L = 1.3/4 in.
Price
Model
PHP 3 - C120TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 12.40 in. , Pulley Type = A-2 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 2 in.
Price
Model
PHP 3 - C130TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 13.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 2 in.
Price
Model
PHP 3 - C140TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 14.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 2 in.
Price
Model
PHP 3 - C160TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 16.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 2 in.
Price
Model
PHP 3 - C180TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 18.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 3 in.
Price
Model
PHP 3 - C200TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 20.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 3 in.
Price
Model
PHP 3 - C240TB
Model description
Bush no. 3030 DIMENSIONS : Outside diameter = 24.40 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.3/8 in. , L = 3 in.
Price
Model
PHP 3 - C300TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 30.40 in. , Pulley Type = B-3 , Bore min = 2 in , Bore max = 3.1/2 in. ,F = 3.3/8 in. , L = 3.1/2 in.
Price
Model
PHP 3 - C360TB
Model description
Bush no. 3535 DIMENSIONS : Outside diameter = 36.40 in. , Pulley Type = B-3 , Bore min = 2 in , Bore max = 3.1/2 in. ,F = 3.3/8 in. , L = 3.1/2 in.
Price
