ชื่อรุ่น :

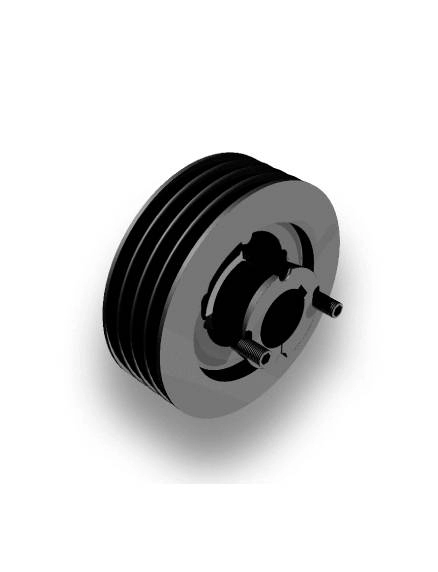

4 Groove A/B

แบรนด์

SKF

รายละเอียด :

Pulleys ร่อง A และ B (4 ร่อง) ล็อคเพลาด้วยเทเปอร์บู๊ธ
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHP 4 - B34TB
Model description

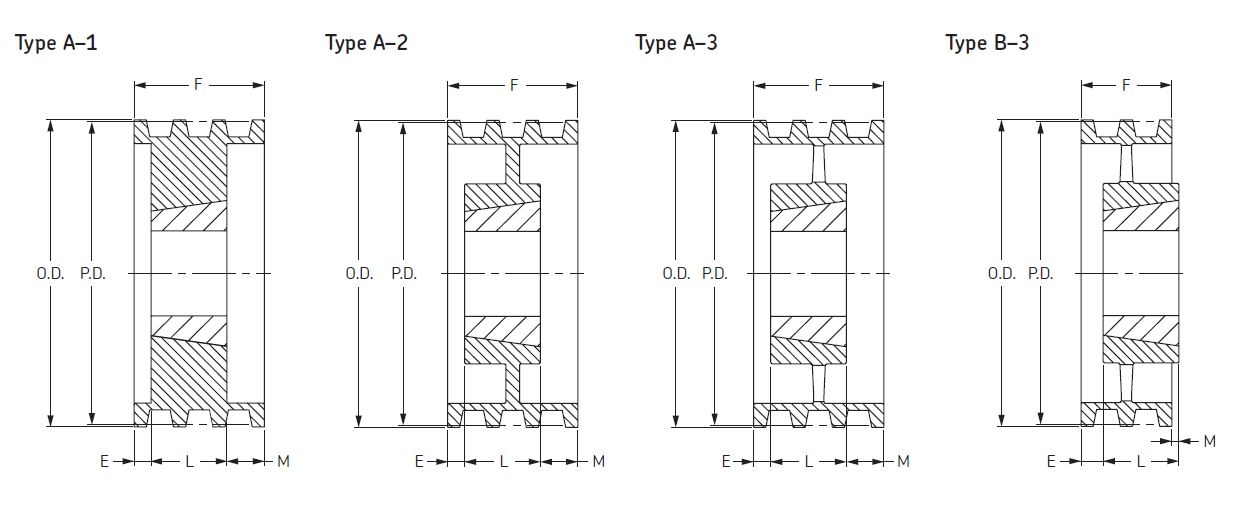

Bush no. 1210 DIMENSIONS : Outside diameter = 3.75 in. , Pulley Type = A-1 , Bore min = 5/8 in , Bore max = 1.1/4 in. ,F = 3.1/4 in. , L = 1 in.
Price
Model
PHP 4 - B36TB
Model description
Bush no. 1210 DIMENSIONS : Outside diameter = 3.95 in. , Pulley Type = A-1 , Bore min = 5/8 in , Bore max = 1.1/4 in. ,F = 3.1/4 in. , L = 1 in.
Price
Model
PHP 4 - B38TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 4.15 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 3.1/4 in. , L = 1 in.
Price
Model
PHP 4 - B40TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 4.35 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 3.1/4 in , L = 1 in.
Price
Model
PHP 4 - B42TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 4.55 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 3.1/4 in , L = 1 in.
Price
Model
PHP 4 - B44TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 4.75 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,FF = 3.1/4 in , L = 1 in.
Price
Model
PHP 4 - B46TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 4.95 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 3.1/4 in. , L = 1 in.
Price
Model
PHP 4 - B48TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 5.15 in. , Pulley Type = A-1 , Bore min = 1/2 in , Bore max = 1.5/8 in. ,F = 3.1/4 in , L = 1 in.
Price
Model
PHP 4 - B50TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.35 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B52TB
Model description
Bush no. 1610 DIMENSIONS : Outside diameter = 5.55 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B54TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.75 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B56TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 5.95 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B58TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.15 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B60TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.35 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B62TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.55 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B64TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.75 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B66TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 6.95 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B68TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 7.15 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B74TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 7.75 in. , Pulley Type = A-1 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B86TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 8.95 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B94TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 9.75 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B110TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 11.35 in. , Pulley Type = A-2 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B124TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 12.75 in. , Pulley Type = A-3 , BBore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B154TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 15.75 in. , Pulley Type = A-3 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B184TB
Model description
Bush no. 2517 DIMENSIONS : Outside diameter = 18.75 in. , Pulley Type = A-3 , Bore min = 3/4 in , Bore max = 2.1/2 in. ,F = 3.1/4 in. , L = 1.3/4 in.
Price
Model
PHP 4 - B200TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 20.35 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.1/4 in. , L = 2 in.
Price
Model
PHP 4 - B250TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 25.35 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.1/4 in. , L = 3 in.
Price
Model
PHP 4 - B300TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 30.35 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.1/4 in. , L = 3 in.
Price
Model
PHP 4 - B380TB
Model description
Bush no. 3020 DIMENSIONS : Outside diameter = 38.35 in. , Pulley Type = A-3 , Bore min = 1.1/4 in , Bore max = 3 in. ,F = 3.1/4 in. , L = 3 in.
Price
