PRODUCT
![]()
ชื่อรุ่น :
XH 400
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 22.225 mm (7/8")
- สายพานหน้ากว้าง 101.6 mm
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 18XH400TB
Model description
No. Teeth = 18 , Bush no. = 2012

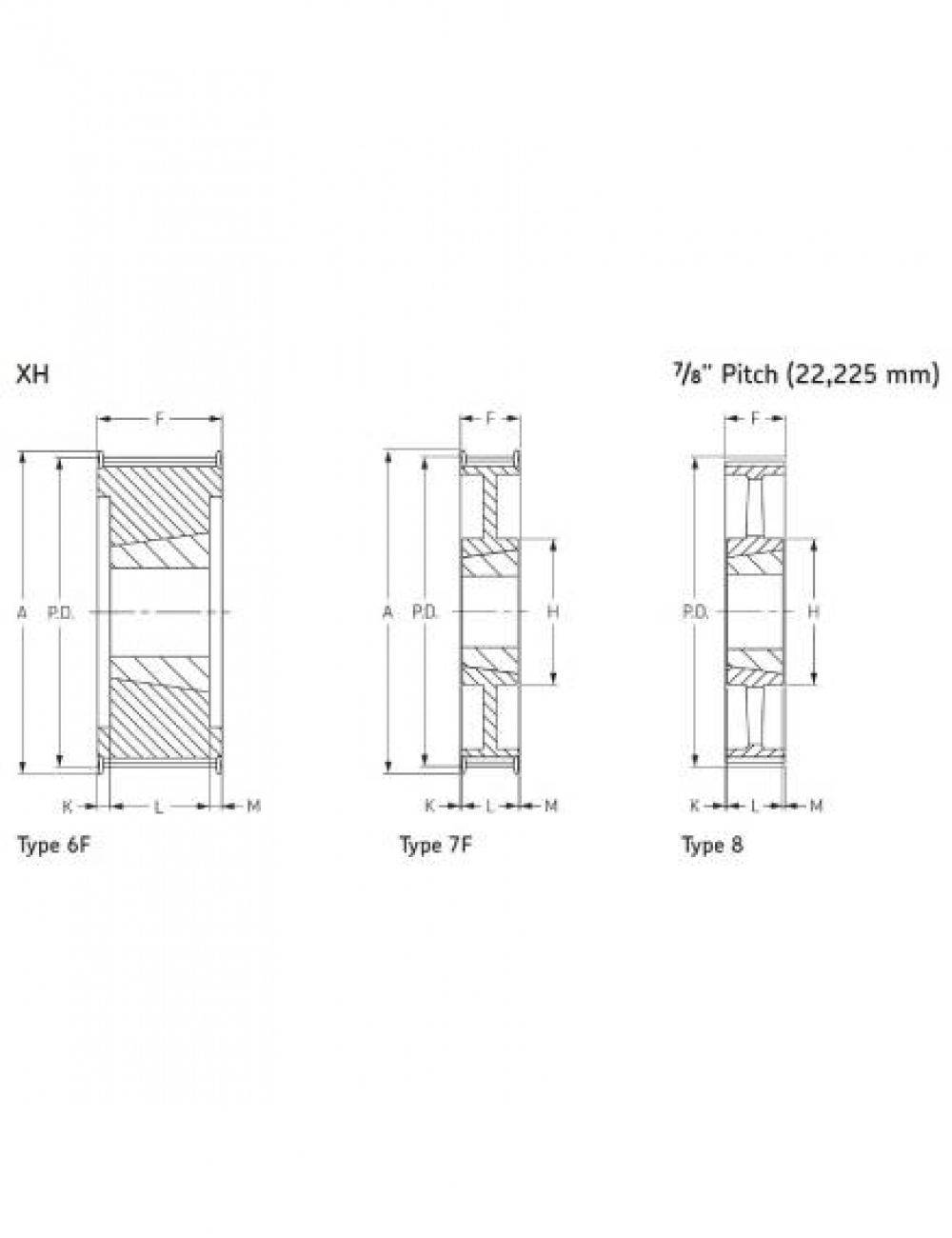

DIMENSIONS : Diameter (P.D.) = 127.34 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 92.1 mm , L = 45 mm
Price
Model
PHP 19XH400TB
Model description
No. Teeth = 19 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 134.41 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 92.1 mm , L = 45 mm
Price
Model
PHP 20XH400TB
Model description
No. Teeth = 20 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 141.49 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 92.1 mm , L = 45 mm
Price
Model
PHP 21XH400TB
Model description
No. Teeth = 21 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 148.56 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 92.1 mm , L = 45 mm
Price
Model
PHP 22XH400TB
Model description
No. Teeth = 22 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 155.64 mm , Pulley Type = 6F , Bore min = 16 mm , Bore max = 60 mm ,F = 92.1 mm , L = 45 mm
Price
Model
PHP 24XH400TB
Model description
No. Teeth = 24 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 25XH400TB
Model description
No. Teeth = 25 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 176.86 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 26XH400TB
Model description
No. Teeth = 26 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 183.93 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 27XH400TB
Model description
No. Teeth = 27 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 191.01 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 28XH400TB
Model description
No. Teeth = 28 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 198.09 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 30XH400TB
Model description
No. Teeth = 30 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 212.23 mm , Pulley Type = 6F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm
Price
Model
PHP 32XH400TB
Model description
No. Teeth = 32 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 226.38 mm , Pulley Type = 7F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm , H = 165 mm
Price
Model
PHP 36XH400TB
Model description
No. Teeth = 36 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 254.64 mm , Pulley Type = 7F , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm , H = 165 mm
Price
Model
PHP 40XH400TB
Model description
No. Teeth = 40 , Bush no. = 3020
DIMENSIONS : Diameter (P.D.) = 282.98 mm , Pulley Type = 8 , Bore min = 25 mm , Bore max = 75 mm ,F = 92.1 mm , L = 51 mm , H = 165 mm
Price
Model
PHP 48XH400TB
Model description
No. Teeth = 48 , Bush no. = 3535
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 8 , Bore min = 30 mm , Bore max = 100 mm ,F = 92.1 mm , L = 89 mm , H = 184 mm
Price
Model
PHP 60XH400TB
Model description
No. Teeth = 60 , Bush no. = 3535
DIMENSIONS : Diameter (P.D.) = 424.47 mm , Pulley Type = 8 , Bore min = 30 mm , Bore max = 100 mm ,F = 92.1 mm , L = 89 mm , H = 184 mm
Price
