PRODUCT
![]()
ชื่อรุ่น :
L 050
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 9.525 mm (3/8")
- สายพานหน้ากว้าง 12.7 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 18L050TB
Model description
No. Teeth = 18 , Bush no. = 1108

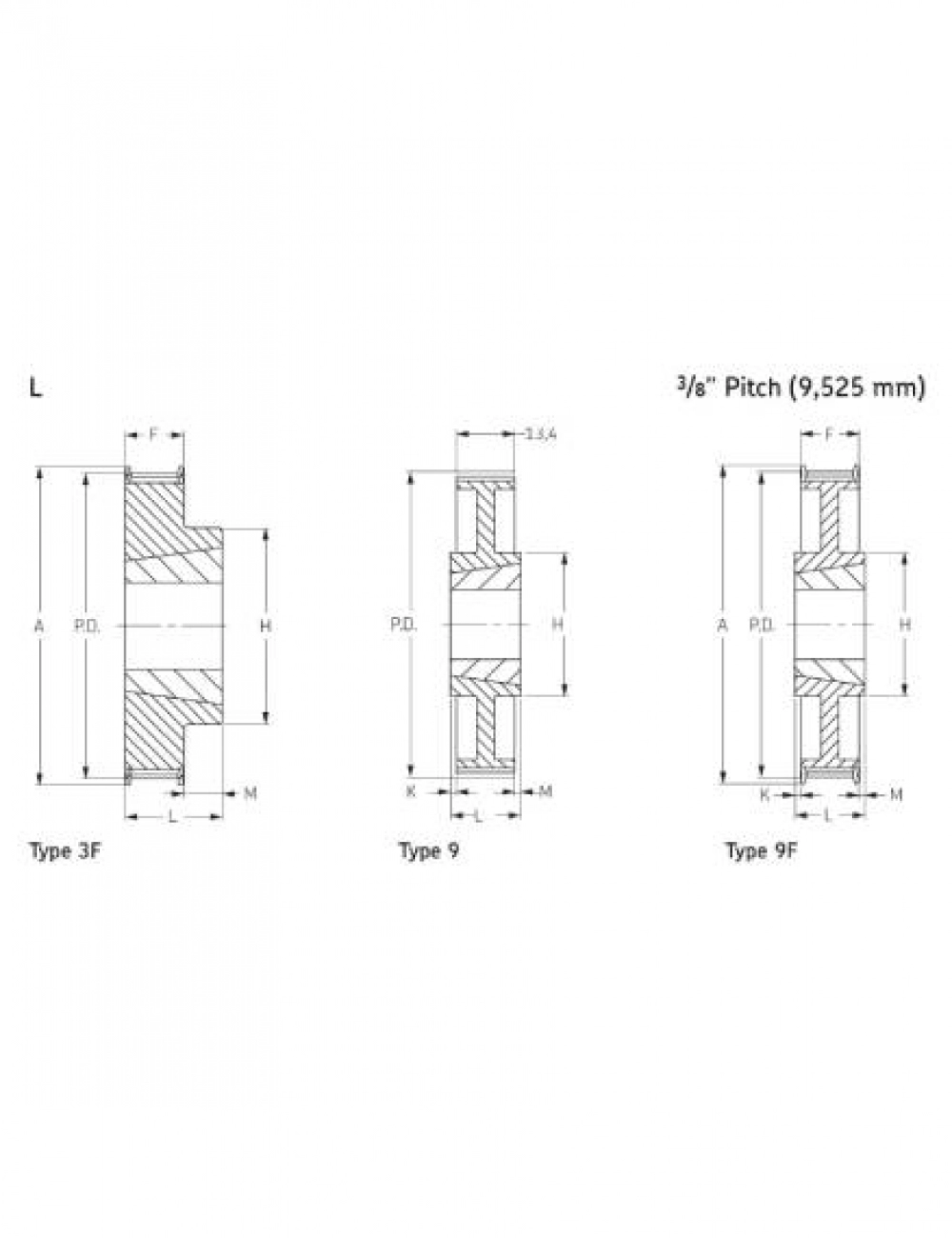

DIMENSIONS : Diameter (P.D.) = 54.57 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 45 mm
Price
Model
PHP 19L050TB
Model description
No. Teeth = 19 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 57.61 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 45 mm
Price
Model
PHP 20L050TB
Model description
No. Teeth = 20 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 60.64 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 47 mm
Price
Model
PHP 21L050TB
Model description
No. Teeth = 21 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 63.67 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 49 mm
Price
Model
PHP 22L050TB
Model description
No. Teeth = 22 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 66.70 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 53 mm
Price
Model
PHP 23L050TB
Model description
No. Teeth = 23 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 69.73 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 54 mm
Price
Model
PHP 24L050TB
Model description
No. Teeth = 24 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 54 mm
Price
Model
PHP 25L050TB
Model description
No. Teeth = 25 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 75.80 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 56 mm
Price
Model
PHP 26L050TB
Model description
No. Teeth = 26 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 78.83 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 60 mm
Price
Model
PHP 27L050TB
Model description
No. Teeth = 27 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 81.86 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 62 mm
Price
Model
PHP 28L050TB
Model description
No. Teeth = 28 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 63 mm
Price
Model
PHP 30L050TB
Model description
No. Teeth = 30 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 90.06 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 70 mm
Price
Model
PHP 32L050TB
Model description
No. Teeth = 32 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 97.02 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 63 mm
Price
Model
PHP 36L050TB
Model description
No. Teeth = 36 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 3F , Bore min = 10 mm , Bore max = 28 mm ,F = 19.1 mm , L = 22 mm , H = 85 mm
Price
Model
PHP 40L050TB
Model description
No. Teeth = 40 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 121.28 mm , Pulley Type = 3F , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 90 mm
Price
Model
PHP 44L050TB
Model description
No. Teeth = 44 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 133.40 mm , Pulley Type = 3F , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 90 mm
Price
Model
PHP 48L050TB
Model description
No. Teeth = 48 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 9F , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 60L050TB
Model description
No. Teeth = 60 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 181.91 mm , Pulley Type = 9 , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 72L050TB
Model description
No. Teeth = 72 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 218.30 mm , Pulley Type = 9 , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 84L050TB
Model description
No. Teeth = 84 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 254.68 mm , Pulley Type = 9 , Bore min = 13 mm , Bore max = 42 mm ,F = 19.1 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 96L050TB
Model description
No. Teeth = 96 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 9 , Bore min = 19 mm , Bore max = 50 mm ,F = 19.1 mm , L = 32 mm , H = 111 mm
Price
Model
PHP 120L050TB
Model description
No. Teeth = 120 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 363.83 mm , Pulley Type = 9 , Bore min = 19 mm , Bore max = 50 mm ,F = 19.1 mm , L = 32 mm , H = 111 mm
Price
