PRODUCT
![]()
ชื่อรุ่น :
H 200
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 12.7 mm (1/2")
- สายพานหน้ากว้าง 50.8 mm
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 16H200TB
Model description
No. Teeth = 16 , Bush no. = 1108

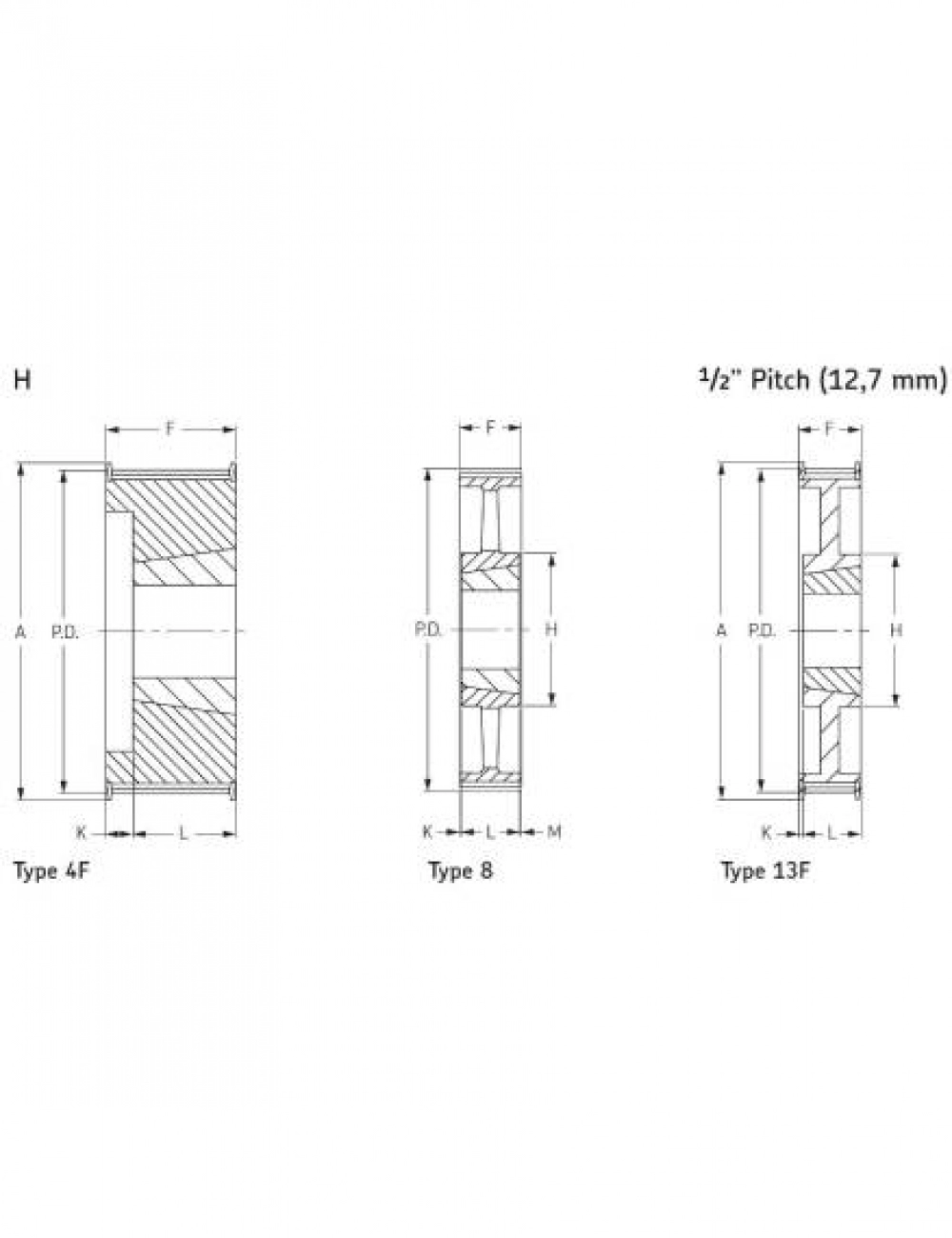

DIMENSIONS : Diameter (P.D.) = 64.57 mm , Pulley Type = 4F , Bore min = 10 mm , Bore max = 28 mm ,F = 58 mm , L = 22 mm
Price
Model
PHP 18H200TB
Model description
No. Teeth = 18 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 19H200TB
Model description
No. Teeth = 19 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 76.81 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 20H200TB
Model description
No. Teeth = 20 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 80.85 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 21H200TB
Model description
No. Teeth = 21 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 22H200TB
Model description
No. Teeth = 22 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 88.94 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 23H200TB
Model description
No. Teeth = 23 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 92.98 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 24H200TB
Model description
No. Teeth = 24 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 97.02 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 25H200TB
Model description
No. Teeth = 25 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 101.06 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 26H200TB
Model description
No. Teeth = 26 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 105.11 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 27H200TB
Model description
No. Teeth = 27 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 28H200TB
Model description
No. Teeth = 28 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 113.19 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 30H200TB
Model description
No. Teeth = 30 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 121.28 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 58 mm , L = 25 mm
Price
Model
PHP 32H200TB
Model description
No. Teeth = 32 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 129.36 mm , Pulley Type = 4F , Bore min = 19 mm , Bore max = 50 mm ,F = 58 mm , L = 32 mm
Price
Model
PHP 36H200TB
Model description
No. Teeth = 36 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 50 mm ,F = 58 mm , L = 32 mm
Price
Model
PHP 40H200TB
Model description
No. Teeth = 40 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 161.70 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 50 mm ,F = 58 mm , L = 32 mm
Price
Model
PHP 44H200TB
Model description
No. Teeth = 44 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 177.87 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 50 mm ,F = 58 mm , L = 32 mm
Price
Model
PHP 48H200TB
Model description
No. Teeth = 48 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 194.04 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 60 mm ,F = 58 mm , L = 45 mm
Price
Model
PHP 60H200TB
Model description
No. Teeth = 60 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 242.55 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 72H200TB
Model description
No. Teeth = 72 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 84H200TB
Model description
No. Teeth = 84 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 96H200TB
Model description
No. Teeth = 96 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 388.08 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
Model
PHP 120H200TB
Model description
No. Teeth = 120 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 485.10 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 60 mm , L = 45 mm
Price
