PRODUCT
![]()
ชื่อรุ่น :
H 150
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 12.7 mm (1/2")
- สายพานหน้ากว้าง 38.1 mm
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 14H150TB
Model description
No. Teeth = 14 , Bush no. = 1108

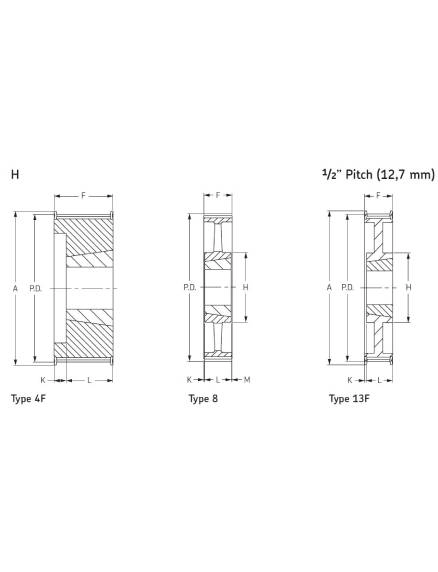

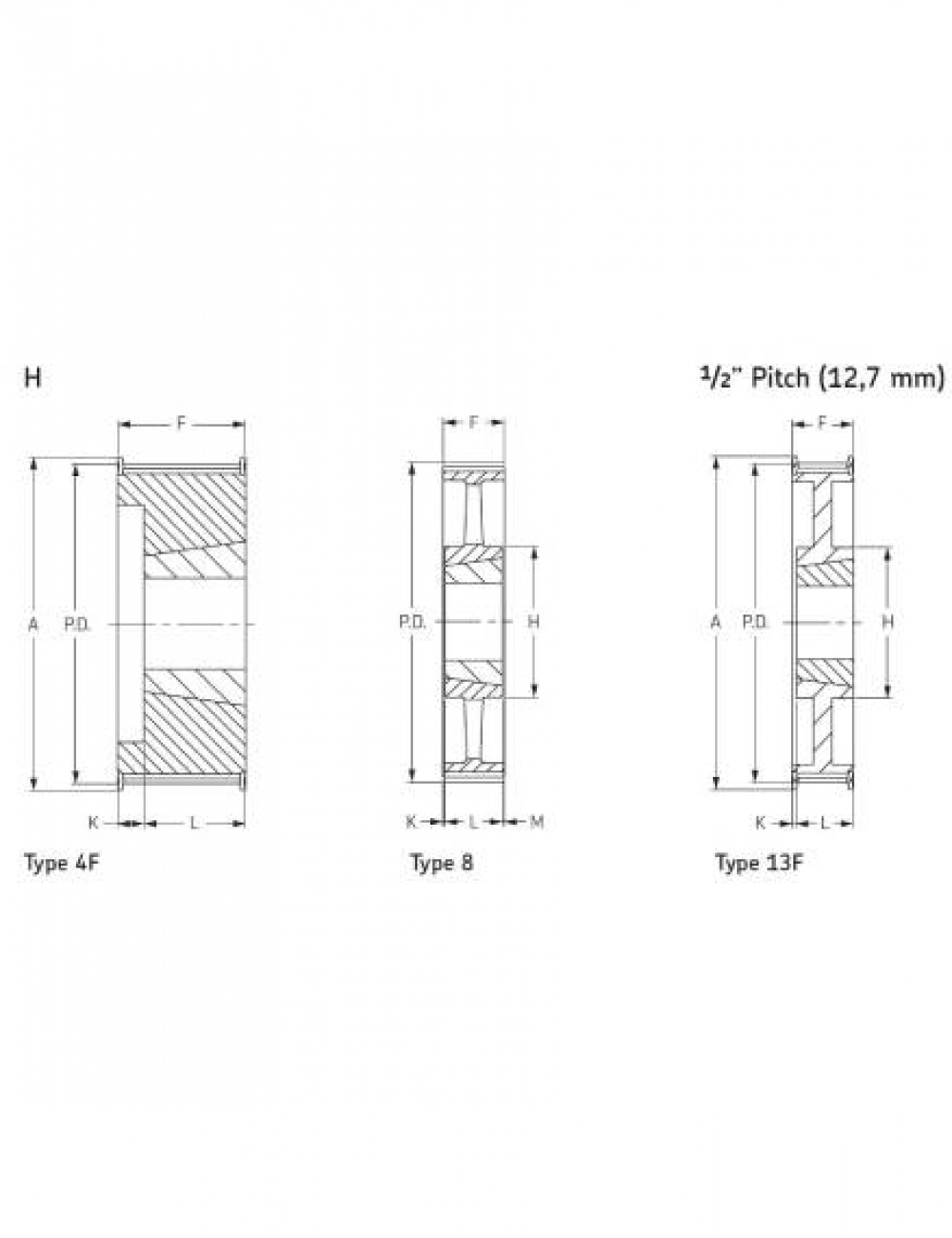

DIMENSIONS : Diameter (P.D.) = 56.60 mm , Pulley Type = 4F , Bore min = 10 mm , Bore max = 28 mm ,F = 45 mm , L = 22 mm
Price
Model
PHP 16H150TB
Model description
No. Teeth = 16 , Bush no. = 1108
DIMENSIONS : Diameter (P.D.) = 64.67 mm , Pulley Type = 4F , Bore min = 10 mm , Bore max = 28 mm ,F = 45 mm , L = 22 mm
Price
Model
PHP 18H150TB
Model description
No. Teeth = 18 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 19H150TB
Model description
No. Teeth = 19 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 76.81 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 20H150TB
Model description
No. Teeth = 20 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 80.85 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 21H150TB
Model description
No. Teeth = 21 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 22H150TB
Model description
No. Teeth = 22 , Bush no. = 1210
DIMENSIONS : Diameter (P.D.) = 88.94 mm , Pulley Type = 4F , Bore min = 16 mm , Bore max = 32 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 23H150TB
Model description
No. Teeth = 23 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 92.98 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 24H150TB
Model description
No. Teeth = 24 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 97.02 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 25H150TB
Model description
No. Teeth = 25 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 101.06 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 26H150TB
Model description
No. Teeth = 26 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 105.11 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 27H150TB
Model description
No. Teeth = 27 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 28H150TB
Model description
No. Teeth = 28 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 113.19 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 30H150TB
Model description
No. Teeth = 30 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 121.28 mm , Pulley Type = 4F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm
Price
Model
PHP 32H150TB
Model description
No. Teeth = 32 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 129.36 mm , Pulley Type = 13F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 36H150TB
Model description
No. Teeth = 36 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 13F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 40H150TB
Model description
No. Teeth = 40 , Bush no. = 1610
DIMENSIONS : Diameter (P.D.) = 161.70 mm , Pulley Type = 13F , Bore min = 13 mm , Bore max = 42 mm ,F = 45 mm , L = 25 mm , H = 92 mm
Price
Model
PHP 44H150TB
Model description
No. Teeth = 44 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 177.87 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 50 mm ,F = 45 mm , L = 32 mm , H = 106 mm
Price
Model
PHP 48H150TB
Model description
No. Teeth = 48 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 194.34 mm , Pulley Type = 13F , Bore min = 19 mm , Bore max = 50 mm ,F = 45 mm , L = 32 mm , H = 106 mm
Price
Model
PHP 60H150TB
Model description
No. Teeth = 60 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 242.55 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 50 mm ,F = 46 mm , L = 32 mm , H = 106 mm
Price
Model
PHP 72H150TB
Model description
No. Teeth = 72 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 50 mm ,F = 46 mm , L = 32 mm , H = 106 mm
Price
Model
PHP 84H150TB
Model description
No. Teeth = 84 , Bush no. = 2012
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 50 mm ,F = 46 mm , L = 32 mm , H = 111 mm
Price
Model
PHP 96H150TB
Model description
No. Teeth = 96 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 388.08 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 46 mm , L = 45 mm , H = 124 mm
Price
Model
PHP 120H150TB
Model description
No. Teeth = 120 , Bush no. = 2517
DIMENSIONS : Diameter (P.D.) = 485.10 mm , Pulley Type = 8 , Bore min = 19 mm , Bore max = 60 mm ,F = 46 mm , L = 45 mm , H = 124 mm
Price
