PRODUCT
![]()
ชื่อรุ่น :
L 075
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 9.525 mm (3/8")
- สายพานหน้ากว้าง 19.1 mm
ดูรูปสินค้าเพิ่มเติมติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 10L075RSB
Model description
No. Teeth = 10

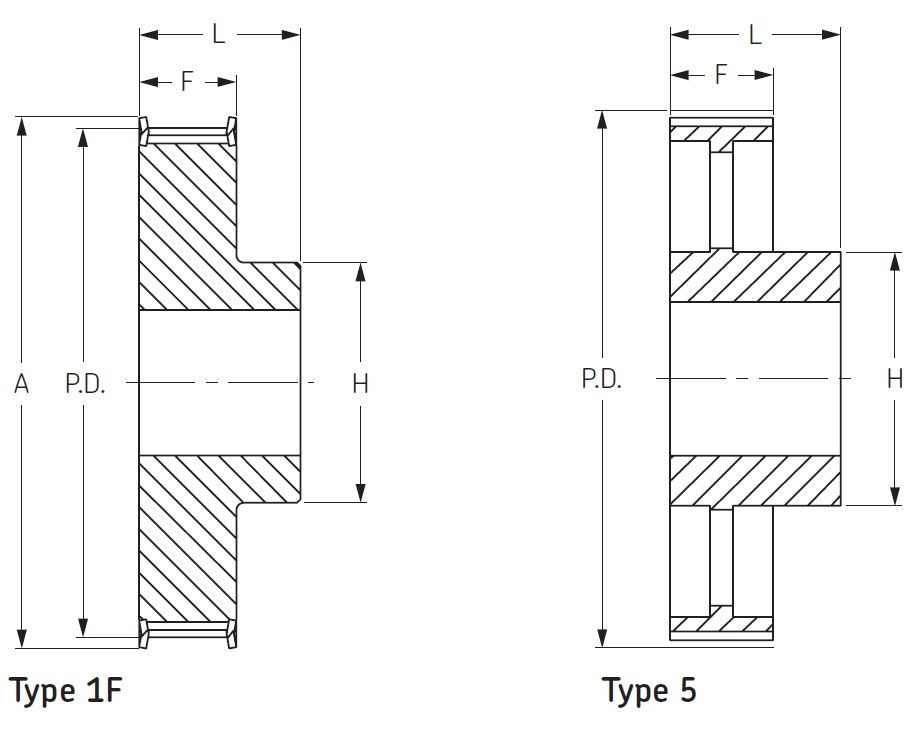

DIMENSIONS : Diameter (P.D.) = 30.32 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 14 mm ,F = 25.4 mm , L = 38 mm , H = 22 mm
Price
Model
PHP 11L075RSB
Model description
No. Teeth = 11
DIMENSIONS : Diameter (P.D.) = 33.35 mm , Pulley Type = 1F , Bore min = 6 mm , Bore max = 14 mm ,F = 25.4 mm , L = 38 mm , H = 22 mm
Price
Model
PHP 12L075RSB
Model description
No. Teeth = 12
DIMENSIONS : Diameter (P.D.) = 36.38 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 20 mm ,F = 25.4 mm , L = 38 mm , H = 28 mm
Price
Model
PHP 13L075RSB
Model description
No. Teeth = 13
DIMENSIONS : Diameter (P.D.) = 39.41 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 20 mm ,F = 25.4 mm , L = 38 mm , H = 28 mm
Price
Model
PHP 14L075RSB
Model description
No. Teeth = 14
DIMENSIONS : Diameter (P.D.) = 42.45 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 20 mm ,F = 25.4 mm , L = 38 mm , H = 28 mm
Price
Model
PHP 15L075RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 45.48 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 23 mm ,F = 25.4 mm , L = 38 mm , H = 32 mm
Price
Model
PHP 16L075RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 48.51 mm , Pulley Type = 1F , Bore min = 8 mm , Bore max = 24 mm ,F = 25.4 mm , L = 38 mm , H = 36 mm
Price
Model
PHP 17L075RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 51.54 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 24 mm ,F = 25.4 mm , L = 38 mm , H = 38 mm
Price
Model
PHP 18L075RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 54.57 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 27 mm ,F = 25.4 mm , L = 38 mm , H = 40 mm
Price
Model
PHP 19L075RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 57.61 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 27 mm ,F = 25.4 mm , L = 38 mm , H = 40 mm
Price
Model
PHP 20L075RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 60.64 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 27 mm ,F = 25.4 mm , L = 38 mm , H = 40 mm
Price
Model
PHP 21L075RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 63.67 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 27 mm ,F = 25.4 mm , L = 38 mm , H = 40 mm
Price
Model
PHP 22L075RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 66.70 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 23L075RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 69.73 mm , Pulley Type = 1F , Bore min = 10 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 24L075RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 25L075RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 75.80 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 26L075RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 78.83 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 27L075RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 81.86 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 28L075RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 29L075RSB
Model description
No. Teeth = 29
DIMENSIONS : Diameter (P.D.) = 87.93 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 30L075RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 90.96 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 31L075RSB
Model description
No. Teeth = 31
DIMENSIONS : Diameter (P.D.) = 93.99 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 32L075RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 97.02 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 33L075RSB
Model description
No. Teeth = 33
DIMENSIONS : Diameter (P.D.) = 100.5 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 34L075RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 103.08 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 35L075RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 106.12 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 33 mm ,F = 25.4 mm , L = 38 mm , H = 50 mm
Price
Model
PHP 36L075RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 36 mm ,F = 25.4 mm , L = 38 mm , H = 55 mm
Price
Model
PHP 38L075RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 115.21 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 36 mm ,F = 25.4 mm , L = 38 mm , H = 55 mm
Price
Model
PHP 40L075RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 121.28 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 42L075RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 127.34 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 44L075RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 133.40 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 45L075RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 136.44 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 48L075RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 50L075RSB
Model description
No. Teeth = 50
DIMENSIONS : Diameter (P.D.) = 151.60 mm , Pulley Type = 5 , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 52L075RSB
Model description
No. Teeth = 52
DIMENSIONS : Diameter (P.D.) = 157.66 mm , Pulley Type = 5 , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 56L075RSB
Model description
No. Teeth = 56
DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 5 , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 57L075RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 172.82 mm , Pulley Type = 5 , Bore min = 12 mm , Bore max = 40 mm ,F = 25.4 mm , L = 38 mm , H = 60 mm
Price
Model
PHP 60L075RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 181.91 mm , Pulley Type = 5 , Bore min = 15 mm , Bore max = 45 mm ,F = 25.4 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 72L075RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 218.30 mm , Pulley Type = 5 , Bore min = 15 mm , Bore max = 45 mm ,F = 25.4 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 76L075RSB
Model description
No. Teeth = 76
DIMENSIONS : Diameter (P.D.) = 230.43 mm , Pulley Type = 5 , Bore min = 15 mm , Bore max = 45 mm ,F = 25.4 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 84L075RSB
Model description
No. Teeth = 84
DIMENSIONS : Diameter (P.D.) = 254.67 mm , Pulley Type = 5 ,Bore min = 15 mm , Bore max = 45 mm ,F = 25.4 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 96L075RSB
Model description
No. Teeth = 96
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 5 ,Bore min = 15 mm , Bore max = 45 mm ,F = 25.4 mm , L = 38 mm , H = 75 mm
Price
Model
PHP 120L075RSB
Model description
No. Teeth = 120
DIMENSIONS : Diameter (P.D.) = 363.83 mm , Pulley Type = 5 , Bore min = 15 mm , Bore max = 70 mm ,F = 25.4 mm , L = 38 mm , H = 120 mm
Price
