PRODUCT
![]()
ชื่อรุ่น :
H 200
แบรนด์
SKF
รายละเอียด :
- ระยะห่างระหว่างฟัน ( Pitch ) = 12.7 mm (1/2")
- สายพานหน้ากว้าง 50.8 mm
ติดต่อเราได้ที่ :
Model
Model description
Price
Model
PHP 14H200RSB
Model description
No. Teeth = 14

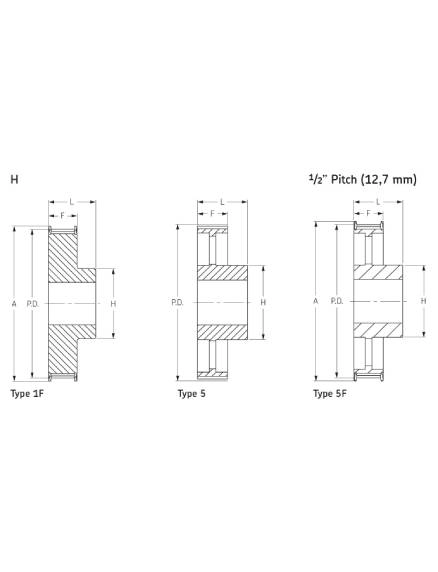

DIMENSIONS : Diameter (P.D.) = 56.60 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 27 mm ,F = 59.5 mm , L = 70 mm , H = 40 mm
Price
Model
PHP 15H200RSB
Model description
No. Teeth = 15
DIMENSIONS : Diameter (P.D.) = 60.64 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 59.5 mm , L = 70 mm , H = 46 mm
Price
Model
PHP 16H200RSB
Model description
No. Teeth = 16
DIMENSIONS : Diameter (P.D.) = 64.67 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 59.5 mm , L = 70 mm , H = 46 mm
Price
Model
PHP 17H200RSB
Model description
No. Teeth = 17
DIMENSIONS : Diameter (P.D.) = 68.72 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 59.5 mm , L = 70 mm , H = 46 mm
Price
Model
PHP 18H200RSB
Model description
No. Teeth = 18
DIMENSIONS : Diameter (P.D.) = 72.77 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 30 mm ,F = 59.5 mm , L = 70 mm , H = 55 mm
Price
Model
PHP 19H200RSB
Model description
No. Teeth = 19
DIMENSIONS : Diameter (P.D.) = 76.81 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 36 mm ,F = 59.5 mm , L =70 mm , H = 60 mm
Price
Model
PHP 20H200RSB
Model description
No. Teeth = 20
DIMENSIONS : Diameter (P.D.) = 80.85 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 41 mm ,F = 59.5 mm , L = 70 mm , H = 62 mm
Price
Model
PHP 21H200RSB
Model description
No. Teeth = 21
DIMENSIONS : Diameter (P.D.) = 84.89 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 43 mm ,F = 59.5 mm , L = 70 mm , H = 67 mm
Price
Model
PHP 22H200RSB
Model description
No. Teeth = 22
DIMENSIONS : Diameter (P.D.) = 88.94 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 45 mm ,F = 59.5 mm , L = 70 mm , H = 70 mm
Price
Model
PHP 23H200RSB
Model description
No. Teeth = 23
DIMENSIONS : Diameter (P.D.) = 92.98 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 46 mm ,F = 59.5 mm , L = 70 mm , H = 72 mm
Price
Model
PHP 24H200RSB
Model description
No. Teeth = 24
DIMENSIONS : Diameter (P.D.) = 97.03 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 47 mm ,F = 59.5 mm , L = 70 mm , H = 75 mm
Price
Model
PHP 25H200RSB
Model description
No. Teeth = 25
DIMENSIONS : Diameter (P.D.) = 101.06 mm , Pulley Type = 1F , Bore min = 12 mm , Bore max = 47 mm ,F = 59.5 mm , L = 70 mm , H = 75 mm
Price
Model
PHP 26H200RSB
Model description
No. Teeth = 26
DIMENSIONS : Diameter (P.D.) = 105.11 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 27H200RSB
Model description
No. Teeth = 27
DIMENSIONS : Diameter (P.D.) = 109.15 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 28H200RSB
Model description
No. Teeth = 28
DIMENSIONS : Diameter (P.D.) = 113.18 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 29H200RSB
Model description
No. Teeth = 29
DIMENSIONS : Diameter (P.D.) = 117.23 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 30H200RSB
Model description
No. Teeth = 30
DIMENSIONS : Diameter (P.D.) = 121.29 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 31H200RSB
Model description
No. Teeth = 31
DIMENSIONS : Diameter (P.D.) = 125.32 mm , Pulley Type = 1F , Bore min = 15 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 32H200RSB
Model description
No. Teeth = 32
DIMENSIONS : Diameter (P.D.) = 129.36 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 33H200RSB
Model description
No. Teeth = 33
DIMENSIONS : Diameter (P.D.) = 133.40 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 34H200RSB
Model description
No. Teeth = 34
DIMENSIONS : Diameter (P.D.) = 137.45 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 35H200RSB
Model description
No. Teeth = 35
DIMENSIONS : Diameter (P.D.) = 141.49 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 36H200RSB
Model description
No. Teeth = 36
DIMENSIONS : Diameter (P.D.) = 145.53 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 38H200RSB
Model description
No. Teeth = 38
DIMENSIONS : Diameter (P.D.) = 153.62 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 40H200RSB
Model description
No. Teeth = 40
DIMENSIONS : Diameter (P.D.) = 161.70 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 42H200RSB
Model description
No. Teeth = 42
DIMENSIONS : Diameter (P.D.) = 169.79 mm , Pulley Type = 1F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 44H200RSB
Model description
No. Teeth = 44
DIMENSIONS : Diameter (P.D.) = 177.87 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 48 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 45H200RSB
Model description
No. Teeth = 45
DIMENSIONS : Diameter (P.D.) = 181.91 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 48 mm ,F = 59.5 mm , L = 70 mm , H = 80 mm
Price
Model
PHP 48H200RSB
Model description
No. Teeth = 48
DIMENSIONS : Diameter (P.D.) = 194.03 mm , Pulley Type = 5F , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 75 mm , H = 90 mm
Price
Model
PHP 50H200RSB
Model description
No. Teeth = 50
DIMENSIONS : Diameter (P.D.) = 202.13 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 75 mm , H = 90 mm
Price
Model
PHP 52H200RSB
Model description
No. Teeth = 52
DIMENSIONS : Diameter (P.D.) = 210.21 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 75 mm , H = 90 mm
Price
Model
PHP 57H200RSB
Model description
No. Teeth = 57
DIMENSIONS : Diameter (P.D.) = 230.43 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 75 mm , H = 90 mm
Price
Model
PHP 58H200RSB
Model description
No. Teeth = 58
DIMENSIONS : Diameter (P.D.) = 234.47 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 54 mm ,F = 59.5 mm , L = 75 mm , H = 90 mm
Price
Model
PHP 60H200RSB
Model description
No. Teeth = 60
DIMENSIONS : Diameter (P.D.) = 242.55 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 70H200RSB
Model description
No. Teeth = 70
DIMENSIONS : Diameter (P.D.) = 282.98 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 72H200RSB
Model description
No. Teeth = 72
DIMENSIONS : Diameter (P.D.) = 291.06 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 76H200RSB
Model description
No. Teeth = 76
DIMENSIONS : Diameter (P.D.) = 307.23 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 84H200RSB
Model description
No. Teeth = 84
DIMENSIONS : Diameter (P.D.) = 339.57 mm , Pulley Type = 5 , Bore min = 20 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 96H200RSB
Model description
No. Teeth = 96
DIMENSIONS : Diameter (P.D.) = 388.08 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 120H200RSB
Model description
No. Teeth = 120
DIMENSIONS : Diameter (P.D.) = 485.10 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
Model
PHP 156H200RSB
Model description
No. Teeth = 156
DIMENSIONS : Diameter (P.D.) = 630.63 mm , Pulley Type = 5 , Bore min = 24 mm , Bore max = 70 mm ,F = 59.5 mm , L = 75 mm , H = 120 mm
Price
