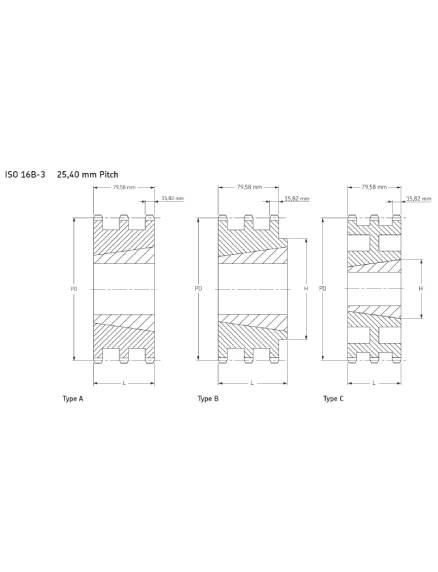

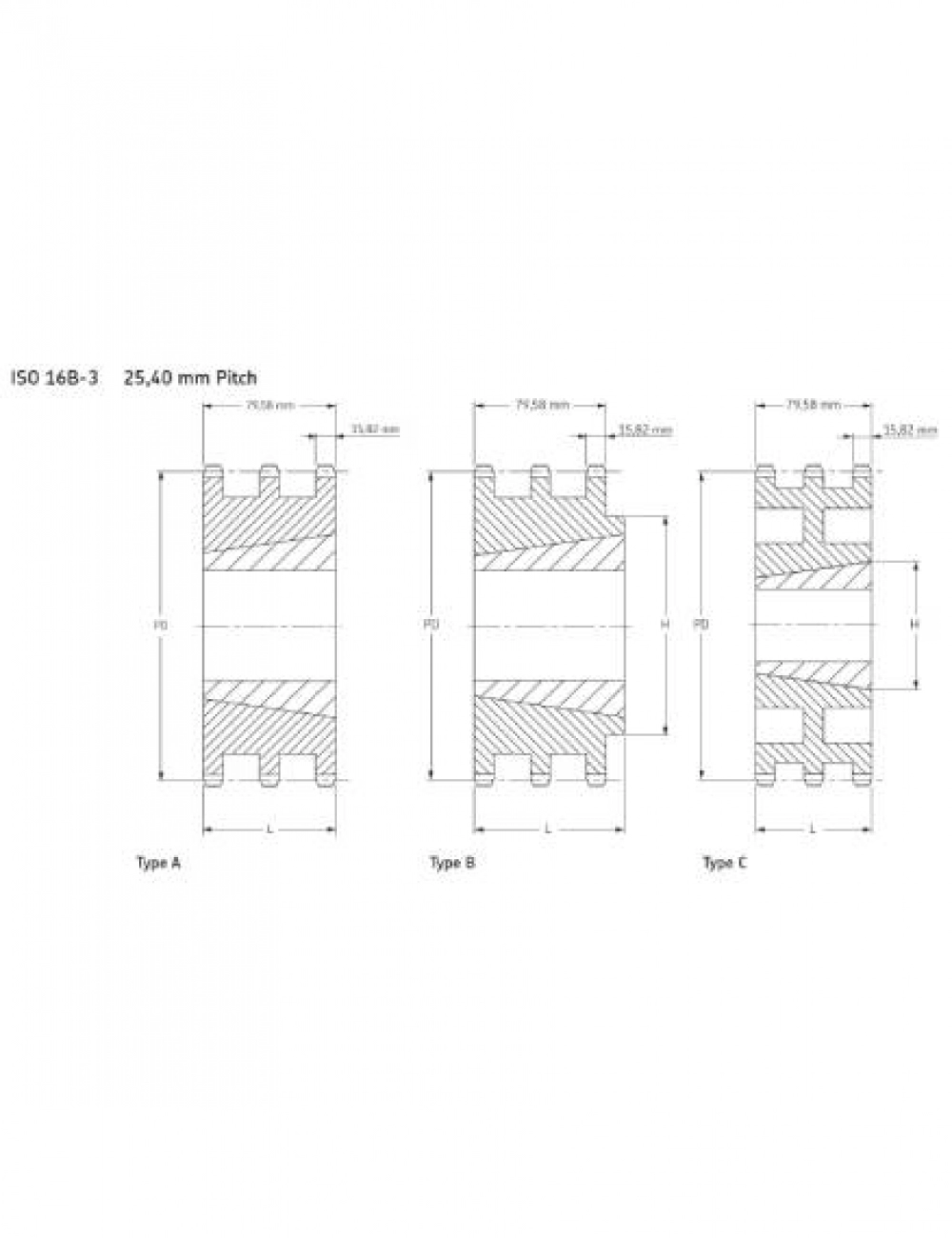

ISO PHS 16B-3TBXX

No.Teeth = 17 , Bushing Size :2517
DIMENSIONS :Pitch diameter = 138.22 mm , Type = A , Bore min. = 16 mm , Bore max. = 65 mm ,L = mm , H = mm

No.Teeth = 19 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 154.33 mm , Type = B , Bore min. = 35 mm , Bore max. = 75 mm ,L = mm , H = 76.2 mm

No.Teeth = 21 , Bushing Size :3020
DIMENSIONS :Pitch diameter = 170.43 mm , Type = B , Bore min. = 35 mm , Bore max. = 75 mm ,L = mm , H = 76.2 mm

No.Teeth = 23 , Bushing Size :3525
DIMENSIONS :Pitch diameter = 186.53 mm , Type = B , Bore min. = 35 mm , Bore max. = 100 mm ,L = mm , H = 65.0 mm

No.Teeth = 25 , Bushing Size :3525
DIMENSIONS :Pitch diameter = 202.66 mm , Type = B , Bore min. = 35 mm , Bore max. = 100 mm ,L = mm , H = 65.0 mm

No.Teeth = 27 , Bushing Size :3525
DIMENSIONS :Pitch diameter = 218.79 mm , Type = B , Bore min. = 35 mm , Bore max. = 100 mm ,L = mm , H = 65.0 mm

No.Teeth = 30 , Bushing Size : 3525
DIMENSIONS :Pitch diameter = 243.00 mm , Type = B , Bore min. = 35 mm , Bore max. = 100 mm ,L = mm , H = 65.0 mm

No.Teeth = 38 , Bushing Size :3535
DIMENSIONS :Pitch diameter = 364.13 mm , Type = B , Bore min. = 35 mm , Bore max. = 100 mm ,L = 178 mm , H =89.0 mm

No.Teeth = 45 , Bushing Size :4040
DIMENSIONS :Pitch diameter = 364.13 mm , Type = C , Bore min. = 40 mm , Bore max. = 115 mm ,L = 216 mm , H = 102.0 mm

No.Teeth = 57 , Bushing Size :4040
DIMENSIONS :Pitch diameter = 461.07 mm , Type = C , Bore min. = 40 mm , Bore max. = 115 mm ,L = 216 mm , H = 89.0 mm

No.Teeth = 76 , Bushing Size :4040
DIMENSIONS :Pitch diameter = 614.65 mm , Type = C , Bore min. = 40 mm , Bore max. = 115 mm ,L = 216 mm , H = 89.0 mm
