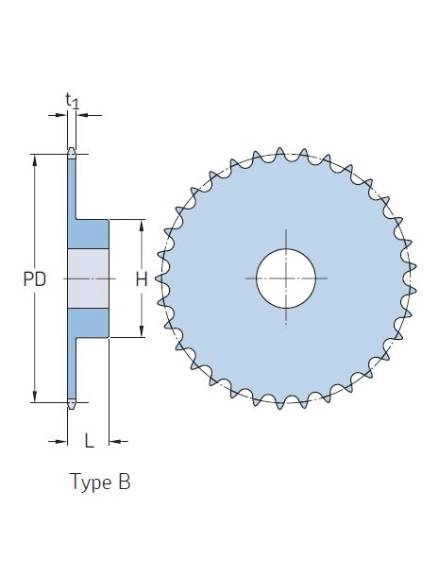

ISO PHS 16B - 1BXXX

No.Teeth = 8
DIMENSIONS : Pitch diameter = 66.37 mm , Bore min. = 16 mm , Bore max. = 22 mm , H = 42 mm , L = 35 mm

No.Teeth = 9
DIMENSIONS : Pitch diameter = 74.27 mm , Bore min. = 16 mm , Bore max. = 28 mm , H = 50 mm , L = 35 mm

No.Teeth = 10
DIMENSIONS : Pitch diameter = 82.19 mm , Bore min. = 16 mm , Bore max. = 34 mm , H = 55 mm , L = 35 mm

No.Teeth = 11
DIMENSIONS : Pitch diameter = 90.14 mm , Bore min. = 16 mm , Bore max. = 38 mm , H = 61 mm , L = 40 mm

No.Teeth = 12
DIMENSIONS : Pitch diameter = 98.14 mm , Bore min. = 16 mm , Bore max. = 44 mm , H = 69 mm , L = 40 mm

No.Teeth = 13
DIMENSIONS : Pitch diameter = 106.12 mm , Bore min. = 16 mm , Bore max. = 48 mm , H = 78 mm , L = 40 mm

No.Teeth = 14
DIMENSIONS : Pitch diameter =114.15 mm , Bore min. = 16 mm , Bore max. =53 mm , H = 84 mm , L = 40 mm

No.Teeth = 15
DIMENSIONS : Pitch diameter = 122.17 mm , Bore min. = 16 mm , Bore max. = 58 mm , H = 92 mm , L = 40 mm

No.Teeth = 16
DIMENSIONS : Pitch diameter =130.20 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 100 mm , L = 45 mm

No.Teeth = 17
DIMENSIONS : Pitch diameter = 138.22 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 45 mm

No.Teeth = 18
DIMENSIONS : Pitch diameter = 146.28 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 45 mm

No.Teeth = 19
DIMENSIONS : Pitch diameter = 154.33 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 45 mm

No.Teeth = 20
DIMENSIONS : Pitch diameter = 162.38 mm , Bore min. = 20 mm , Bore max. =70 mm , H = 100 mm , L = 45 mm

No.Teeth = 21
DIMENSIONS : Pitch diameter = 170.43 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 50 mm

No.Teeth = 22
DIMENSIONS : Pitch diameter = 178.48 mm , Bore min. =20 mm , Bore max. = 70 mm , H = 100 mm , L = 50mm

No.Teeth = 23
DIMENSIONS : Pitch diameter = 186.53 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 50 mm

No.Teeth = 24
DIMENSIONS : Pitch diameter = 194.59 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 50 mm

No.Teeth = 25
DIMENSIONS : Pitch diameter = 202.66 mm , Bore min. = 20 mm , Bore max. =70 mm , H =100 mm , L = 50 mm

No.Teeth = 26
DIMENSIONS : Pitch diameter = 210.72mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 27
DIMENSIONS : Pitch diameter = 218.79 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 28
DIMENSIONS : Pitch diameter = 226.85 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 29
DIMENSIONS : Pitch diameter = 234.92 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 30
DIMENSIONS : Pitch diameter = 243.00 mm , Bore min. = 20 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 31
DIMENSIONS : Pitch diameter = 251.08 mm , Bore min. = 25 mm , Bore max. =76 mm , H =120 mm , L = 50 mm

No.Teeth = 32
DIMENSIONS : Pitch diameter = 259.13 mm , Bore min. = 25 mm , Bore max. = 76mm , H = 120 mm , L = 50 mm

No.Teeth = 33
DIMENSIONS : Pitch diameter = 267.21 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 34
DIMENSIONS : Pitch diameter = 275.28 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 35
DIMENSIONS : Pitch diameter = 283.36 mm , Bore min. = 25 mm , Bore max. =76 mm , H =120 mm , L = 50 mm

No.Teeth = 36
DIMENSIONS : Pitch diameter = 291.44 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 37
DIMENSIONS : Pitch diameter = 299.51 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 38
DIMENSIONS : Pitch diameter = 307.59 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 39
DIMENSIONS : Pitch diameter = 315.67 mm , Bore min. = 25 mm , Bore max. = 76 mm , H = 120 mm , L = 50 mm

No.Teeth = 40
DIMENSIONS : Pitch diameter = 323.75 mm , Bore min. = 25 mm , Bore max. =76 mm , H = 120 mm , L = 50 mm

No.Teeth = 41
DIMENSIONS : Pitch diameter = 331.82 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 42
DIMENSIONS : Pitch diameter = 339.90 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 43
DIMENSIONS : Pitch diameter = 347.98 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 44
DIMENSIONS : Pitch diameter = 356.06 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 45
DIMENSIONS : Pitch diameter = 364.13 mm , Bore min. = 25 mm , Bore max. = 65 mm , H = 125 mm , L = 68 mm

No.Teeth = 46
DIMENSIONS : Pitch diameter = 372.21 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 47
DIMENSIONS : Pitch diameter = 380.29 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 48
DIMENSIONS : Pitch diameter = 388.36 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth = 50
DIMENSIONS : Pitch diameter = 404.52 mm , Bore min. = 25 mm , Bore max. = 80 mm , H = 125 mm , L = 68 mm

No.Teeth =54
DIMENSIONS : Pitch diameter = 436.85 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 125 mm , L =68 mm

No.Teeth = 57
DIMENSIONS : Pitch diameter = 461.07 mm , Bore min. = 25 mm , Bore max. =65 mm , H = 125 mm , L = 68mm

No.Teeth = 60
DIMENSIONS : Pitch diameter = 485.32 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 133 mm , L = 68 mm

No.Teeth = 65
DIMENSIONS : Pitch diameter = 525.73 mm , Bore min. = 25 mm , Bore max. = 85 mm , H = 140 mm , L = 68 mm
