PRODUCT
![]()
ชื่อรุ่น :
ISO PHS 16B - 1AXXX
แบรนด์
SKF
รายละเอียด :

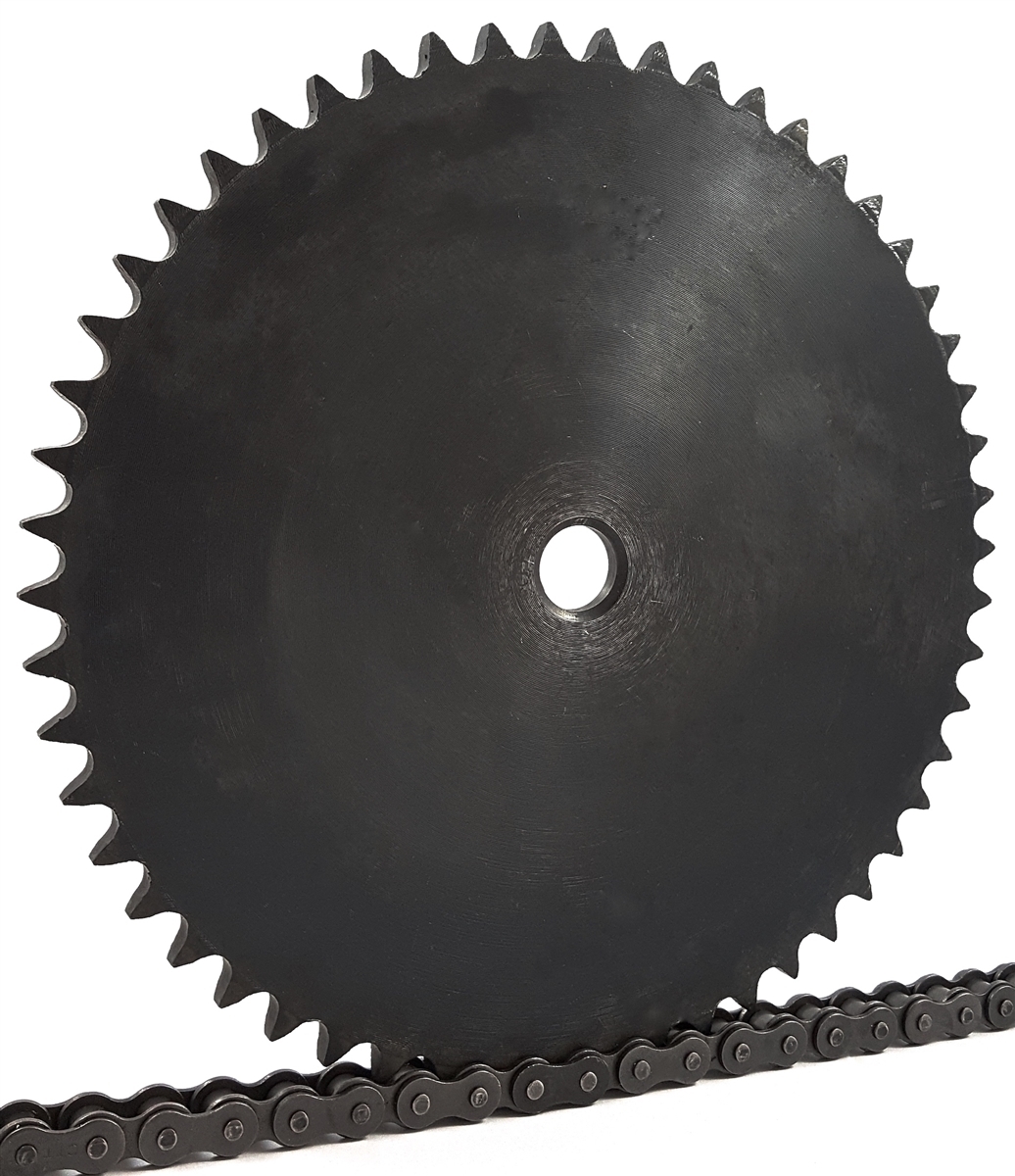

- เฟืองโซ่ชั้นเดียว Pitch = 25.40 mm
- ไม่มีดุมยื่น
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8

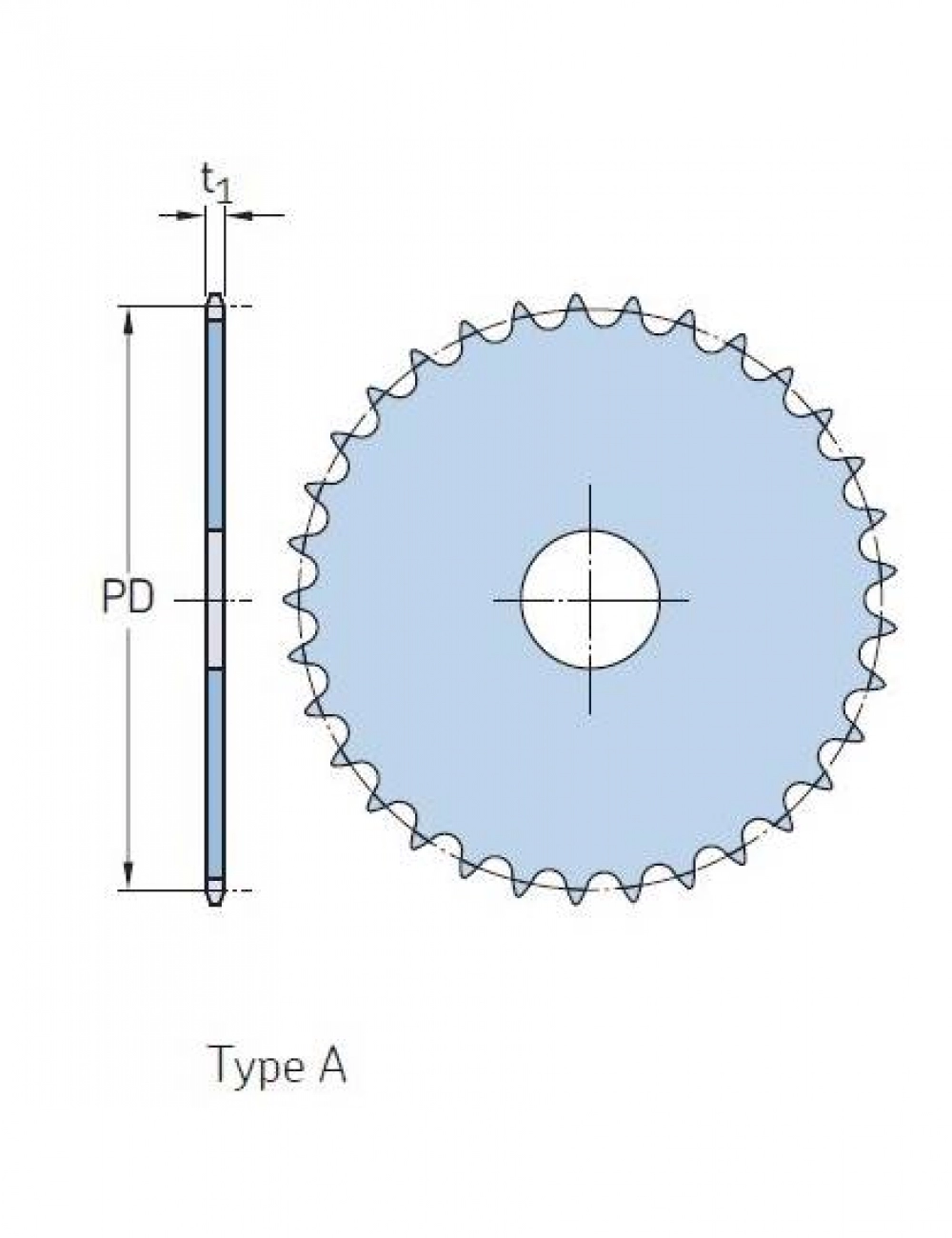

DIMENSIONS : Pitch diameter = 66.37 mm , Bore stock. = 12 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 74.27 mm , Bore stock. = 12 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 82.19 mm , Bore stock. = 12 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter = 90.14mm , Bore stock. = 16 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 98.14 mm , Bore stock. = 16 mm
No.Teeth =13
DIMENSIONS : Pitch diameter = 106.12 mm , Bore stock. = 16 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 114.15 mm , Bore stock. = 16 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 122.17 mm , Bore stock. = 16 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 130.20 mm , Bore stock. = 20mm
No.Teeth =17
DIMENSIONS : Pitch diameter = 138.22 mm , Bore stock. = 20 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 146.28 mm , Bore stock. = 20 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 154.33 mm , Bore stock. = 20 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 162.38 mm , Bore stock. = 20 mm
No.Teeth = 21
DIMENSIONS : Pitch diameter = 170.43 mm , Bore stock. = 20 mm
No.Teeth =22
DIMENSIONS : Pitch diameter = 178.48 mm , Bore stock. = 20 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 186.53 mm , Bore stock. = 20 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 194.59 mm , Bore stock. = 20 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 202.66 mm , Bore stock. = 20 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 210.72 mm , Bore stock. = 20 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 218.79 mm , Bore stock. = 20 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 226.85 mm , Bore stock. = 20 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 234.92mm , Bore stock. = 20mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 243.00 mm , Bore stock. = 20 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 251.08 mm , Bore stock. = 25 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 259.13 mm , Bore stock. = 25 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 267.21 mm , Bore stock. = 25 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 275.28 mm , Bore stock. = 25 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 283.36mm , Bore stock. = 25 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter =291.44 mm , Bore stock. = 25 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 299.51 mm , Bore stock. = 25 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter =307.59 mm , Bore stock. = 25 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 315.67 mm , Bore stock. = 25 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 323.75 mm , Bore stock. = 25 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 331.82 mm , Bore stock. = 25 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 339.90 mm , Bore stock. = 25 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 347.98 mm , Bore stock. = 25 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 356.06 mm , Bore stock. = 25 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter =364.13 mm , Bore stock. = 25 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 372.21 mm , Bore stock. = 25 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 380.29 mm , Bore stock. = 25 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 388.36 mm , Bore stock. = 25 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 404.52 mm , Bore stock. = 25 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 436.85 mm , Bore stock. = 30 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 461.07 mm , Bore stock. = 30 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter =485.32 mm , Bore stock. = 30 mm
No.Teeth = 65
DIMENSIONS : Pitch diameter = 525.73 mm , Bore stock. = 30 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter = 566.14 mm , Bore stock. = 30 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 582.32 mm , Bore stock. = 30 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 614.65 mm , Bore stock. =30 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 646.96 mm , Bore stock. = 30 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 679.30 mm , Bore stock. = 30 mm
No.Teeth = 90
DIMENSIONS : Pitch diameter = 727.81 mm , Bore stock. = 30 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 768.22 mm , Bore stock. = 30 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 766.31 mm , Bore stock. = 30 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 921 mm , Bore stock. = 30 mm
