ISO PHS 12B - 1BXXX

ชื่อรุ่น :

ISO PHS 12B - 1BXXX

แบรนด์

SKF

รายละเอียด :

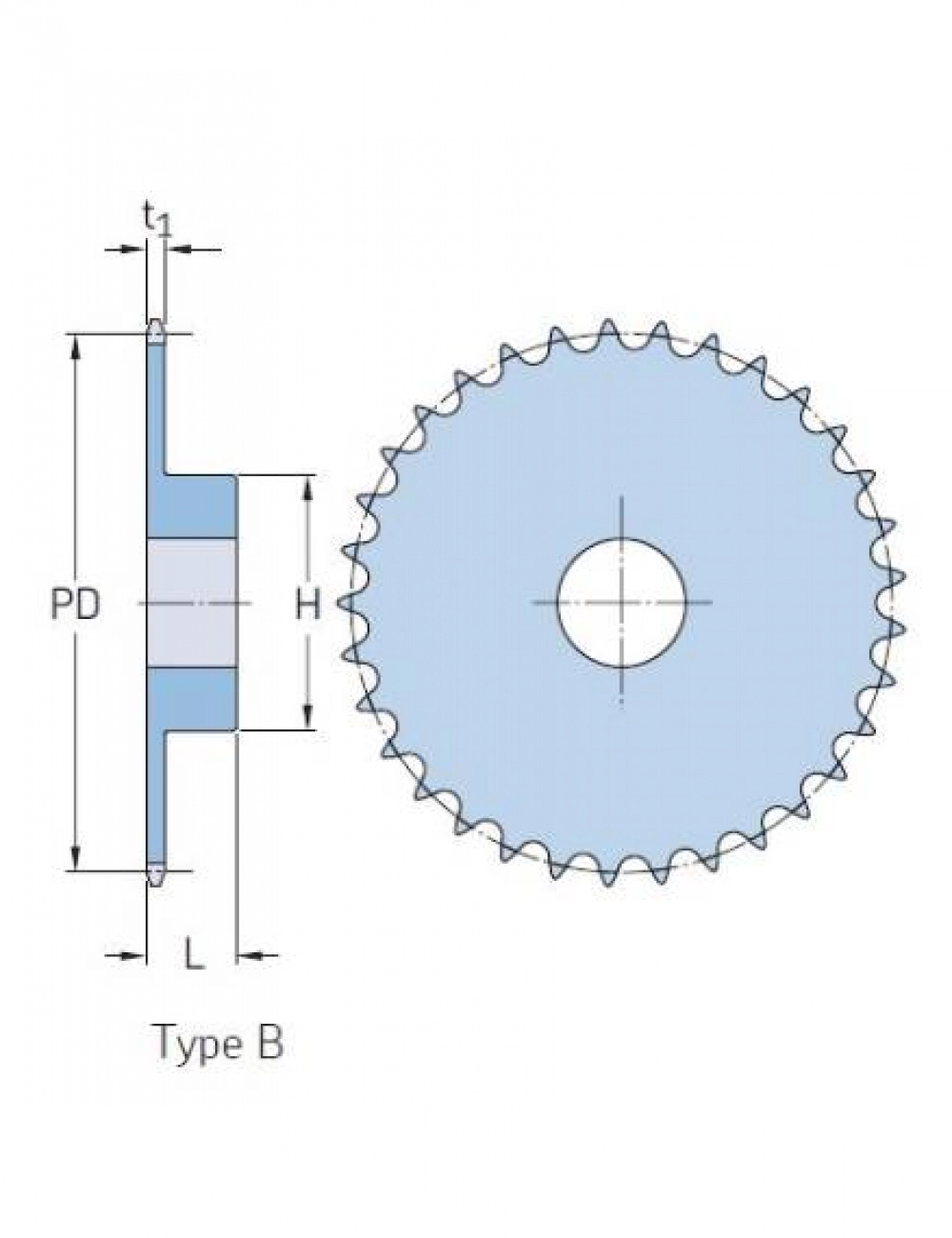

  • เฟืองโซ่ชั้นเดียว Pitch = 19.05 mm
  • มีดุมยื่น 1 ข้าง
ติดต่อเราได้ที่ :

Model

Model description

Price

Model
PHS-12B-1B8
Model description

No.Teeth =8
DIMENSIONS : Pitch diameter = 49.78mm , Bore min. = 12 mm , Bore max. = 16 mm , H = 31mm , L = 30 mm

Price
Call
Model
PHS-12B-1B9
Model description

No.Teeth = 9
DIMENSIONS : Pitch diameter = 55.70 mm , Bore min. = 12 mm , Bore max. =20 mm , H = 37 mm , L = 30 mm

Price
Call
Model
PHS-12B-1B10
Model description

No.Teeth = 10
DIMENSIONS : Pitch diameter = 61.64 mm , Bore min. = 12 mm , Bore max. = 23 mm , H = 42 mm , L = 30 mm

Price
Call
Model
PHS-12B-1B11
Model description

No.Teeth = 11
DIMENSIONS : Pitch diameter = 67.61 mm , Bore min. = 14 mm , Bore max. = 28 mm , H = 46 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B12
Model description

No.Teeth = 12
DIMENSIONS : Pitch diameter = 73.61 mm , Bore min. =14 mm , Bore max. = 32 mm , H = 52 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B13
Model description

No.Teeth = 13
DIMENSIONS : Pitch diameter = 79.59 mm , Bore min. = 14 mm , Bore max. = 36 mm , H = 58 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B14
Model description

No.Teeth = 14
DIMENSIONS : Pitch diameter = 85.61 mm , Bore min. = 14 mm , Bore max. = 40 mm , H = 64 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B15
Model description

No.Teeth = 15
DIMENSIONS : Pitch diameter = 91.63 mm , Bore min. = 14 mm , Bore max. = 44 mm , H = 70 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B16
Model description

No.Teeth = 16
DIMENSIONS : Pitch diameter = 97.65 mm , Bore min. = 16 mm , Bore max. = 48 mm , H = 75 mm , L =35 mm

Price
Call
Model
PHS-12B-1B17
Model description

No.Teeth = 17
DIMENSIONS : Pitch diameter = 103.67 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 80 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B18
Model description

No.Teeth = 18
DIMENSIONS : Pitch diameter = 109.71mm , Bore min. = 16mm , Bore max. = 55 mm , H = 80 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B19
Model description

No.Teeth = 19
DIMENSIONS : Pitch diameter = 115.75 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 80 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B20
Model description

No.Teeth = 20
DIMENSIONS : Pitch diameter = 121.78 mm , Bore min. = 16 mm , Bore max. = 55 mm , H = 80 mm , L = 35 mm

Price
Call
Model
PHS-12B-1B21
Model description

No.Teeth = 21
DIMENSIONS : Pitch diameter = 127.82 mm , Bore min. = 20 mm , Bore max. = 55 mm , H = 90 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B22
Model description

No.Teeth = 22
DIMENSIONS : Pitch diameter = 133.86 mm , Bore min. = 20 mm , Bore max. = 55 mm , H = 90 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B23
Model description

No.Teeth = 23
DIMENSIONS : Pitch diameter =139.90 mm , Bore min. = 20mm , Bore max. = 55 mm , H = 90 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B24
Model description

No.Teeth = 24
DIMENSIONS : Pitch diameter = 145.94 mm , Bore min. = 20 mm , Bore max. = 55 mm , H = 90 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B25
Model description

No.Teeth = 25
DIMENSIONS : Pitch diameter = 152.00 mm , Bore min. = 20 mm , Bore max. = 55 mm , H = 90 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B26
Model description

No.Teeth = 26
DIMENSIONS : Pitch diameter = 158.04mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B27
Model description

No.Teeth = 27
DIMENSIONS : Pitch diameter = 164.09 mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B28
Model description

No.Teeth = 28
DIMENSIONS : Pitch diameter =170.13 mm , Bore min. = 20 mm , Bore max. = 58 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B29
Model description

No.Teeth = 29
DIMENSIONS : Pitch diameter = 176.19 mm , Bore min. =20 mm , Bore max. = 60 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B30
Model description

No.Teeth = 30
DIMENSIONS : Pitch diameter = 182.25 mm , Bore min. = 20 mm , Bore max. = 60 mm , H =95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B31
Model description

No.Teeth =31
DIMENSIONS : Pitch diameter = 188.31 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B32
Model description

No.Teeth = 32
DIMENSIONS : Pitch diameter = 194.36 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B33
Model description

No.Teeth = 33
DIMENSIONS : Pitch diameter = 200.40 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B34
Model description

No.Teeth = 34
DIMENSIONS : Pitch diameter =206.46 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B35
Model description

No.Teeth = 35
DIMENSIONS : Pitch diameter = 212.52 mm , Bore min. = 20 mm , Bore max. = 64 mm , H = 95 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B36
Model description

No.Teeth = 36
DIMENSIONS : Pitch diameter = 218.58 mm , Bore min. = 20 mm , Bore max. = 70 mm , H =100 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B37
Model description

No.Teeth = 37
DIMENSIONS : Pitch diameter = 224.64 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B38
Model description

No.Teeth = 38
DIMENSIONS : Pitch diameter = 230.69 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B39
Model description

No.Teeth = 39
DIMENSIONS : Pitch diameter = 236.75 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B40
Model description

No.Teeth = 40
DIMENSIONS : Pitch diameter = 242.81 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 100 mm , L = 40 mm

Price
Call
Model
PHS-12B-1B41
Model description

No.Teeth = 41
DIMENSIONS : Pitch diameter = 248.87 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B42
Model description

No.Teeth = 42
DIMENSIONS : Pitch diameter = 254.93 mm , Bore min. = 20 mm , Bore max. = 70mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B43
Model description

No.Teeth = 43
DIMENSIONS : Pitch diameter = 260.98 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B44
Model description

No.Teeth = 44
DIMENSIONS : Pitch diameter = 267.04 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B45
Model description

No.Teeth = 45
DIMENSIONS : Pitch diameter = 273.10 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B46
Model description

No.Teeth = 46
DIMENSIONS : Pitch diameter = 279.16 mm , Bore min. = 20 mm , Bore max. = 70 mm , H =110 mm , L = 56mm

Price
Call
Model
PHS-12B-1B47
Model description

No.Teeth = 47
DIMENSIONS : Pitch diameter = 285.21 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B48
Model description

No.Teeth = 48
DIMENSIONS : Pitch diameter = 291.27 mm , Bore min. = 20 mm , Bore max. = 70 mm , H =110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B49
Model description

No.Teeth = 49
DIMENSIONS : Pitch diameter = 291.33 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B50
Model description

No.Teeth = 50
DIMENSIONS : Pitch diameter = 303.39 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L =56 mm

Price
Call
Model
PHS-12B-1B54
Model description

No.Teeth = 54
DIMENSIONS : Pitch diameter = 327.64 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B57
Model description

No.Teeth = 57
DIMENSIONS : Pitch diameter = 345.81 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B60
Model description

No.Teeth = 60
DIMENSIONS : Pitch diameter = 363.99 mm , Bore min. = 20 mm , Bore max. =70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B65
Model description

No.Teeth = 65
DIMENSIONS : Pitch diameter = 394.29 mm , Bore min. = 20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B68
Model description

No.Teeth = 68
DIMENSIONS : Pitch diameter = 412.49 mm , Bore min. = 20 mm , Bore max. =70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B70
Model description

No.Teeth = 70
DIMENSIONS : Pitch diameter = 424.60 mm , Bore min. =20 mm , Bore max. = 70 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B72
Model description

No.Teeth = 72
DIMENSIONS : Pitch diameter = 436.74 mm , Bore min. = 20mm , Bore max. = 80 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B76
Model description

No.Teeth = 76
DIMENSIONS : Pitch diameter = 460.99 mm , Bore min. = 20 mm , Bore max. = 60 mm , H = 110 mm , L = 56mm

Price
Call
Model
PHS-12B-1B80
Model description

No.Teeth = 80
DIMENSIONS : Pitch diameter = 485.22 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 110 mm , L =56 mm

Price
Call
Model
PHS-12B-1B84
Model description

No.Teeth = 84
DIMENSIONS : Pitch diameter = 509.48 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B90
Model description

No.Teeth = 90
DIMENSIONS : Pitch diameter = 545.85 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B92
Model description

No.Teeth = 92
DIMENSIONS : Pitch diameter = 557.98 mm , Bore min. = 20 mm , Bore max. = 80 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B95
Model description

No.Teeth = 95
DIMENSIONS : Pitch diameter = 576.17 mm , Bore min. = 20 mm , Bore max. = 92 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B96
Model description

No.Teeth = 96
DIMENSIONS : Pitch diameter = 582.23 mm , Bore min. = 20 mm , Bore max. = 92 mm , H = 110 mm , L = 56 mm

Price
Call
Model
PHS-12B-1B114
Model description

No.Teeth = 114
DIMENSIONS : Pitch diameter = 691.36 mm , Bore min. = 20 mm , Bore max. = 92 mm , H = 110 mm , L = 56 mm

Price
Call
