PRODUCT
![]()
ชื่อรุ่น :
ISO PHS 08B - 1AXXX
แบรนด์
SKF
รายละเอียด :

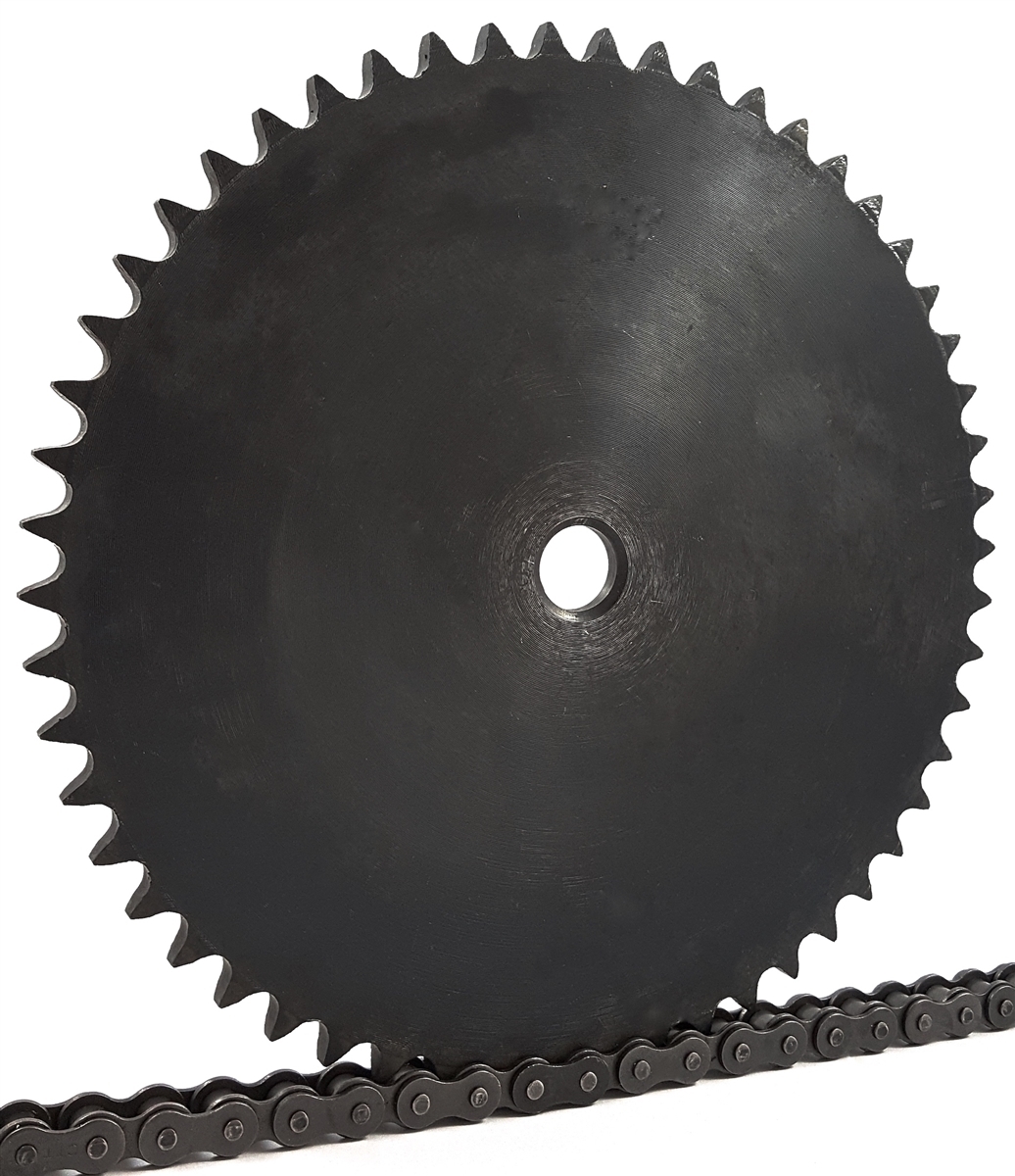

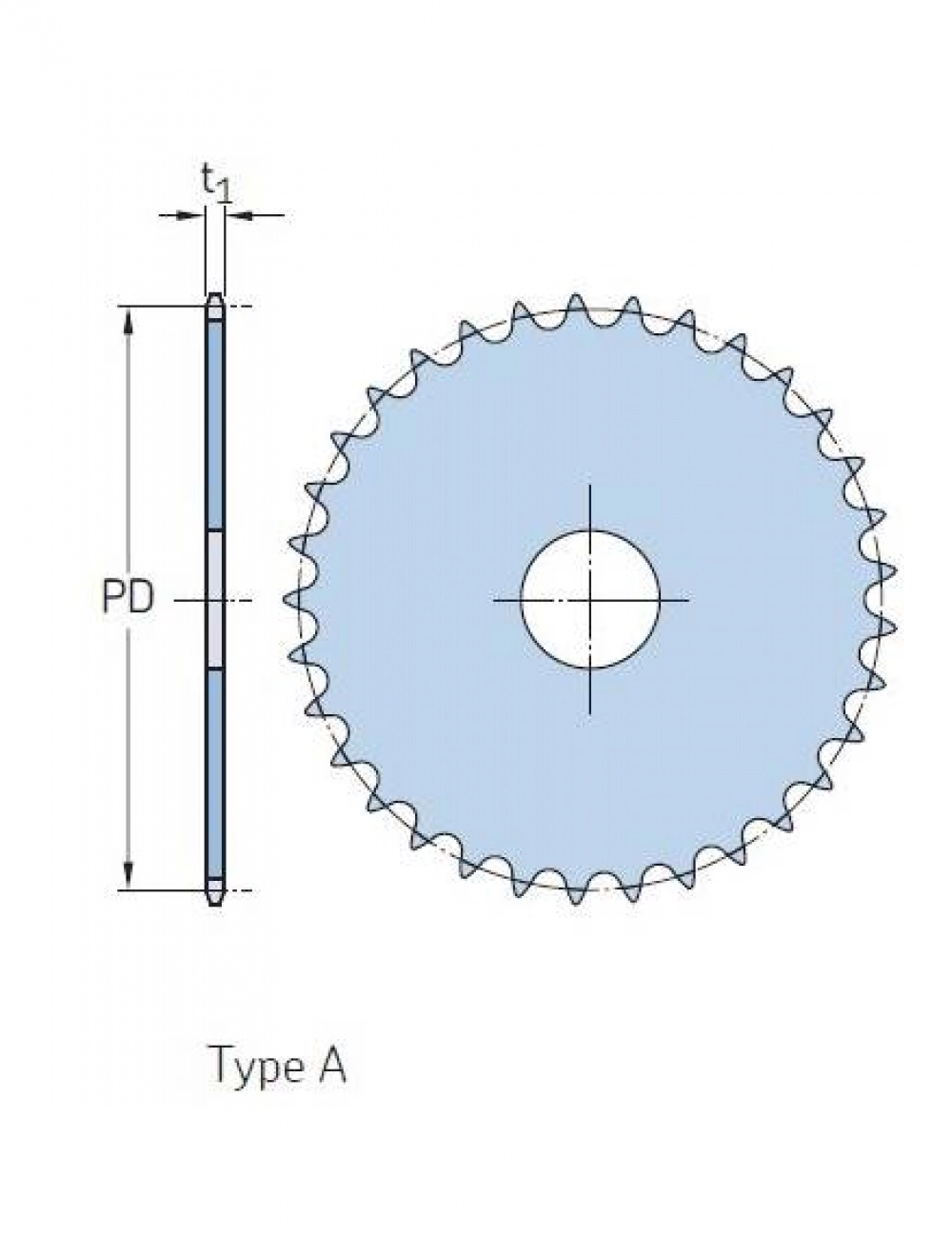

- เฟืองโซ่ชั้นเดียว Pitch = 12.70 mm
- ไม่มีดุมยื่น
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8
DIMENSIONS : Pitch diameter = 33.18 mm , Bore stock. = 8 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 37.18 mm , Bore stock. = 8 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 41.10 mm , Bore stock. = 8 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter = 45.07 mm , Bore stock. = 10 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 49.07 mm , Bore stock. = 10 mm
No.Teeth = 13
DIMENSIONS : Pitch diameter = 53.06 mm , Bore stock. = 10 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 57.07 mm , Bore stock. = 10 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 61.09 mm , Bore stock. = 10 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 65.10 mm , Bore stock. = 10 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 69.11 mm , Bore stock. = 10 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 73.14 mm , Bore stock. = 10 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 77.16 mm , Bore stock. = 10 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 81.19 mm , Bore stock. = 10 mm
No.Teeth = 21
DIMENSIONS : Pitch diameter = 85.22 mm , Bore stock. = 12 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 89.24 mm , Bore stock. = 12 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 93.24 mm , Bore stock. = 12 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 97.29 mm , Bore stock. = 12 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 101.33 mm , Bore stock. = 12 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 105.36 mm , Bore stock. = 16 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 109.40 mm , Bore stock. = 16 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 113.42 mm , Bore stock. = 16 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 117.46 mm , Bore stock. = 16 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 121.50 mm , Bore stock. = 16 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 125.54 mm , Bore stock. = 16 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 129.56 mm , Bore stock. = 16 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 133.60 mm , Bore stock. = 16 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 137.64 mm , Bore stock. = 16 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 141.68 mm , Bore stock. = 16 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter = 145.72 mm , Bore stock. = 16 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 149.76 mm , Bore stock. = 16 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 153.80 mm , Bore stock. = 16 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 157.83 mm , Bore stock. = 16 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 161.87 mm , Bore stock. = 16 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 165.91 mm , Bore stock. = 20 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 169.95 mm , Bore stock. = 20 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 173.99 mm , Bore stock. = 20 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 178.03 mm , Bore stock. = 20 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter = 182.07 mm , Bore stock. = 20 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 186.10 mm , Bore stock. = 20 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 190.14 mm , Bore stock. = 20 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 194.18 mm , Bore stock. = 20 mm
No.Teeth = 50
DIMENSIONS : Pitch diameter = 208.30 mm , Bore stock. = 20 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 218.43 mm , Bore stock. = 20 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 230.54 mm , Bore stock. = 20 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 242.66 mm , Bore stock. = 20 mm
No.Teeth = 64
DIMENSIONS : Pitch diameter = 258.82 mm , Bore stock. = 25 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter = 283.07 mm , Bore stock. = 25 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 291.16 mm , Bore stock. = 25 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 307.33 mm , Bore stock. = 25 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 323.48 mm , Bore stock. = 25 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 339.65 mm , Bore stock. = 25 mm
No.Teeth = 85
DIMENSIONS : Pitch diameter = 343.69 mm , Bore stock. = 25 mm
No.Teeth = 92
DIMENSIONS : Pitch diameter = 371.99 mm , Bore stock. = 25 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 384.11 mm , Bore stock. = 25 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 388.15 mm , Bore stock. = 25 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 460.90 mm , Bore stock. = 25 mm
