PRODUCT
![]()
ชื่อรุ่น :
ISO PHS 05B - 1AXXX
แบรนด์
SKF
รายละเอียด :

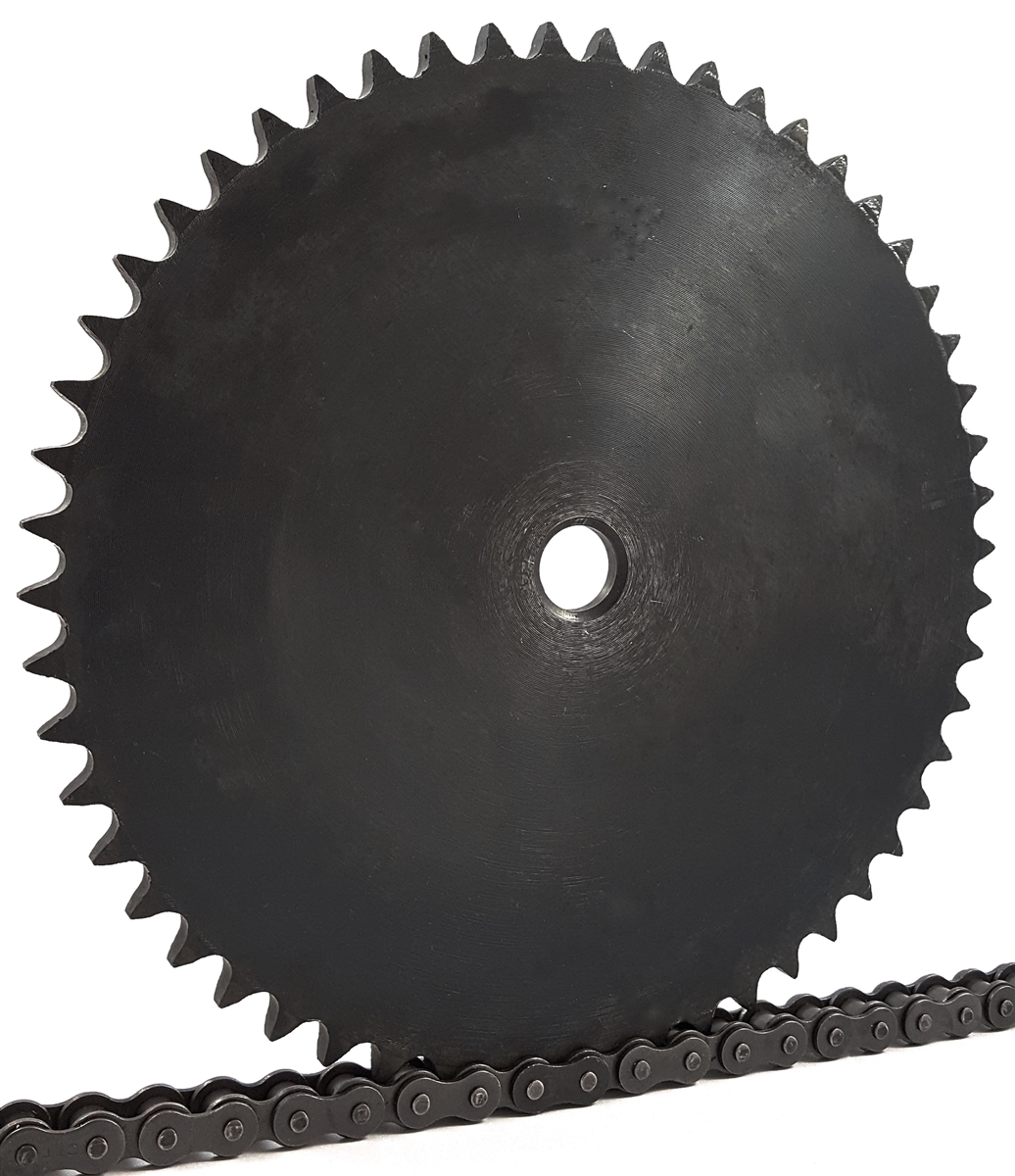

- เฟืองโซ่ชั้นเดียว Pitch = 8 mm
- ไม่มีดุมยื่น
ดูรูปสินค้าเพิ่มเติม
Model
Model description
Price
No.Teeth = 8

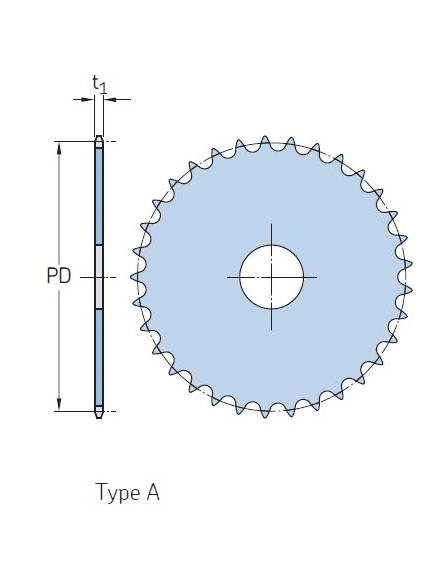

DIMENSIONS : Pitch diameter = 20.90 mm , Bore stock. = 6 mm
No.Teeth = 9
DIMENSIONS : Pitch diameter = 23.39 mm , Bore stock. = 6 mm
No.Teeth = 10
DIMENSIONS : Pitch diameter = 25.89 mm , Bore stock. = 8 mm
No.Teeth = 11
DIMENSIONS : Pitch diameter = 28.39 mm , Bore stock. = 8 mm
No.Teeth = 12
DIMENSIONS : Pitch diameter = 30.91 mm , Bore stock. = 8 mm
No.Teeth = 13
DIMENSIONS : Pitch diameter = 33.42 mm , Bore stock. = 8 mm
No.Teeth = 14
DIMENSIONS : Pitch diameter = 35.95 mm , Bore stock. = 8 mm
No.Teeth = 15
DIMENSIONS : Pitch diameter = 38.48 mm , Bore stock. =8 mm
No.Teeth = 16
DIMENSIONS : Pitch diameter = 41.01 mm , Bore stock. = 8 mm
No.Teeth = 17
DIMENSIONS : Pitch diameter = 43.53 mm , Bore stock. = 8 mm
No.Teeth = 18
DIMENSIONS : Pitch diameter = 46.07 mm , Bore stock. = 8 mm
No.Teeth = 19
DIMENSIONS : Pitch diameter = 48.61 mm , Bore stock. = 8 mm
No.Teeth = 20
DIMENSIONS : Pitch diameter = 51.14 mm , Bore stock. = 8 mm
No.Teeth = 21
DIMENSIONS : Pitch diameter =53.67 mm , Bore stock. = 8 mm
No.Teeth = 22
DIMENSIONS : Pitch diameter = 56.21 mm , Bore stock. = 8 mm
No.Teeth = 23
DIMENSIONS : Pitch diameter = 58.75 mm , Bore stock. = 8 mm
No.Teeth = 24
DIMENSIONS : Pitch diameter = 61.29 mm , Bore stock. = 8 mm
No.Teeth = 25
DIMENSIONS : Pitch diameter = 63.83 mm , Bore stock. = 8 mm
No.Teeth = 26
DIMENSIONS : Pitch diameter = 66.37 mm , Bore stock. = 10 mm
No.Teeth = 27
DIMENSIONS : Pitch diameter = 68.91 mm , Bore stock. = 10 mm
No.Teeth = 28
DIMENSIONS : Pitch diameter = 71.45 mm , Bore stock. = 10 mm
No.Teeth = 29
DIMENSIONS : Pitch diameter = 73.99 mm , Bore stock. = 10 mm
No.Teeth = 30
DIMENSIONS : Pitch diameter = 76.53 mm , Bore stock. = 10 mm
No.Teeth = 31
DIMENSIONS : Pitch diameter = 79.08 mm , Bore stock. = 10 mm
No.Teeth = 32
DIMENSIONS : Pitch diameter = 81.61 mm , Bore stock. = 10 mm
No.Teeth = 33
DIMENSIONS : Pitch diameter = 84.16 mm , Bore stock. = 10 mm
No.Teeth = 34
DIMENSIONS : Pitch diameter = 86.70 mm , Bore stock. = 10 mm
No.Teeth = 35
DIMENSIONS : Pitch diameter = 89.24 mm , Bore stock. = 10 mm
No.Teeth = 36
DIMENSIONS : Pitch diameter = 91.79 mm , Bore stock. = 10 mm
No.Teeth = 37
DIMENSIONS : Pitch diameter = 94.33 mm , Bore stock. = 10 mm
No.Teeth = 38
DIMENSIONS : Pitch diameter = 96.88 mm , Bore stock. = 10 mm
No.Teeth = 39
DIMENSIONS : Pitch diameter = 99.42 mm , Bore stock. = 10 mm
No.Teeth = 40
DIMENSIONS : Pitch diameter = 101.97 mm , Bore stock. = 10 mm
No.Teeth = 41
DIMENSIONS : Pitch diameter = 104.51 mm , Bore stock. = 12 mm
No.Teeth = 42
DIMENSIONS : Pitch diameter = 107.05 mm , Bore stock. = 12 mm
No.Teeth = 43
DIMENSIONS : Pitch diameter = 109.60 mm , Bore stock. = 12 mm
No.Teeth = 44
DIMENSIONS : Pitch diameter = 112.14 mm , Bore stock. = 12 mm
No.Teeth = 45
DIMENSIONS : Pitch diameter = 114.69 mm , Bore stock. = 12 mm
No.Teeth = 46
DIMENSIONS : Pitch diameter = 117.23 mm , Bore stock. = 12 mm
No.Teeth = 47
DIMENSIONS : Pitch diameter = 119.77 mm , Bore stock. = 12 mm
No.Teeth = 48
DIMENSIONS : Pitch diameter = 122.32 mm , Bore stock. = 12 mm
No.Teeth = 54
DIMENSIONS : Pitch diameter = 137.59 mm , Bore stock. = 14 mm
No.Teeth = 57
DIMENSIONS : Pitch diameter = 145.22 mm , Bore stock. = 14 mm
No.Teeth = 60
DIMENSIONS : Pitch diameter = 152.85 mm , Bore stock. = 14 mm
No.Teeth = 64
DIMENSIONS : Pitch diameter = 163.04 mm , Bore stock. = 16 mm
No.Teeth = 70
DIMENSIONS : Pitch diameter = 178.31 mm , Bore stock. = 16 mm
No.Teeth = 72
DIMENSIONS : Pitch diameter = 183.41 mm , Bore stock. = 20 mm
No.Teeth = 76
DIMENSIONS : Pitch diameter = 193.59 mm , Bore stock. = 20 mm
No.Teeth = 80
DIMENSIONS : Pitch diameter = 203.77 mm , Bore stock. = 20 mm
No.Teeth = 84
DIMENSIONS : Pitch diameter = 213.95 mm , Bore stock. = 20 mm
No.Teeth = 90
DIMENSIONS : Pitch diameter = 229.23 mm , Bore stock. = 20 mm
No.Teeth = 95
DIMENSIONS : Pitch diameter = 241.96 mm , Bore stock. = 20 mm
No.Teeth = 96
DIMENSIONS : Pitch diameter = 244.50 mm , Bore stock. = 20 mm
No.Teeth = 114
DIMENSIONS : Pitch diameter = 290.33 mm , Bore stock. = 20 mm
