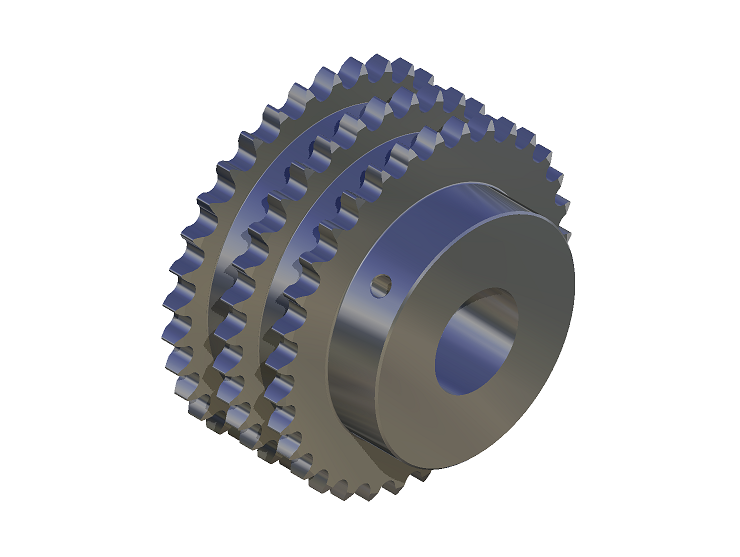

ISO PHS 20B - 3BXX

No.Teeth = 10

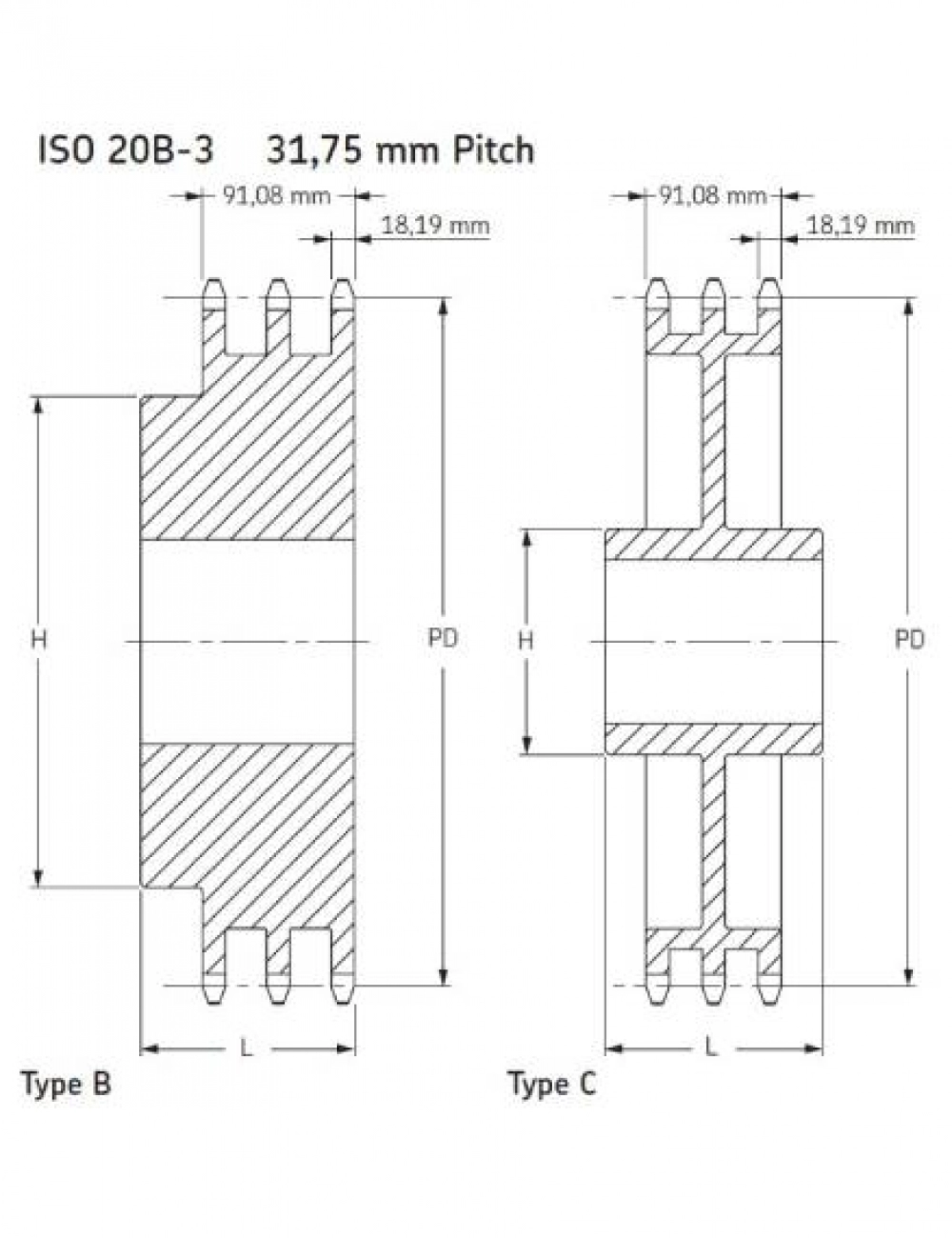

DIMENSIONS :Pitch diameter = 102.75 mm , Type = B , Bore min. = 20 mm , Bore max. = 47 mm ,H = 70 mm , L = 110 mm

No.Teeth = 11
DIMENSIONS :Pitch diameter = 112.70 mm , Type = B , Bore min. = 20 mm , Bore max. = 52 mm ,H = 80 mm , L = 115 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 122.67 mm , Type = B , Bore min. = 20 mm , Bore max. = 60 mm ,H =90 mm , L = 115 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 132.67 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm ,H = 100 mm , L =115 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 142.68 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm ,H = 110 mm , L = 115 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 152.71 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 162.75 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 172.79 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 182.84 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 192.90 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

0No.Teeth = 20
DIMENSIONS :Pitch diameter = 202.96 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 115 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 213.03 mm , Type = B , Bore min. = 25 mm , Bore max. = 92 mm ,H = 140 mm , L = 115 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 223.10 mm , Type = B , Bore min. = 25 mm , Bore max. = 92 mm ,H = 140 mm , L = 115 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 233.17 mm , Type = B , Bore min. = 25 mm , Bore max. = 92 mm ,H = 140 mm , L = 115 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 243.25 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 140 mm , L = 115 mm

No.Teeth =25
DIMENSIONS :Pitch diameter = 253.32 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 140 mm , L = 115 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 263.41 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 150 mm , L = 115 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 273.49 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 150 mm , L = 115 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 283.57 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 150 mm , L = 115 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 303.75 mm , Type = B , Bore min. = 25 mm , Bore max. = 95 mm ,H = 150 mm , L = 115 mm

No.Teeth = 32
DIMENSIONS :Pitch diameter = 323.92 mm , Type = B , Bore min. = 30 mm , Bore max. = 95 mm ,H = 150 mm , L = 115 mm

No.Teeth = 35

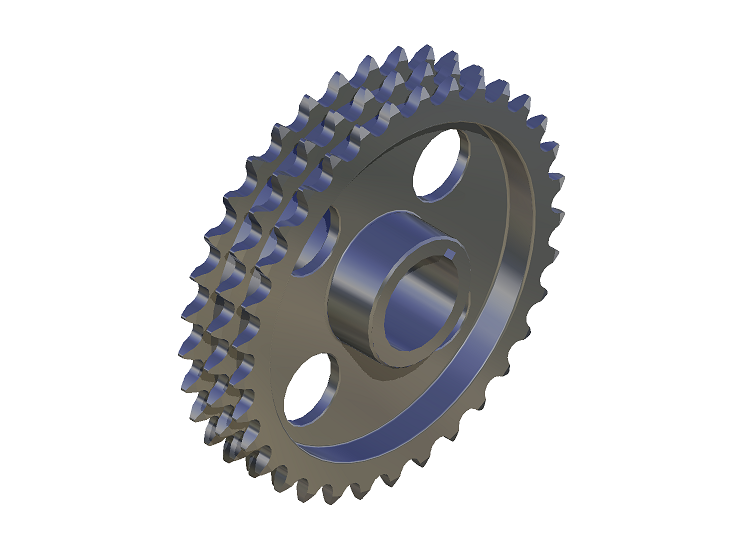

DIMENSIONS :Pitch diameter = 354.20 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 150 mm , L =115 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 364.29 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 150 mm , L = 115 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 384.48 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 150 mm , L = 115 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 424.86 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 160 mm , L = 110 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 455.15 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 160 mm , L = 110 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 576.35 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 180 mm , L = 123 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 606.66 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 180 mm , L = 123 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 687.48 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 200 mm , L = 123 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 768.30 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 200 mm , L = 123 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 808.71 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 200 mm , L = 123 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 960.28 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 200 mm , L = 123 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 1152.27 mm , Type = C , Bore min. = 30 mm , Bore max. = 102 mm ,H = 200 mm , L = 126 mm
