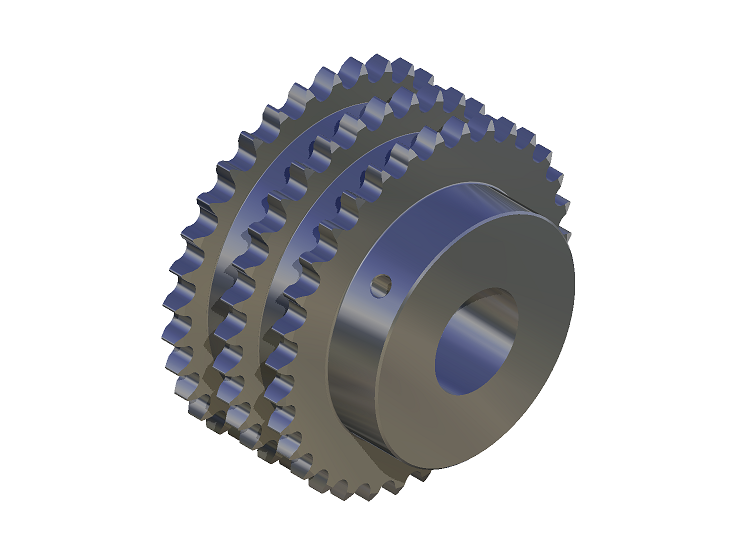

ISO PHS 16B - 3BXX

No.Teeth = 10

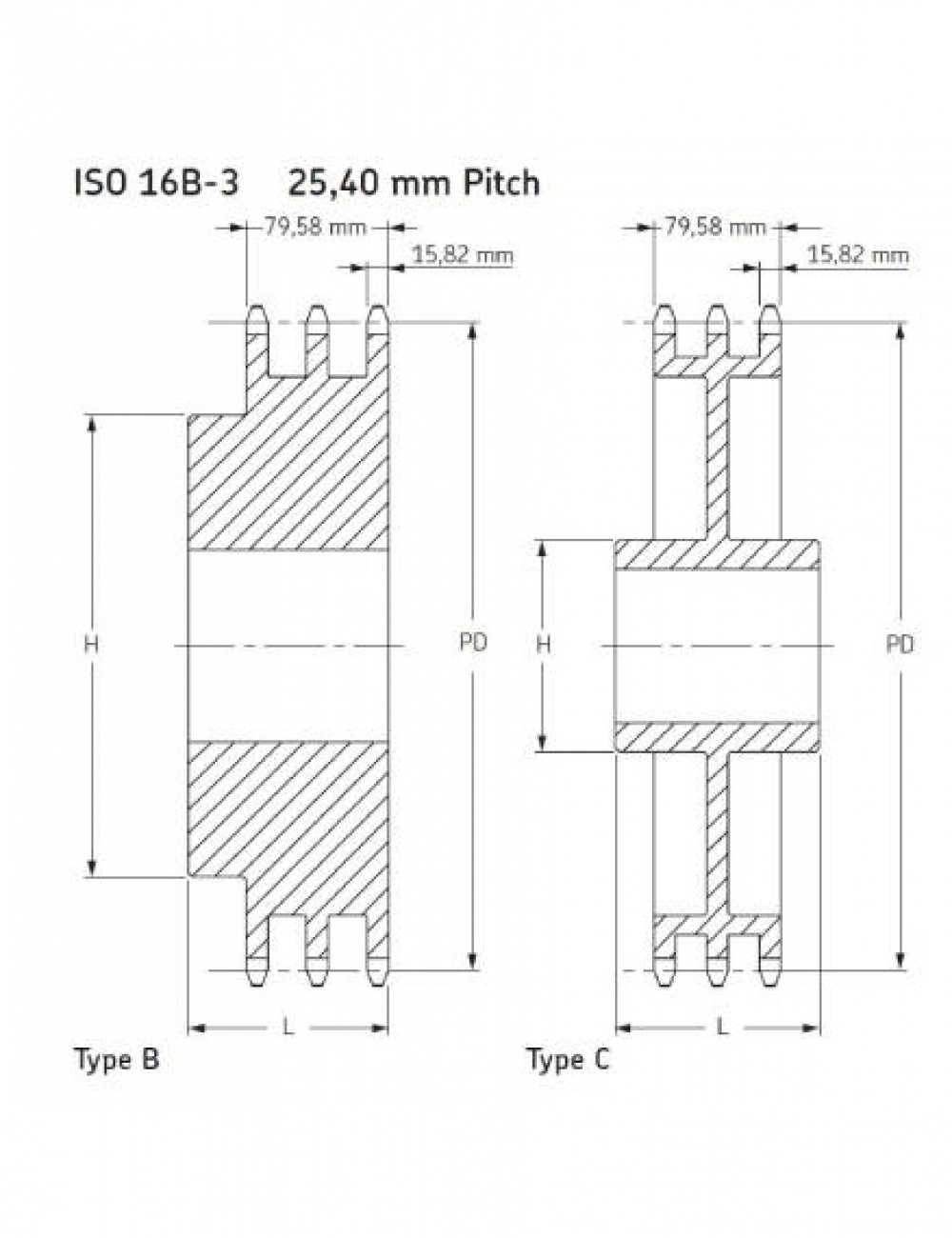

DIMENSIONS :Pitch diameter = 90.14 mm , Type = B , Bore min. = 20 mm , Bore max. = 42 mm ,H = 56 mm , L = 95 mm

No.Teeth = 11
DIMENSIONS :Pitch diameter = 90.14 mm , Type = B , Bore min. = 25 mm , Bore max. = 42 mm ,H = 64 mm , L = 100 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 98.14 mm , Type = B , Bore min. = 25 mm , Bore max. = 45 mm ,H = 72 mm , L = 100 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 106.12 mm , Type = B , Bore min. = 25 mm , Bore max. = 52 mm ,H = 80 mm , L = 100 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 114.15 mm , Type = B , Bore min. = 25 mm , Bore max. = 58 mm ,H = 88 mm , L = 100 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 122.17 mm , Type = B , Bore min. = 25 mm , Bore max. = 62 mm ,H = 96 mm , L = 100 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 130.20 mm , Type = B , Bore min. = 25 mm , Bore max. = 66 mm ,H = 104 mm , L = 100 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 138.22 mm , Type = B , Bore min. = 25 mm , Bore max. = 74 mm ,H = 112 mm , L = 100 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 146.28 mm , Type = B , Bore min. = 25 mm , Bore max. = 80 mm ,H = 120 mm , L = 100 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 154.33 mm , Type = B , Bore min. = 25 mm , Bore max. = 84 mm ,H = 128 mm , L = 100 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter =162.38 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 170.43 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 178.48 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 186.53 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 194.54 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 202.66 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 210.72 mm , Type = B , Bore min. = 30 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter = 218.79 mm , Type = B , Bore min. = 30 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 226.85 mm , Type = B , Bore min. = 30 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 234.92 mm , Type = B , Bore min. = 30 mm , Bore max. = 85 mm ,H = 130 mm , L = 100 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 243.00 mm , Type = B , Bore min. = 30 mm , Bore max. = 95 mm ,H = 136 mm , L = 100 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 283.36 mm , Type = B , Bore min. = 30 mm , Bore max. = 95 mm ,H = 140 mm , L = 100 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 291.44 mm , Type = B , Bore min. = 30 mm , Bore max. = 95 mm ,H = 140 mm , L = 100 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 307.59 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 140 mm , L = 100 mm

No.Teeth = 42
DIMENSIONS :Pitch diameter = 339.89 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 160 mm , L =100 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 364.13 mm , Type = C , Bore min. = 30 mm , Bore max. = 97 mm ,H = 160 mm , L = 100 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 461.07 mm , Type = C , Bore min. = 30 mm , Bore max. = 107 mm ,H = 180 mm , L = 110 mm

No.Teeth = 60
DIMENSIONS :Pitch diameter = 485.32 mm , Type = C , Bore min. = 30 mm , Bore max. = 107 mm ,H = 180 mm , L = 110 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 549.98 mm , Type = C , Bore min. = 30 mm , Bore max. = 107 mm ,H = 180 mm , L = 110 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 614.65 mm , Type = C , Bore min. = 30 mm , Bore max. = 107 mm ,H = 180 mm , L = 110 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 768.22 mm , Type = C , Bore min. = 30 mm , Bore max. = 114 mm ,H = 180 mm , L = 110 mm

No.Teeth = 114
DIMENSIONS :Pitch diameter = 921.81 mm , Type = C , Bore min. = 30 mm , Bore max. = 114 mm ,H = 180 mm , L = 110 mm
