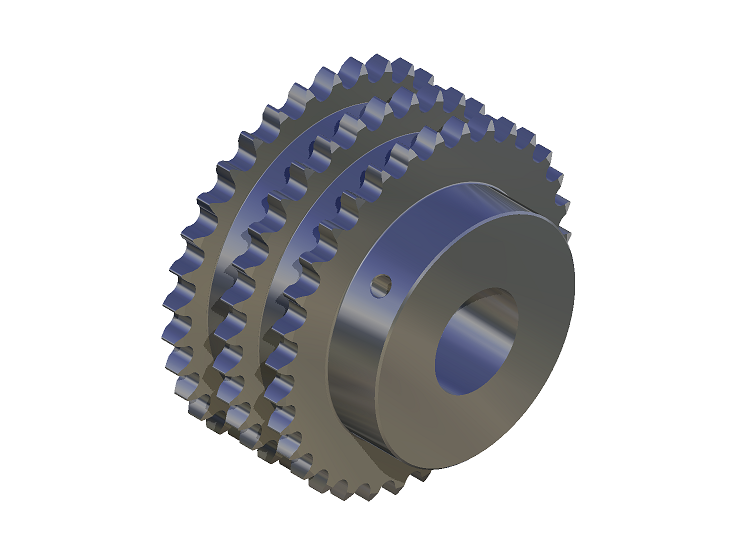

ISO PHS 12B - 3BXX

No.Teeth = 11

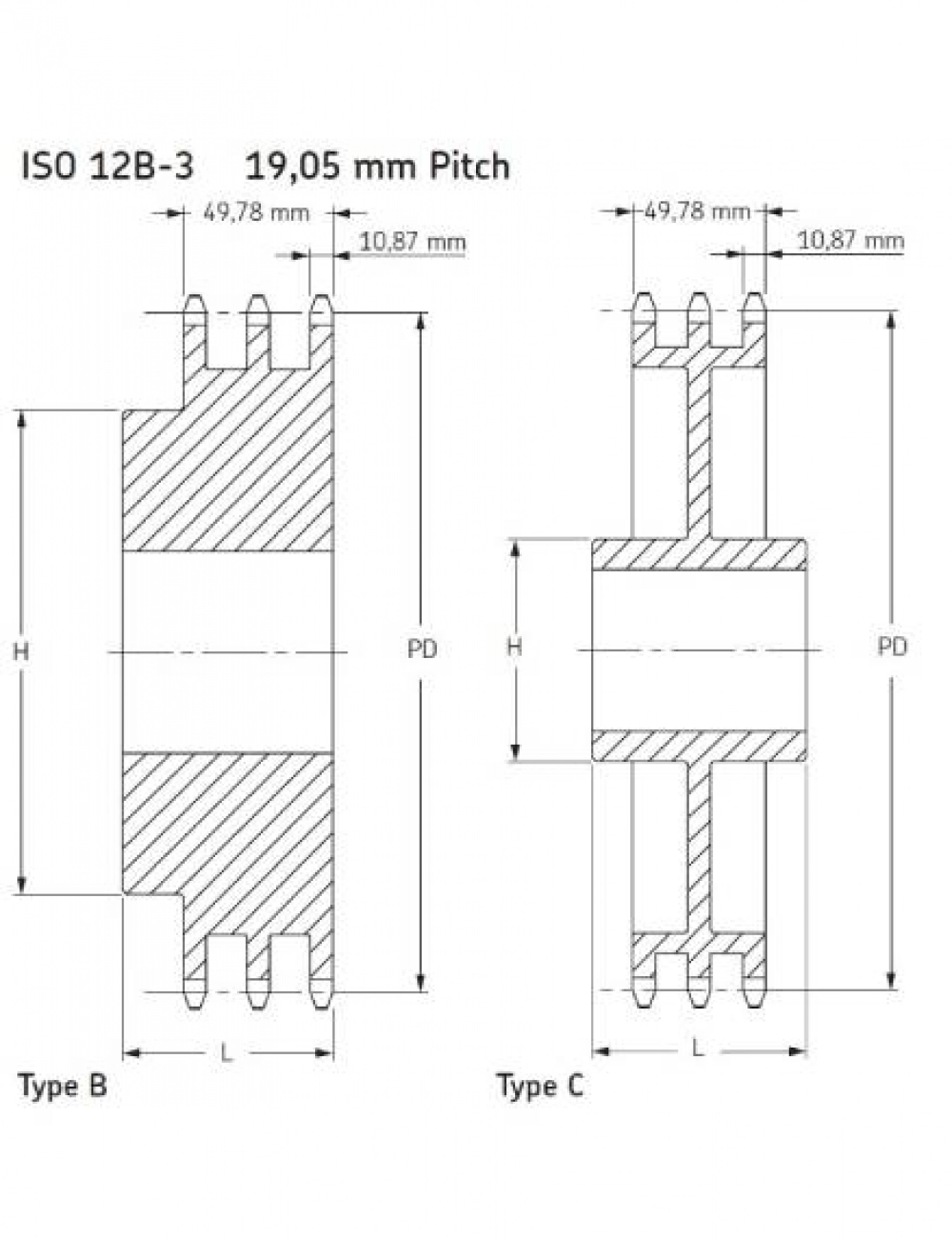

DIMENSIONS :Pitch diameter = 67.61 mm , Type = B , Bore min. = 20 mm , Bore max. = 32 mm , H = 47 mm , L = 70 mm

No.Teeth = 12
DIMENSIONS :Pitch diameter = 73.61 mm , Type = B , Bore min. = 20 mm , Bore max. = 36 mm , H = 53 mm , L = 70 mm

No.Teeth = 13
DIMENSIONS :Pitch diameter = 79.59 mm , Type = B , Bore min. = 20 mm , Bore max. = 38 mm , H = 59 mm , L = 70 mm

No.Teeth = 14
DIMENSIONS :Pitch diameter = 85.61 mm , Type = B , Bore min. = 20 mm , Bore max. = 42 mm , H = 65 mm , L = 70 mm

No.Teeth = 15
DIMENSIONS :Pitch diameter = 91.63 mm , Type = B , Bore min. = 20 mm , Bore max. = 45 mm , H = 71 mm , L = 70 mm

No.Teeth = 16
DIMENSIONS :Pitch diameter = 97.65 mm , Type = B , Bore min. = 20 mm , Bore max. = 51 mm , H = 77 mm , L = 70 mm

No.Teeth = 17
DIMENSIONS :Pitch diameter = 103.67 mm , Type = B , Bore min. = 20 mm , Bore max. = 54 mm , H = 83 mm , L = 70 mm

No.Teeth = 18
DIMENSIONS :Pitch diameter = 109.71 mm , Type = B , Bore min. = 20 mm , Bore max. = 60 mm , H = 89 mm , L = 70 mm

No.Teeth = 19
DIMENSIONS :Pitch diameter = 115.75 mm , Type = B , Bore min. = 20 mm , Bore max. = 62 mm , H = 95 mm , L = 70 mm

No.Teeth = 20
DIMENSIONS :Pitch diameter = 121.78 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm , H = 100 mm , L = 70 mm

No.Teeth = 21
DIMENSIONS :Pitch diameter = 127.82 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm , H = 100 mm , L = 70 mm

No.Teeth = 22
DIMENSIONS :Pitch diameter = 133.86 mm , Type = B , Bore min. = 20 mm , Bore max. = 64 mm , H = 100 mm , L = 70 mm

No.Teeth = 23
DIMENSIONS :Pitch diameter = 139.90 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm , H = 110 mm , L = 70 mm

No.Teeth = 24
DIMENSIONS :Pitch diameter = 145.94 mm , Type = B , Bore min. = 20 mm , Bore max. = 73 mm , H = 110 mm , L = 70 mm

No.Teeth = 25
DIMENSIONS :Pitch diameter = 152.00 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 26
DIMENSIONS :Pitch diameter = 158.04 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 27
DIMENSIONS :Pitch diameter =164.09 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 28
DIMENSIONS :Pitch diameter = 170.13 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 29
DIMENSIONS :Pitch diameter = 176.19 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 30
DIMENSIONS :Pitch diameter = 182.25 mm , Type = B , Bore min. = 20 mm , Bore max. = 80 mm , H = 120 mm , L = 70 mm

No.Teeth = 35
DIMENSIONS :Pitch diameter = 212.52 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 36
DIMENSIONS :Pitch diameter = 218.58 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 38
DIMENSIONS :Pitch diameter = 230.69 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm , H = 130 mm , L = 70 mm

No.Teeth = 45
DIMENSIONS :Pitch diameter = 273.10 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm , H = 140 mm , L = 70 mm

No.Teeth = 48
DIMENSIONS :Pitch diameter = 291.27 mm , Type = B , Bore min. = 25 mm , Bore max. = 85 mm , H = 140 mm , L = 70 mm

No.Teeth = 57
DIMENSIONS :Pitch diameter = 345.81 mm , Type = B , Bore min. = 25 mm , Bore max. = 82 mm , H = 140 mm , L = 70 mm

No.Teeth = 60

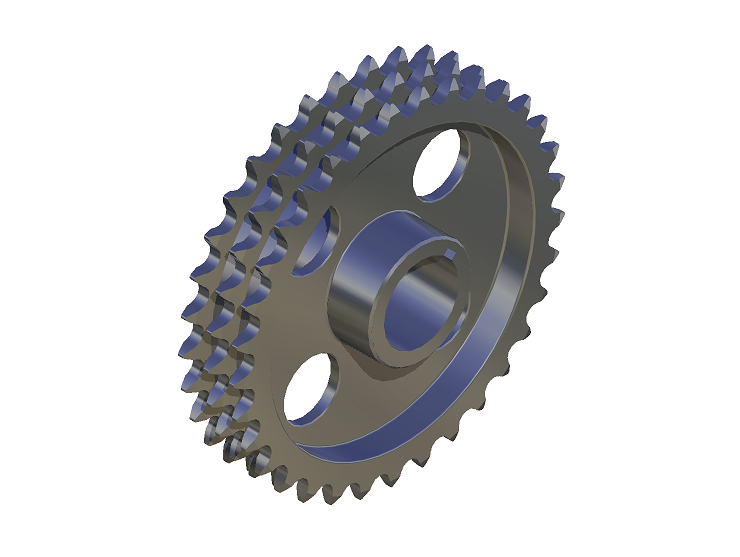

DIMENSIONS :Pitch diameter = 363.99 mm , Type = C , Bore min. = 25 mm , Bore max. = 82 mm , H = 140 mm , L = 70 mm

No.Teeth = 68
DIMENSIONS :Pitch diameter = 612.49 mm , Type = C , Bore min. = 25 mm , Bore max. = 82 mm , H = 140 mm , L = 70 mm

No.Teeth = 76
DIMENSIONS :Pitch diameter = 460.99 mm , Type = C , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 80
DIMENSIONS :Pitch diameter = 485.22 mm , Type = C , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm

No.Teeth = 95
DIMENSIONS :Pitch diameter = 576.17 mm , Type = C , Bore min. = 25 mm , Bore max. = 95 mm , H = 140 mm , L = 70 mm
